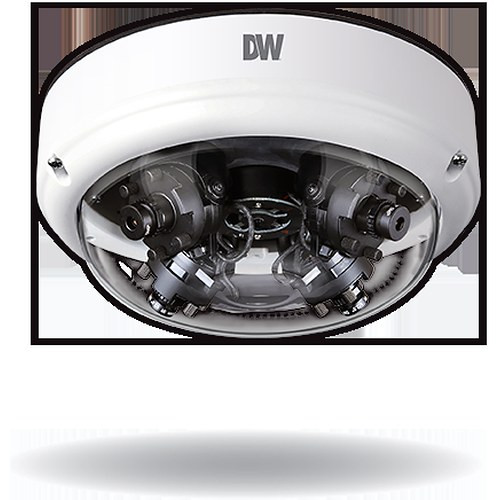

Digital Watchdog DWC-PVXLMOD4 4mm Lens Module
The Digital Watchdog DWC-PVXLMOD4 is a 4mm interchangeable lens module designed for modular surveillance camera platforms that require field-configurable optics. This accessory enables integrators to swap focal lengths on-site without replacing the entire camera body, reducing parts inventory and simplifying field repairs. The 4mm focal length delivers a wider field of view suitable for general-area monitoring, entrance hallways, and indoor perimeter coverage where medium-range perspective is needed.
Key Features
- 4mm Focal Length: Wide-angle perspective (~62° horizontal FOV typical for 1/3" sensors). Suited for lobby, corridor, and mid-range retail floor surveillance where broader scene capture matters.
- Gigabit Data Transmission: High-bandwidth optical path supports uncompressed or lightly compressed video feeds without bitrate bottlenecks. Critical for systems handling multiple simultaneous streams across modular bodies.
- Tool-Free Hot-Swap Design: Module attachment/detachment requires no screwdrivers or adapters. Reduces field installation time and enables rapid lens changes during initial positioning.
- Industrial-Grade Optical Housing: Durable lens barrel withstands typical warehouse, retail, and light-industrial vibration and handling. Sealed against dust ingress common in non-climate-controlled spaces.
- Modular System Compatibility: Works with Digital Watchdog camera bodies engineered for interchangeable lens modules, enabling a single camera platform to cover multiple focal-length requirements across a facility.
- Cost-Effective Field Reconfiguration: Deploy different FOV requirements from a single camera body SKU. Reduces long-lead procurement cycles when coverage gaps emerge post-installation.
The DWC-PVXLMOD4 is part of Digital Watchdog's modular optics ecosystem, allowing security teams and integrators to standardize on a single camera chassis and swap lenses as site requirements evolve. The 4mm focal length is the widest option in the lineup; pair it with longer-focal-length modules (8mm, 12mm, 16mm) to create a flexible lens library that covers everything from lobby overviews to hallway/retail-floor detail shots without inventory duplication.
Gigabit-class transmission ensures that video quality is not constrained by the optical interface — bandwidth is sufficient for HD and higher-resolution sensors within the modular platform. Integration with Digital Watchdog NVRs and management software (such as Digital Watchdog VMAX or compatible ONVIF endpoints) remains straightforward; lens module selection is transparent to the recording and VMS layer once the physical swap is complete.
This module is ideal for multi-camera deployments across facilities with mixed coverage needs. Instead of maintaining separate single-focal-length camera SKUs and managing supply chains for 3, 6, or 8 different part numbers, a single modular body + lens library approach reduces procurement overhead, accelerates field changes, and lowers total spare-parts cost. Integrators working high-volume retail, warehouse, or campus environments benefit most from this flexibility.
The DWC-PVXLMOD4 is sourced through established Digital Watchdog channel partners and carries manufacturer warranty coverage. For integrators evaluating modular camera strategies, verify that the target camera body (chassis SKU) explicitly supports this lens module; not all Digital Watchdog cameras feature hot-swappable optics. Consult the camera body datasheet for compatibility before ordering.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've spent considerable time deploying Digital Watchdog modular systems across warehouse and retail environments, and the DWC-PVXLMOD4 solves a real operational friction point: the need to change focal length mid-project without ripping out and re-running cable. The 4mm module is the wide-angle workhorse — it's what you reach for when you need to cover a large area from a single mount point, whether that's a warehouse floor overview or a retail showroom entrance. The Gigabit transmission path is transparent in operation, but it matters in dense installations; we've seen environments with 16+ modular cameras per NVR, and Gigabit avoids the bitrate pinch that can occur with slower optical interfaces. The trade-off is inventory: you now carry lenses instead of complete cameras, but that actually simplifies supply chain logistics and field swaps on systems where reliability and fast repairs matter.
Technical Highlights:
- 4mm Focal Length: Delivers approximately 60–65° horizontal field of view on standard 1/3" sensors (exact value depends on host camera sensor size). This is wide enough for general area monitoring but narrow enough to retain useful detail at 15–20 feet — good balance for indoor retail and lobby work.
- Gigabit Optical Interface: High-bandwidth modular link eliminates video compression artifacts that can arise on slower lens-to-body connections. Pairs well with H.264/H.265 compression at the NVR or camera body, not at the optics interface.
- Hot-Swap Mechanics: No tools, no alignment pins, no crimped connectors. In the field, a technician can swap from 4mm to 8mm in under 30 seconds once the camera is powered down. Useful for rapid repositioning during initial setup or post-incident focus adjustments.
- Sealed Optical Path: Industrial dust/debris sealing prevents lens fungus and internal fogging common in non-climate-controlled warehouses or outdoor-adjacent installations. Not IP-rated on its own, but the lens barrel resists typical warehouse grit.
Deployment Considerations:
- Verify camera body compatibility before purchase. Not all Digital Watchdog camera models support interchangeable modules; check the chassis datasheet for the specific SKU you plan to use. A mismatch wastes the module's cost and flexibility.
- The 4mm is the widest focal length in most Digital Watchdog modular lineups. If your site needs narrower FOV (8mm, 12mm, 16mm), ensure those modules are available in your region before committing to the platform.
- Hot-swap functionality requires the camera to be powered down during lens changes. Plan field swaps accordingly; don't attempt live lens swaps even though the mechanical design allows it — rapid power cycling stresses image sensor electronics.
- Gigabit transmission depends on clean optical alignment. If a module is dropped or the camera body lens mount is physically damaged, replace rather than attempt repair; realignment is not field-serviceable.
- Integration with third-party VMS platforms (Milestone, Genetec, ExacqVision) works if the host camera supports ONVIF or Digital Watchdog native drivers. Lens module selection has no VMS-level impact — it's a physical swap, not a firmware change.
The DWC-PVXLMOD4 is the right choice for integrators building multi-camera systems where flexibility in focal length is a priority and total spare-parts inventory needs to stay lean. It's particularly valuable in pre-design phases when exact FOV requirements aren't finalized; spec a modular body + 4mm module as the baseline, and add narrower lenses only to specific mount points as site-survey data confirms need. For more information on modular lens options and compatible camera bodies, see the Digital Watchdog catalog.
