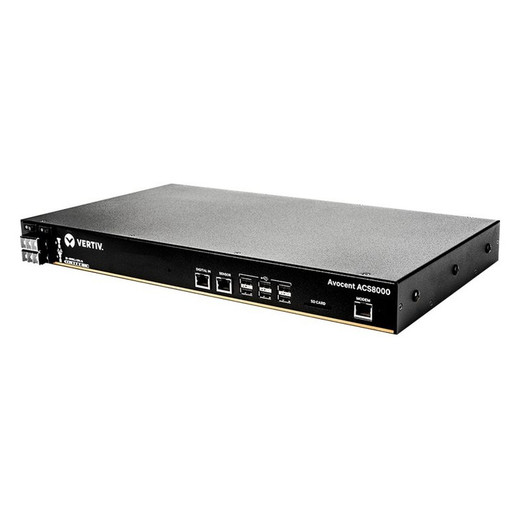

Vertiv ACS8048MDDC-400 48-Port Dual DC Console Server with Analog Modem
Overview
The Vertiv ACS8048MDDC-400 is a 48-port out-of-band console server built for data center and network infrastructure environments where you need reliable remote access to managed devices even when primary IP paths are down. With dual DC power inputs, an integrated analog modem, and a flexible 4-port network stack — two copper GbE and two fiber SFP — this unit is engineered for high-availability edge deployments where power redundancy and multiple access paths aren't optional. ACS8048MDDC-400 (often searched as ACS8048MDDC 400) fits squarely in the managed infrastructure category: it belongs in a rack alongside the switches, routers, and servers it monitors, not as an afterthought.
If your team manages a network equipment stack at a remote site, co-location, or hardened facility, out-of-band access is your safety net when in-band management fails. The ACS8048MDDC-400 keeps that safety net intact under dual-failure conditions — lost primary network and lost primary power — by combining analog modem fallback with dual DC feeds.
Key Features
- 48 Serial Console Ports: Manage up to 48 devices — routers, switches, servers, PDUs — from a single unit. Consolidating access to a 48-device rack edge through one console server eliminates the need for multiple smaller units and their associated management overhead.
- Dual DC Power Inputs: Two independent DC power supplies drawing up to 35W combined means a single PSU failure doesn't take down your out-of-band management plane. In DC-powered environments like telco central offices or carrier-edge facilities, this is load-bearing — a single-supply unit becomes your single point of failure at the worst possible moment.
- Integrated Analog Modem: When IP connectivity fails entirely, the onboard analog modem provides a POTS fallback path to reach the unit directly. This is the last-resort access method that matters most: if your WAN circuit is down and cellular isn't an option, POTS is still often alive at co-lo and carrier facilities.
- Cellular Access via External Router: The ACS8048MDDC-400 supports cellular connectivity through an external router, giving you a third access path beyond IP and POTS. Deploy a 4G/LTE router alongside the unit and you have out-of-band access even during fiber cuts — without paying for a built-in cellular modem you'd need to provision per-carrier anyway.
- Dual GbE + Dual Fiber SFP Network Interfaces: Four network ports — two 10/100/1000BASE-T copper and two 1Gb fiber SFP — let you connect to multiple network segments or aggregate links for resilience. The SFP ports are particularly useful in facilities where copper runs between the console server and the core switch exceed cabling distance limits, or where electrical isolation between segments is required.
- 8x USB 2.0 Ports: Eight USB 2.0 ports support external storage, USB-to-serial adapters, or cellular dongles depending on your configuration. In practice, this is where you extend the unit's connectivity or attach local storage for logging and configuration backup without needing a separate appliance.
- SD Card Slot: A full-size SD card slot provides local storage for configuration files, logs, and firmware images. Having onboard media means you can store a known-good config locally — useful for fast recovery when you're managing a site remotely and can't easily ship a replacement unit pre-staged.
- 35W Maximum Power Draw: At 35W peak across both DC inputs, the ACS8048MDDC-400 is easy to budget into a DC power shelf. Rack PDU calculations and DC plant sizing are simplified when a 48-port management device has a sub-40W ceiling — this won't meaningfully impact your power budget even in dense deployments.
Integration and Compatibility
The ACS8048MDDC-400 integrates into existing Vertiv console server infrastructure and is compatible with the Vertiv Avocent Management Platform for centralized multi-site console access management. The four-port network stack — 2x copper GbE and 2x fiber SFP — supports integration into segregated management VLANs, out-of-band management networks, and environments requiring physical layer separation between production and management traffic. The external cellular router support means you can pair this unit with a variety of 4G/LTE routers from your preferred carrier without being locked to a specific modem SKU. For environments requiring console server access to mixed serial and USB-attached devices, the combination of 48 serial ports and 8 USB ports handles most real-world rack configurations without needing supplemental hardware.
Frequently Asked Questions
Q: Does the ACS8048MDDC-400 support cellular connectivity directly?
A: Not natively. The ACS8048MDDC-400 supports cellular access via an external cellular router connected to one of its network interfaces — it does not have a built-in cellular modem. This gives you carrier flexibility but requires a separate router for cellular fallback.
Q: What type of power does the ACS8048MDDC-400 require?
A: The ACS8048MDDC-400 uses dual DC power inputs. It ships with two power supplies and draws a maximum of 35W. This makes it appropriate for DC-powered environments such as telco facilities, carrier-edge deployments, and co-location racks with DC power shelves.
Q: How many devices can I manage through the ACS8048MDDC-400?
A: Up to 48 devices via the serial console ports. Additionally, 8 USB 2.0 ports can support USB-attached devices or adapters, depending on configuration.
Q: What network interfaces does the ACS8048MDDC-400 provide?
A: Four network interfaces: two 10/100/1000BASE-T copper Ethernet ports and two 1Gb fiber SFP ports. This allows connection to multiple network segments or supports link redundancy configurations.
Q: Does the ACS8048MDDC-400 have local storage for configuration backup?
A: Yes. The unit includes one full-size SD card slot for local storage of configuration files, logs, and firmware images, in addition to the 8 USB 2.0 ports which can also support external storage devices.
Q: What is the fallback access method if IP connectivity is unavailable?
A: The ACS8048MDDC-400 includes an integrated analog modem for POTS-based fallback access when IP paths are down. A secondary out-of-band path via external cellular router is also supported, giving operators up to three independent access methods.
The spec that defines when to choose the ACS8048MDDC-400 over a simpler AC-powered console server is the dual DC input with analog modem fallback. I see this unit specified in telco central offices and carrier-edge deployments where DC power is the standard and POTS is still a live fallback — those environments don't give you AC, and they need a last-resort dial-in path that survives WAN failures. The ACS8048MDDC-400 is built for exactly that combination.
Technical Highlights:
- Dual DC Power Inputs: Two independent supplies at 35W max total — power redundancy is native, not an add-on option. A single PSU failure leaves out-of-band management fully intact.
- 4-Port Network Stack (2x GbE + 2x SFP): The fiber SFP ports let you tie into a management network switch over fiber without copper distance constraints or ground loop concerns — relevant in large co-lo facilities and multi-building campus deployments.
- 48 Serial Ports + 8 USB 2.0: A full rack of managed devices (48 serial) plus 8 USB ports for storage, cellular dongles, or USB-serial adapters gives you genuine flexibility without needing a secondary management appliance in the same rack.
Deployment Considerations:
- Cellular support requires an external router — budget for and pre-configure that router as part of the out-of-band stack, not as a post-deployment add. The ACS8048MDDC-400 itself provides the network port and management plane; the cellular path depends entirely on the external device.
- At 44.5mm depth is likely a height specification (1U = 44.45mm) — confirm rack unit count against your cabinet depth to avoid surprises during a dense installation. Verify physical dimensions from the Vertiv datasheet before ordering for shallow-depth cabinets.
The ACS8048MDDC-400 is the right call for a DC-powered carrier-edge or co-location deployment where you need 48-port serial access, analog modem fallback, and genuine power redundancy in a single 1U footprint — not for a standard AC enterprise server room where a simpler AC-powered unit covers the use case at lower cost.
