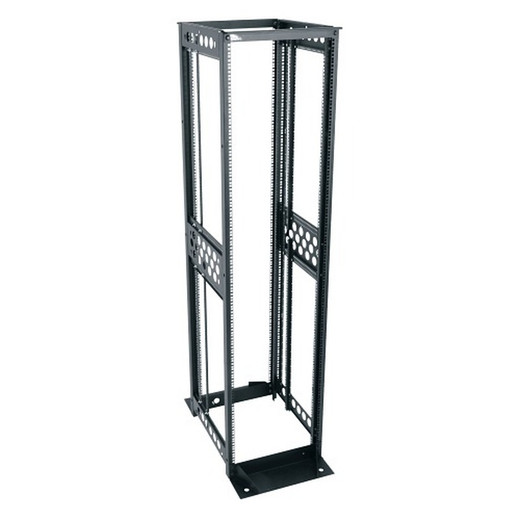

Middle Atlantic 45 Space (78 3/4IN. ) 30IN. Deep Four Post Open Frame Rack Black - R4CN-4530B

Middle Atlantic R4CN-4530B Four Post Open Frame Rack Black Finish Cage-nut Rail

Overview

The Middle Atlantic R4CN-4530B is a 45U, 30-inch deep, four-post open frame rack designed for mounting IT and AV equipment where a full enclosure is not required. It provides robust support for servers, network switches, and other rack-mountable gear in data centers, network closets, or staging environments. The cage nut rail system ensures secure attachment of standard 19-inch rack-mount equipment. This rack is TAA compliant and manufactured in the USA, suitable for government and commercial deployments.

Compatibility

This rack is designed for standard 19-inch wide, rack-mountable equipment. The 45U (78.75 inches of usable vertical space) and 30-inch usable depth accommodate a wide range of devices, including servers, network switches, patch panels, and AV components. Its cage nut rail system is compatible with most standard rack-mount hardware. This rack is suitable for housing equipment from various manufacturers, including IP cameras, NVRs, network switches, and servers from brands like Axis, Hikvision, Hanwha, Dell, HPE, Cisco, and Ubiquiti, provided they adhere to the 19-inch EIA-310 mounting standard.

Installation Notes

The R4CN-4530B has a static weight capacity of 2000 lbs (907.2 kg) and a UL load capacity of 800 lbs (362.9 kg). Ensure the installation environment can support the rack's total weight when fully loaded. The rack requires assembly. Standard tools are needed for assembly and equipment mounting. For optimal stability, it is recommended to secure the rack to the floor or a stable surface, especially when loaded to its maximum capacity.
