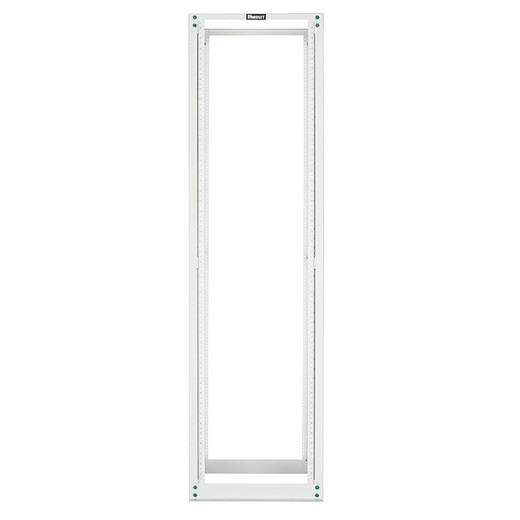

Panduit R4P42WH 45RU 4-Post Open Frame Rack
The Panduit R4P42WH delivers the structural integrity of a full enclosure with the airflow and accessibility of an open frame—a critical balance for high-density server, storage, and network infrastructure deployments. This 45-rack-unit frame combines 2,500-pound UL-listed load capacity with #12-24 threaded mounting rails across a 41.5-inch adjustable depth, addressing the mounting requirements of enterprise servers, blade chassis, UPS systems, and patch panels in a single unified structure. Built for datacenter retrofits, colocation builds, and AV equipment rooms where thermal management and rapid service access outweigh physical security concerns, the R4P42WH eliminates the cable-access restrictions and thermal bottlenecks common to enclosed cabinets while maintaining precise EIA-310-E rail alignment for standards-compliant equipment mounting.
Key Features
- 2,500 lb UL 2416 Load Capacity: Welded steel construction and integrated bracing tested to support fully loaded blade servers, battery banks, and enterprise storage arrays
- #12-24 Threaded Equipment Rails: Standard EIA universal mounting holes across the full 45RU height eliminate cage nuts and speed installation of servers, switches, and patch panels
- 41.5" Adjustable Depth Rails: Accommodates deep enterprise servers (HP ProLiant, Dell PowerEdge), UPS systems, and network equipment with front-to-back mounting flexibility
- 23.25" Overall Width with 19" EIA Mount: Standard rack width fits dual vertical cable managers, PDU strips, and side-mount accessories without interference
- Powder-Coated White Finish: Corrosion-resistant coating suitable for controlled-environment datacenters and equipment rooms where aesthetic consistency matters
- Printed RU Numbering: Front and rear rail markings simplify equipment layout planning and documentation during installation and maintenance
- EIA/ECA-310-E Compliant Geometry: Guaranteed compatibility with server rail kits, shelf kits, and cable-management accessories from any manufacturer
- Panduit Cable Manager Integration: Pre-engineered for PatchRunner, NetRunner, and vertical cable management systems designed specifically for this frame
The R4P42WH's welded steel frame architecture addresses the structural failure mode common to bolt-together racks under sustained static load. The 23.25-inch outer width and 19-inch EIA mounting width provide the clearance required for vertical cable managers on both sides while maintaining aisle-space efficiency in raised-floor datacenters. The #12-24 threaded rails eliminate the cage-nut problem—equipment mounts directly with standard rack screws, cutting installation time per device from 8-12 minutes down to 2-3 minutes for 42-port patch panels, 1RU switches, and shelf-mounted equipment. The 45RU height matches the physical ceiling constraints in datacenters with 8-foot slab-to-slab dimensions while maximizing usable rack units compared to 42RU or 48RU alternatives. The 41.5-inch rail depth range supports modern enterprise servers with depths up to 36 inches plus the additional clearance required for cable bend radius, power cord routing, and rear-access maintenance without equipment overhang. The powder-coated finish meets the corrosion resistance requirements of ASHRAE-compliant datacenters operating at recommended 64-80°F / 40-60% RH conditions, and the white color integrates with facility aesthetics where racks are visible in NOC viewing areas or multi-tenant colocation spaces.
This rack solves the thermal density problem inherent to enclosed cabinets in high-wattage deployments. Open-frame geometry allows unrestricted airflow across front-to-back and side-to-side planes, eliminating the need for auxiliary fans, ducting, or cabinet exhaust systems when integrated with CRAC or in-row cooling infrastructure. The structure supports both front-mount and rear-mount configurations—install PDUs on rear rails to keep power distribution behind servers, or front-mount UPS systems for maintenance access without disturbing production equipment. The printed RU numbering on both front and rear rails ensures equipment layout documentation matches as-built configurations, critical for change-management compliance in ITIL and SOC-audited environments. The frame ships as a complete assembly ready for floor mounting via included leveling feet—typical installation time is 20-30 minutes for a two-person crew to position, level, and anchor the frame to raised-floor stringers or slab-mounted seismic brackets. Pair with Panduit vertical cable managers (WMPV, WMPVS series) for structured fiber and copper routing, horizontal cable managers (WMPF series) for rear-of-rack service loops, and modular PDU systems for monitored power distribution. The rack supports both grounded and isolated ground configurations per NEC Article 250, with bonding provisions integrated into the frame structure for TIA-942 datacenter grounding compliance.
UL 2416 listing covers structural integrity, load distribution, and stability testing per defined test protocols—this certification is required for insurance compliance in commercial datacenters and colocation facilities where rack failure could result in cascading equipment damage. EIA/ECA-310-E compliance guarantees that any server, switch, or patch panel with standard 19-inch rack ears will mount without modification or adapter brackets. RoHS compliance addresses EU import requirements and US federal procurement standards that restrict lead, mercury, and cadmium in electrical infrastructure. The R4P42WH is the structural foundation for high-availability infrastructure deployments where equipment density, thermal performance, and rapid service access determine uptime—built for integrators installing multi-rack server clusters, core network switches, and storage arrays where frame rigidity and mounting precision are non-negotiable.
