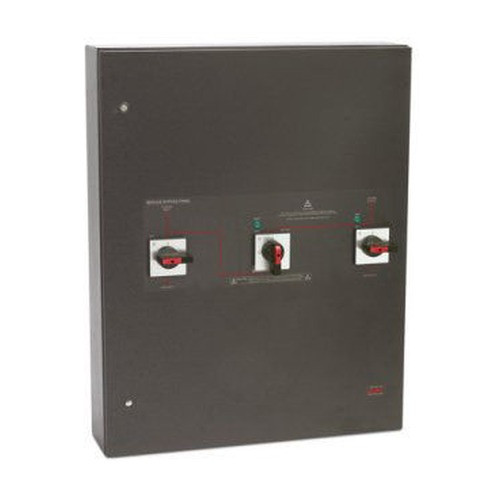

APC by Schneider Electric SBP40KFC1M1 40kW 208V Single-Module Service Bypass Panel

Overview

The SBP40KFC1M1 is a 40 kW, 208 V service bypass panel designed to keep critical loads energized while the upstream UPS undergoes maintenance or replacement. Rather than powering down servers, storage arrays, or security infrastructure during a service event, this panel routes utility power directly to the load — meaning a UPS swap or internal repair does not become a downtime event. For data centers, operations centers, and critical infrastructure rooms running at 208 V three-phase, a service bypass panel at this power class is an operational requirement, not an optional add-on.

The single-module, single-main-service configuration of the SBP40KFC1M1 is purpose-matched to environments running a single high-capacity UPS module at 40 kW. The panel is sized for the load, not oversized — which matters when rack space and floor space are constrained and you are not paying for capacity you will never use. Explore the full APC by Schneider Electric power and UPS catalog to see complementary UPS modules and distribution equipment.

Key Features

• 40 kW Power Capacity: Supports full-load bypass at 40 kW continuous — enough headroom to cover a densely populated equipment room or a single-row data hall without derating. You are not squeezing the panel to its limit under normal operating conditions.
• 208 V Three-Phase Compatibility: Wired for 208 V, the standard three-phase distribution voltage in North American commercial data centers and equipment rooms. No step-down transformer required when paired with the matching UPS in a standard 208 V distribution architecture.
• Single-Module Configuration: The 1-module design aligns directly with single-UPS-module deployments. Pairing this panel with a multi-module UPS frame would require a different bypass panel model — this one is built for a clean 1:1 relationship with a single 40 kW module, keeping the single-line diagram simple and the failure domain narrow.
• 1 Main Service Input: A single main service input simplifies upstream wiring and reduces the number of overcurrent protection points. In a straightforward utility-to-bypass-to-UPS topology, this is the correct configuration — adding a second main service is only warranted in dual-feed or generator-backed architectures where redundancy at the input is required.
• Maintenance Bypass Function: The core function — transferring load from UPS output to utility bypass — allows field technicians to service or replace the UPS module without interrupting connected equipment. For 24/7 operations where planned downtime is not acceptable, this capability is what justifies the panel's place in the architecture.
• Commercial-Grade Construction: Built to APC by Schneider Electric's standards for critical power infrastructure, the SBP40KFC1M1 is commercial-grade equipment intended for permanent installation in controlled equipment rooms, not temporary or light-duty use.

Integration and Compatibility

The SBP40KFC1M1 is designed for use with APC by Schneider Electric UPS systems in the Symmetra or Galaxy families rated at 40 kW / 208 V — verify the specific UPS model compatibility against APC's compatibility matrix before procurement, as bypass panel pairing is model-specific. The 208 V rating is consistent with standard North American three-phase power distribution in data center and critical infrastructure environments. If your facility runs 480 V distribution with step-down transformers at the rack level, this panel is not the correct selection — confirm your UPS input voltage before ordering.

For facilities planning a complete power and UPS infrastructure build-out, the bypass panel should be specified alongside the UPS module, static transfer switches, and PDUs at the design stage — retrofitting bypass capability after installation typically requires additional conduit runs and may require a temporary shutdown that the bypass panel itself is meant to prevent. Consult the power planning resources for load sizing and redundancy architecture guidance.

Frequently Asked Questions

Q: What UPS systems is the SBP40KFC1M1 compatible with?

A: The SBP40KFC1M1 is designed for APC by Schneider Electric UPS modules rated at 40 kW and 208 V. Confirm the specific UPS model against APC's official compatibility documentation before ordering — bypass panel pairing is model-specific and cannot be assumed across the product line.

Q: Does the SBP40KFC1M1 require a separate enclosure or is it a standalone unit?

A: Based on available evidence, the SBP40KFC1M1 is a standalone service bypass panel. Verify mounting and installation requirements with the APC product documentation for your specific deployment configuration.

Q: Can the SBP40KFC1M1 be used with a 480V distribution system?

A: No. The SBP40KFC1M1 is rated for 208 V. It is not compatible with 480 V distribution systems. If your facility runs 480 V, you will need a different bypass panel model rated for that voltage.
