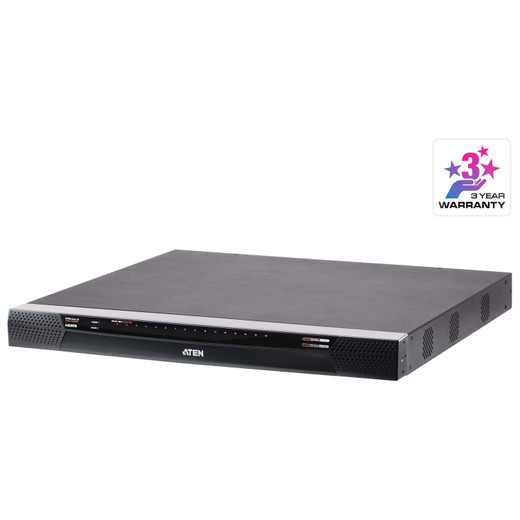

ATEN KN4016VB Cat5 KVM Switch
Overview
The ATEN KN4016VB is a 16-port Cat5 KVM switch designed for data center and server room environments. It allows up to 4 remote users to simultaneously access and control servers via Cat5 cabling, with an additional local console port. This unit supports cascade connections to manage up to 512 servers, consolidating control into a single interface. The KN4016VB is suitable for deployments requiring efficient, remote management of multiple servers from a central point.
Compatibility
This KVM switch supports PS/2 and USB keyboard and mouse connections, offering broad compatibility with most server types. It is designed to integrate into existing infrastructure where Cat5 cabling is utilized for KVM extension. The KN4016VB is part of the ATEN KVM over IP switch family, enabling centralized management across diverse server hardware.
Installation Notes
The KN4016VB operates within a humidity range of 0-80% RH (non-condensing). It accepts 100-240V~ input power via two IEC C14 connectors. The unit is designed for rack mounting. Port selection is managed via front panel pushbuttons, hotkeys, or the graphical user interface (GUI). The scan interval for monitoring connected servers can be configured from 1 to 255 seconds.
