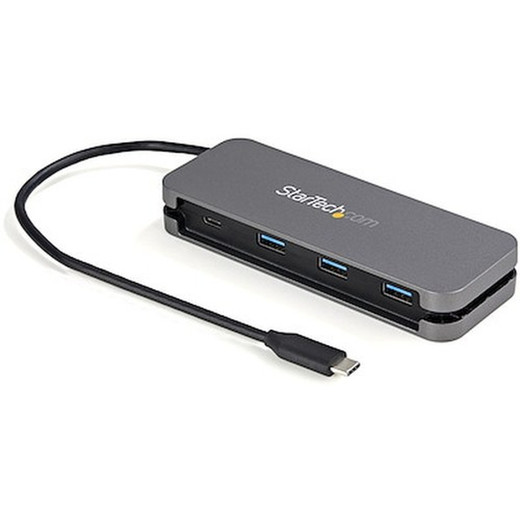

StarTech HB30CM3A1CB 4-Port USB 3.2 Gen 1 Hub (3x USB-A / 1x USB-C)

Overview

The StarTech HB30CM3A1CB is a compact, bus-powered USB-C hub that adds four USB 3.2 Gen 1 ports — three USB-A and one USB-C — to any host system with a USB-C port. Running at 5Gbps per the USB 3.2 Gen 1 specification, it handles high-speed peripheral connections without requiring a separate power brick. At 2.6 oz and just 5.3 inches long, it sits flat on a desk, mounts in a rack-adjacent tray, or rides along on a mobile workstation without adding meaningful bulk. The 11.2-inch integrated host cable gives enough reach to connect to a docked laptop or tower port without the hub dangling directly off the chassis.

For integrators building out security workstations, field deployment kits, or IP camera configuration benches, the HB30CM3A1CB provides a reliable way to attach dongles, provisioning drives, authentication tokens, and configuration peripherals simultaneously — all from a single USB-C host port.

Key Features

• 5Gbps USB 3.2 Gen 1 throughput: At 5Gbps, firmware flashing a camera, pulling video clips off a USB storage device, and reading a configuration dongle concurrently won't throttle each other the way a USB 2.0 hub would. You get roughly 10x the raw bandwidth of a standard 2.0 hub, which matters when you're moving multi-gigabyte firmware packages or video evidence files.
• 3x USB-A + 1x USB-C port layout: The three Type-A ports cover the legacy dongles, flash drives, and barcode scanners that still dominate field kits. The single USB-C downstream port handles newer peripherals or daisy-chain scenarios — a practical split that matches most real-world peripheral mixes without forcing adapters.
• Bus-powered, 15W shared pool: No AC adapter needed. The hub draws power entirely from the host USB-C port, distributing up to 15W across all four ports. That covers low-draw peripherals like mice, keyboards, flash drives, and configuration dongles cleanly. Note: power-hungry devices like external spinning HDDs or phone fast-charge may hit the ceiling — plan accordingly.
• 11.2-inch integrated host cable: Long enough to clear port congestion on a laptop or NUC without the hub dangling, short enough that cable management stays clean on a rack shelf or desk. Fixed cable eliminates the loose-connector reliability issues you get with detachable-cable hubs in high-movement environments.
• Compact 5.3 × 2.0 × 0.8-inch footprint: Fits on a standard 1U rack accessory shelf alongside other small peripherals. The 2.6 oz weight means it won't torque lightweight mounting points.
• 0°C to 70°C operating range: Covers normal indoor IT and security operations environments — server rooms, control rooms, integration benches — without thermal derating concerns under normal load.
• 2-year manufacturer warranty: Commercial-grade coverage appropriate for equipment that stays deployed on a workstation rather than rotating through field kits.

Integration and Compatibility

The HB30CM3A1CB connects to any host system with a USB-C port supporting USB 3.2 Gen 1 or higher — laptops, NUCs, mini PCs, or workstations. It is backward-compatible with USB 2.0 and USB 1.1 hosts and peripherals, though downstream speeds will cap at the connected device's maximum supported rate. No drivers are required on modern Windows, macOS, or Linux systems; the hub enumerates as a standard USB hub device.

For security integration workflows, this hub pairs naturally with IP camera configuration laptops, NVR provisioning stations, and access control programming benches where multiple USB peripherals — card readers, license dongles, USB-to-serial adapters, flash drives — need to be live simultaneously. Pair it with a USB accessory kit for full bench provisioning capability.

If you're building out a multi-camera deployment kit, consider reviewing a security camera selection guide to match the right cameras to this type of configuration workflow. For workstations feeding into larger surveillance infrastructure, network video recorders and PoE switches are the natural upstream components to plan around.

Frequently Asked Questions

Q: Does the HB30CM3A1CB require a power adapter?

A: No. It is fully bus-powered, drawing all power from the host USB-C port. It distributes up to 15W shared across all four downstream ports. No separate AC adapter is needed.

Q: What is the data transfer speed on the HB30CM3A1CB?

A: All four ports operate at USB 3.2 Gen 1 speeds, which means a 5Gbps theoretical maximum. Actual throughput depends on connected device capabilities and concurrent usage across ports.

Q: Can I connect USB-A peripherals to the HB30CM3A1CB from a USB-C laptop?

A: Yes. That is the primary use case. Three of the four ports are USB-A, so existing USB-A dongles, drives, and peripherals connect directly without adapters.

Q: What is the warranty on the HB30CM3A1CB?

A: StarTech covers the HB30CM3A1CB with a 2-year manufacturer warranty.

Q: Will the HB30CM3A1CB power an external hard drive?

A: Possibly, but with caveats. The hub shares 15W across all four ports. Bus-powered spinning hard drives can draw 4.5W or more at peak. If other ports are loaded simultaneously, you may see intermittent disconnects. SSDs and flash drives are more reliable in this configuration.

Q: What are the operating temperature limits for the HB30CM3A1CB?

A: The operating range is 0°C to 70°C (32°F to 158°F), with storage rated from -10°C to 55°C. It is designed for standard indoor environments, not harsh outdoor or industrial enclosures.

Karl Wilson

The spec that shapes how I recommend the HB30CM3A1CB is the 15W shared power budget across all four ports. That number is the real constraint in any deployment decision — the 5Gbps USB 3.2 Gen 1 bandwidth is rarely the bottleneck on a security provisioning bench, but running four simultaneous peripherals close to that 15W ceiling absolutely is. Know your peripheral draw before you commit.

Technical Highlights:

• 5Gbps USB 3.2 Gen 1: Firmware pushes, video clip transfers, and dongle reads run concurrently without the throughput collapse you see on USB 2.0 hubs — roughly 10x the bandwidth headroom for multi-device provisioning workflows.
• 3x USB-A + 1x USB-C layout: Matches the typical field kit ratio — most legacy peripherals are still Type-A. The downstream USB-C port covers newer storage or daisy-chain needs without forcing an adapter into the chain.
• 11.2-inch fixed host cable: The fixed cable is a deliberate reliability choice. Detachable-cable hubs develop intermittent connection issues in high-movement field environments. At 11.2 inches, it reaches a tower or docked laptop port without excess slack.

Deployment Considerations:

• Bus-powered operation is clean for low-draw peripherals, but plan your port assignments. If you're running a USB-to-serial adapter, a license dongle, a flash drive, and a USB card reader simultaneously, verify combined draw stays under 15W — USB-to-serial adapters and active card readers can each pull 1–2W, but powered hubs on the downstream USB-C port could stress the budget faster than expected.
• Operating temperature tops out at 70°C — fine for a climate-controlled control room or server room, but not rated for outdoor enclosures or industrial panel installations. Keep it indoors.

The HB30CM3A1CB earns its place on a security integrator's camera provisioning laptop or NVR configuration bench — anywhere you need a stable, no-driver USB expansion point that handles a dongle, a flash drive, and a configuration adapter simultaneously without carrying a power brick into the field.
