Unitech 3Y Warr 5D Repair Ground NO - EA630-HALFRMDG-Z3-NB

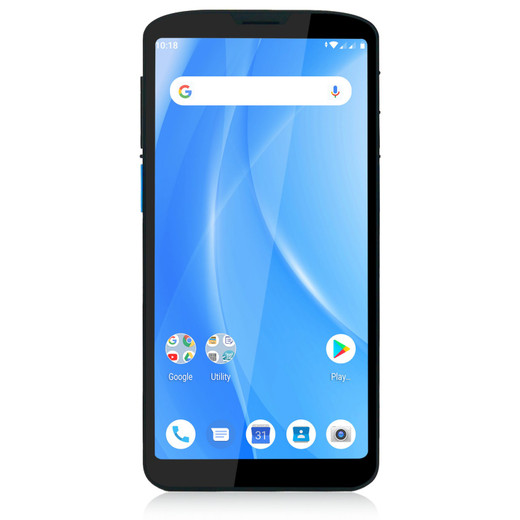

Unitech EA630-HALFRMDG-Z3-NB Handheld Mobile Computer Scanner

Overview

The EA630-HALFRMDG-Z3-NB is a 6-inch rugged handheld mobile computer with integrated 2D barcode imaging, built for warehouse, logistics, and field-service deployments where you need a single device to capture both barcodes and operational data without swapping between a scanner and a tablet. The device runs Android 10 (GMS certified, AER certified through June 2024) on a Snapdragon 636 processor with 3GB RAM and 32GB flash — enough to handle enterprise WMS applications, real-time inventory updates, and offline transaction queuing. IP65 rating and MIL-STD-810G compliance mean daily drops and wet environments (not submersion) won't kill it. This unit ships with a 3-year warranty covering ground repair with no onsite option.

Compatibility

The EA630-HALFRMDG-Z3-NB integrates with enterprise resource planning (ERP) and warehouse management systems (WMS) via USB 3.1 Type-C, Ethernet through the cradle (USB-Host mode), Bluetooth 5, and 802.11a/b/g/n/ac WiFi on both 2.4GHz and 5GHz bands. Dual nano SIM slots support cellular failover. MicroSD expansion to 256GB allows offline image and transaction storage. The device pairs with existing enterprise mobile device management (MDM) frameworks supporting Android Enterprise and AER (Android Enterprise Recommended) compliance. HF/NFC (13.56MHz) and optional UHF RFID capabilities (via separate gun-grip attachment, RG630) extend asset-tracking workflows beyond barcodes.

Installation Notes

Mount the device via USB cradle with integrated charging and Ethernet connectivity — no separate power supply required. The 6-inch, 18:9 Full-HD display (2160 x 1080, 450 nits) and Gorilla Glass 6 with 5-point capacitive touch are glove-compatible and wet-resistant, critical for cold-chain and wet-dock environments. Five programmable buttons plus dual scan buttons provide tactile navigation without screen interaction. 4000mAh Li-polymer battery (3.85V) delivers full-shift runtime on typical enterprise workflows; configure WiFi/Bluetooth sleep policies to extend life during low-use periods. Audio includes dual noise-cancelling microphones and a 95dB speaker — audible in high-noise areas without cranking volume to battery-drain levels.
