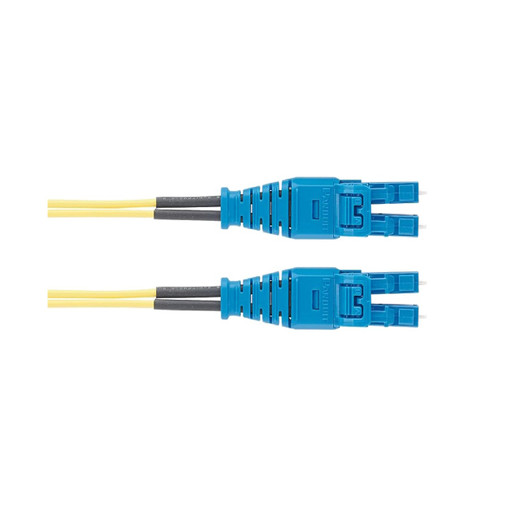

Panduit F92ELQ1Q1SNM003 Opti-Core OS2 Single-Mode LC Duplex Fiber Patch Cord

The Panduit F92ELQ1Q1SNM003 is a 3-meter OS2 single-mode duplex fiber patch cord engineered for high-bandwidth, low-loss interconnection in enterprise data centers, telecom rooms, and structured cabling deployments. Built on Panduit's Opti-Core platform with push-pull LC duplex connectors on both ends, this jumper delivers reliable 9/125μm single-mode performance over a slim 1.6mm LSZH jacket that meets strict European fire-safety mandates. Standard insertion loss and TIA/IEC compliance make it a drop-in solution for 10G/40G/100G optical links, SAN fabrics, and backbone interconnects where precision mating and consistent attenuation are non-negotiable.

Key Features

• OS2 single-mode fiber (9/125μm) rated for distances up to 10km at 10G, 40km+ for lower-rate protocols
• Push-pull LC duplex connectors (both ends) for tool-free insertion/removal in high-density patch panels
• 1.6mm LSZH cable jacket minimizes toxic smoke and corrosive halogen emissions during fire—required in occupied spaces across EU and many municipal codes
• Yellow jacket color-coding per TIA-598-C single-mode convention simplifies field identification and polarity management
• Standard insertion loss performance: ≤0.35 dB typical, ensuring budget headroom for long-haul or multi-span links
• Factory-terminated and tested to ISO/IEC 11801, TIA-568-C.3, and FOCIS-3/10 endface geometry standards
• 3-meter (9.84 ft) length bridges rack-to-rack or intra-rack connections without excess slack that invites cable-management problems

Single-mode OS2 fiber remains the backbone of modern data-center and campus LAN infrastructure because it supports multi-gigabit and multi-terabit aggregate throughput with near-zero chromatic dispersion. The F92ELQ1Q1SNM003 uses 9-micron core fiber encased in a low-profile 1.6mm duplex cable, making it ideal for congested patch-panel environments where every millimeter of bend radius and cable diameter matters. The push-pull LC housing is keyed to prevent accidental cross-connects and requires only thumb pressure to seat or release—no special tools, no risk of damaging the ferrule. Standard insertion loss (typically ≤0.35 dB per mated pair) means you retain optical power budget for longer runs, additional connectors, or future splices. The LSZH jacket compound meets IEC 60332-1 and IEC 61034 flammability and smoke-density requirements, a hard requirement in European installations and increasingly common in North American hospitals, airports, and high-rise commercial buildings where occupant safety during fire is paramount.

Deploy the F92ELQ1Q1SNM003 anywhere you need deterministic, low-latency optical connectivity: main distribution area (MDA) to horizontal distribution area (HDA) backbone links, equipment-area interconnects between fiber enclosures and active switches, or desk-to-wall-outlet drops in fiber-to-the-desk (FTTD) builds. The 3-meter length is long enough to span adjacent racks or cross a small telecom room without coiling excess cable, yet short enough to avoid the signal-integrity and cable-management headaches that come with over-provisioned jumper lengths. Panduit's Opti-Core ecosystem is designed for mix-and-match compatibility with pre-terminated cassettes, breakout modules, and MPO trunk assemblies, so you can scale from a single rack to a multi-building campus without re-certifying your patch-cord stock. LC duplex remains the de facto standard for 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 optics, ensuring this jumper will mate cleanly with transceivers from Cisco, Juniper, Arista, Dell, HPE, and every other major switching vendor.

Compliant with ISO/IEC 11801 Ed. 2.2, TIA-568-C.3, and the FOCIS-3 (LC) and FOCIS-10 (duplex LC) connector endface and alignment specifications, the F92ELQ1Q1SNM003 ships with factory inspection reports and meets or exceeds the 0.35 dB insertion-loss target required by structured cabling standards. The yellow LSZH jacket not only satisfies European CPR (Construction Products Regulation) Euroclass requirements but also simplifies polarity management when you're running mixed single-mode and multimode infrastructures—yellow is universally recognized as single-mode per TIA-598-C, reducing the chance of accidental mode mismatch that would otherwise force a truck roll and re-termination. For integrators managing dozens or hundreds of fiber links per site, that color-coding and push-pull ergonomic design translate directly into faster installs, fewer field failures, and lower long-term maintenance costs.
