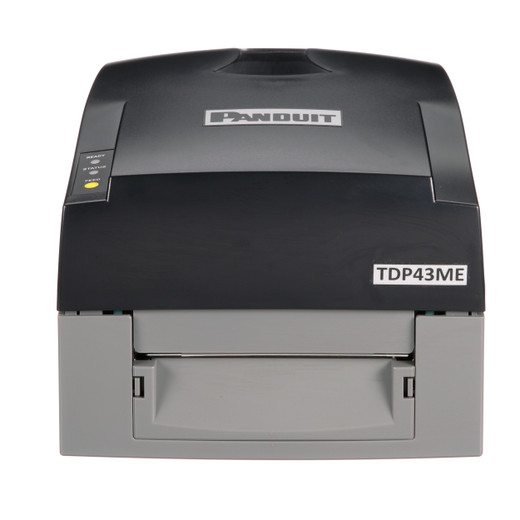

Panduit TDP43ME/E-KITNL 300 DPI Thermal Printer Kit

Panduit TDP43ME/E-KITNL Desktop Thermal Transfer Printer Kit

The Panduit TDP43ME/E-KITNL is a professional-grade thermal transfer printer engineered for high-volume cable, wire, and component identification in commercial security, data center, and industrial installations. Delivering 300 DPI resolution at print speeds up to 101.6 mm per second, this desktop system handles labels, tags, and continuous ribbons up to 4 inches wide—covering everything from individual wire markers to large equipment nameplates. The international kit ships with region-specific power adapters for Europe, UK, Switzerland, and Japan, Easy-Mark Plus labeling software, protective carrying case, and initial ribbon supply, providing a complete portable labeling solution for multi-site deployments, field service operations, and integrators working across international markets.

Key Features

• 300 DPI thermal transfer resolution produces crisp text down to 6-point type and high-density barcodes (Code 39, Code 128, QR, Data Matrix)
• Print speed up to 101.6 mm/sec (4 inches/sec) reduces labeling time on large cable pulls, equipment inventories, and rack buildouts
• 4-inch (101.6 mm) maximum media width accommodates wide-format faceplates, rack labels, equipment nameplates, and industrial tags
• Multi-region power supply with EuroPlug adapter plus UK (BS 1363), Swiss (SEV 1011), and Japan (JIS C 8303) power cords for international deployment
• Easy-Mark Plus software supports serialization, asset tagging, batch printing, and data import from Excel/CSV for large-scale labeling jobs
• Includes TDP43ME-RS roll support and TDP43ME-CASE protective case for on-site labeling and secure transport between job sites
• USB 2.0 connectivity with included cable—no network configuration, VLAN tagging, or firewall exceptions required
• Ships with RMEH4BL black hybrid ribbon for immediate out-of-box printing on vinyl, polyester, and nylon label stock without consumable swaps

The 300 DPI print engine delivers the resolution required for professional cable identification in structured cabling and industrial control environments where legibility and barcode scanability are non-negotiable. Unlike 203 DPI printers that struggle with small-point type and high-density symbologies, the TDP43ME produces legible 6-point text and tight barcode encoding—critical when labeling individual conductors in 48-port patch panels, serializing hundreds of camera cable runs in surveillance installations, or marking wire bundles in electrical panels where space constraints limit label real estate. The thermal transfer method bonds pigment from ribbon to label substrate under heat and pressure, creating marks that resist UV fade, chemical exposure, solvent cleaning, and abrasion far better than direct thermal alternatives that darken under heat or fade within months of outdoor exposure. Print speed of 101.6 mm per second means a full sheet of 50 wire markers prints in under 10 seconds, and a 100-foot continuous ribbon run completes in under 30 seconds—eliminating the bottleneck that occurs when hand-labeling large installations or waiting for slow 50 mm/sec printers to finish batch jobs.

The 4-inch media width supports Panduit's full line of label products—from 0.19-inch LS8E wire markers through 4-inch S100X rack and panel tags—without requiring a second wide-format printer for larger identification jobs. This eliminates the dual-printer workflows common in large installations where integrators use a compact unit for cable markers but must switch to a different platform for equipment labels, patch panel strips, or electrical panel directories. Continuous ribbon stock maximizes material utilization by eliminating the pre-cut gaps and edge waste inherent in die-cut label rolls; for jobs requiring hundreds of sequential wire markers or custom-length cable wraps, continuous media can reduce consumable costs by 20–30% compared to pre-sized label sheets. The printer's media auto-detect feature senses label dimensions and adjusts print alignment automatically when switching between different Panduit label families, preventing the trial-and-error test prints and manual offset adjustments that waste material when changing from wire markers to equipment tags mid-job.

This international kit version addresses the power and regulatory requirements for integrators working across EMEA, APAC, and hybrid regions, or deploying equipment to multinational client sites with varying electrical standards. The AC adapter ships with four detachable power cords: Type C EuroPlug (continental Europe), Type G (United Kingdom), Type J (Switzerland), and Type A JIS C 8303 (Japan). Voltage auto-sensing across 100–240V at 50/60 Hz eliminates the need for separate transformer units, external voltage converters, or region-specific printer SKUs when deploying labeling equipment to branch offices or rotating job sites across different countries. For service providers managing installations in multiple countries—such as data center operators with facilities in Frankfurt, London, and Tokyo—a single printer model standardizes consumable inventory, driver deployment, and technician training instead of maintaining separate equipment pools per region.

Easy-Mark Plus software integrates with Panduit's label part-number database, automatically configuring print layouts, margins, and rotation to match the loaded media type and preventing the alignment errors, edge clipping, and text overflow that occur when manually setting label dimensions in generic design software. The software supports serialized printing with auto-increment fields (essential for asset tagging and cable numbering), CSV import for batch jobs driven by cable schedules or equipment inventories, and pre-built templates for common identification tasks—eliminating the layout design work required when labeling standard rack configurations, patch panels, or wire runs. For integrators working from CAD drawings or project documentation in Excel format, the CSV import feature allows direct ingestion of cable IDs, equipment names, and location codes without manual re-typing, reducing data entry errors and setup time on jobs with hundreds or thousands of unique labels.

The included TDP43ME-CASE provides padded protection for the printer body, roll support assembly, and ribbon supply during transport—essential for field service technicians rotating between job sites, contractors staging equipment in vehicle storage, or integrators shipping printers to temporary installation locations. The case prevents the mechanical shock and vibration damage common when transporting desktop printers in tool bags or vehicle cargo areas without dedicated protection, and keeps the printer, cables, and consumables organized as a complete kit rather than as loose components that separate during transit. The TDP43ME-RS roll support bracket stabilizes larger label rolls (up to 8-inch outer diameter) and maintains proper tension to prevent edge skew, ribbon wrinkles, and print misalignment during long unattended runs—common failure modes when printing hundreds of labels from large-format rolls without external support.

USB 2.0 connectivity simplifies driver installation and eliminates the IP addressing, DHCP reservation, VLAN tagging, and firewall exception requests required for networked printers in enterprise IT environments where integrators lack admin access to configure network-attached devices. The printer appears as a local USB device, installs drivers via Windows Plug and Play, and prints without requiring coordination with the client's IT department—critical for security integrators working in environments with strict network access policies or data center operators prohibited from adding devices to production networks. The included USB cable provides immediate out-of-box connectivity without requiring the integrator to source compatible cabling or verify USB-A vs. USB-B connector types.

RoHS compliance ensures the printer meets European Union Directive 2011/65/EU restrictions on lead, mercury, cadmium, hexavalent chromium, and flame retardants—a mandatory requirement for equipment deployed in EU member states or sold to multinational clients with global environmental procurement standards that prohibit non-compliant devices regardless of deployment region. The hybrid ribbon (RMEH4BL) included in the kit prints on vinyl, polyester, and nylon label materials without changing consumables, covering indoor cable markers (vinyl for plenum-rated low-voltage cabling), outdoor equipment tags (polyester for UV and weather resistance), and high-temperature wire sleeves (nylon for engine rooms and industrial heat environments) from a single ribbon roll. For integrators running mixed-media labeling jobs—such as rack labels, cable wraps, equipment nameplates, and asset tags in a single data center buildout—the TDP43ME eliminates the consumable swaps, printer cleaning cycles, and test prints required when switching between incompatible ribbon and label combinations, maintaining continuous productivity across different identification tasks within the same project.

The printer's compatibility with Panduit's LS8E, S100X, M, and T series label families provides a consistent labeling platform from low-voltage security installations (access control panels, camera cable runs, intrusion detection wiring) through industrial 480V three-phase power distribution (motor control centers, switchgear, transformer identification), ensuring uniform identification standards, font consistency, and barcode formatting across an entire facility rather than the mixed-format appearance that results from using multiple printer brands or hand-labeling portions of an installation. Cross-reference compatibility with Brady I3300-300-C-EU provides a migration path for integrators standardizing on Panduit identification systems or replacing aging Brady equipment while maintaining the same 300 DPI print quality and 4-inch media width capabilities in existing workflows.
