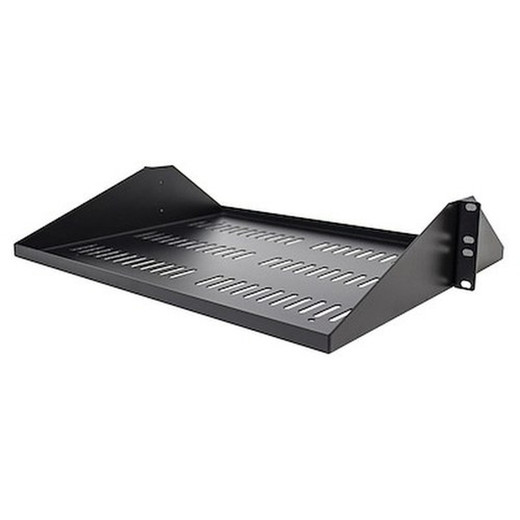

StarTech SHELF-2U-14-CENTER-V 2U Vented Center-Mount Rack Shelf

Overview

The StarTech SHELF-2U-14-CENTER-V is a 2U steel rack shelf designed for integrators who need a reliable, ventilated platform inside a standard 19-inch EIA/ECA-310-E rack — without overbuilding for applications that don't require a full sliding rail kit. At 14 inches deep and rated for 200.7 lb (91 kg), it handles everything from NVR appliances and KVM switches to UPS units and patch distribution gear. The vented deck keeps heat from accumulating under chassis-mounted equipment, which matters when you're stacking multiple devices in a dense telecom or security closet. If you're speccing a rack accessory to support mid-weight AV or network hardware, this shelf lands in the right range.

Key Features

• 200.7 lb (91 kg) Weight Capacity: Most fixed shelves in this depth class top out at 130–150 lb. The SHELF-2U-14-CENTER-V's 200.7 lb rating means you can drop a heavy NVR, a dual-PSU appliance, or a dense network switch on it without worrying about flex or bracket failure — a common failure point with budget-grade alternatives.
• 2U Form Factor (3.4 in / 8.7 cm tall): Two rack units is the sweet spot for most 1U and low-profile 2U devices — you get clearance above and below for airflow and cable dressing without sacrificing precious rack space. The 3.4-inch height keeps the footprint tight in fully loaded 12U or 16U wall enclosures.
• 14-Inch Depth (13.7 in internal usable): Deep enough to seat most 1U NVR chassis, access control panels, or managed PoE switches fully supported rather than cantilevered. Shallow enough to work in a 4-post rack without crowding the rear cable tray — a practical middle ground for mid-depth equipment.
• 19.0-Inch Internal Width (EIA/ECA-310-E Compliant): Conforms to the standard 19-inch rack rail spacing spec, so it mounts in any EIA-310-E compliant 4-post or 2-post rack without shimming or adapter plates. This is the standard used across virtually every telecom, data center, and security rack in North America.
• Vented Deck Design: Perforations across the shelf surface allow warm air to rise through rather than pool beneath rack-mounted equipment. In a surveillance head-end rack running NVRs and PoE switches continuously, thermal management at the shelf level adds up — especially in closets with limited active cooling.
• All-Steel Construction: The steel frame and deck resist rack vibration and don't flex under asymmetric loads — relevant when a single heavy device is positioned off-center on the shelf. Plastic composite shelves in this weight class tend to creep over time; steel does not.
• Center-Mount Design: Center mounting distributes load evenly from the middle of the shelf outward to both rail sets, reducing torque on the rack rails compared to front-mount-only shelves. This matters in rack builds where the upper sections carry significant weight.
• Lifetime Warranty: StarTech backs this shelf with a lifetime warranty — an indicator of confidence in the steel construction and a meaningful consideration for installations that won't be revisited for years.

Integration and Compatibility

The SHELF-2U-14-CENTER-V (often searched as SHELF 2U 14 CENTER V) installs in any rack conforming to the EIA/ECA-310-E standard, including 4-post open-frame racks, enclosed server cabinets, and 2-post relay racks with appropriate mounting hardware. The 19.0-inch external width matches standard rack rail spacing. Internal usable depth is 13.7 inches — measure your deepest chassis before ordering, particularly for 1U appliances with rear-mounted connectors that need clearance behind the unit.

This shelf pairs well with network video recorders and managed PoE switches in surveillance head-end racks, as well as access control panels, intercom servers, and other mid-weight 19-inch rackmount equipment. For environments where cable organization is a priority, combining this shelf with a 1U horizontal cable manager above or below the shelf keeps the rack dress clean. See the rack mounting guide for depth and load planning tips across mixed-equipment builds.

Frequently Asked Questions

Q: What is the maximum weight this shelf can hold?

A: The SHELF-2U-14-CENTER-V is rated for 200.7 lb (91 kg). This is the total distributed load capacity across the shelf surface.

Q: What rack standard does this shelf conform to?

A: It conforms to EIA/ECA-310-E, the standard 19-inch rack specification used across North American telecom, data center, and security installations. It will mount in any 4-post or 2-post rack built to that standard.

Q: What is the usable internal depth of the shelf?

A: The internal usable depth is 13.7 inches (34.9 cm). The overall product length is 14.0 inches (35.6 cm). Measure your equipment's chassis depth plus any rear connector clearance before ordering.

Q: What warranty does the SHELF-2U-14-CENTER-V carry?

A: StarTech provides a lifetime warranty on this shelf.

Q: Is this shelf vented, and does that matter for my equipment?

A: Yes, the deck is vented. This allows warm air to pass through the shelf surface rather than pooling beneath rack-mounted equipment — particularly relevant in enclosed racks running NVRs, switches, or other continuously operating hardware in closets with limited active airflow.

Q: Will this shelf fit in a 2-post relay rack?

A: The shelf is designed as a center-mount unit and is best suited to 4-post rack installations. Compatibility with a 2-post relay rack depends on the specific relay rack's rail configuration — verify your rack's mounting depth and rail type before ordering for a 2-post application.

Jerry Tildsen

The spec that stands out to me on the SHELF-2U-14-CENTER-V is the 200.7 lb load rating — that's not a shelf you're going to stress with a standard 1U NVR or a managed PoE switch. I've seen plenty of integrators grab lighter-rated shelves assuming they'll never hit the limit, then end up with a bowing deck six months later when the rack gets reconfigured and someone drops a UPS on it. This shelf gives you real headroom.

Technical Highlights:

• 200.7 lb Capacity: Handles dual-PSU NVRs, dense PoE switches, or small UPS units without structural concern — well above the 130–150 lb ceiling common in budget fixed shelves of this depth class.
• 13.7 in Usable Internal Depth: Seats most 1U rack appliances fully supported. Tight enough for mid-depth enclosures, wide enough that you're not leaving equipment hanging off the front edge.
• EIA/ECA-310-E Compliance: Mounts in any standard 19-inch rack without adapters — a non-negotiable in mixed-vendor rack builds where every U counts and you can't afford fitment surprises.

Deployment Considerations:

• Center-mount design distributes load evenly to both rail sets — position heavier equipment as close to center as possible rather than biasing toward the front lip to preserve that load distribution advantage.
• The 13.7-inch internal depth is the usable figure. If your chassis has rear-mounted connectors, IEC inlets, or exhaust flanges that extend past the chassis body, account for that clearance or you'll have the unit hanging over the rear edge.

This shelf is a natural fit for surveillance head-end rack builds — specifically enclosed 12U–24U security cabinets housing an NVR, a managed PoE switch, and an access control panel where thermal management and load stability are real operating concerns, not afterthoughts.
