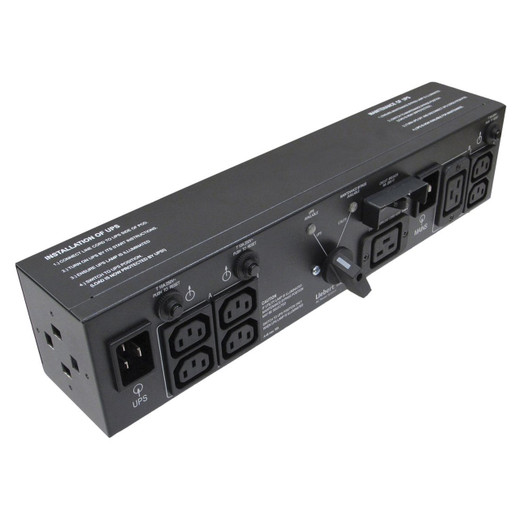

Vertiv MP2-130E 2U Maintenance Bypass Switch for 120V UPS Systems
Overview
The Vertiv MP2-130E is a 2U MicroPod maintenance bypass switch designed for Liebert 120V UPS installations where scheduled maintenance or unplanned UPS replacement must happen without dropping power to connected equipment. The core function is straightforward: the MP2-130E manually transfers all connected loads directly to utility power, keeping everything live while the upstream UPS is isolated, serviced, or swapped out. For data center technicians and facilities engineers who manage power infrastructure, that means zero-downtime UPS maintenance on a predictable schedule rather than an emergency window.
This is the kind of device you wire in once during the initial UPS installation and hope you rarely need — but when you do need it, it earns its keep immediately. Explore the Vertiv power protection catalog for the broader Liebert UPS family this bypass is engineered to support.
Key Features
- Manual Maintenance Bypass: The MP2-130E allows manual transfer of all connected equipment to utility power without interrupting the loads. This is the fundamental reason to deploy a bypass pod — planned UPS replacements become a scheduled task, not an emergency outage event.
- 7 AC 120V Output Connectors: Seven output receptacles at 120V AC give you enough coverage for a typical rack's worth of servers, network gear, or security appliances. Each connected load routes through the bypass during maintenance, so nothing has to be manually unplugged and rerouted during a service window.
- 2U Rack Form Factor: The 2U chassis integrates directly into a standard equipment rack alongside the protected UPS, keeping your power topology clean and your cable runs short. No shelf adapters or external placement needed.
- Liebert UPS Integration: Built specifically for Liebert 120V UPS platforms, the MP2-130E is engineered to pair with the Liebert family rather than operate as a generic bypass. If your facility runs Liebert UPS units as the standard, this is the purpose-built bypass solution — not an aftermarket workaround.
- Zero-Downtime Service Model: The practical benefit of a maintenance bypass in commercial deployments is cost avoidance. Coordinating a maintenance outage window for server or network equipment costs real money in labor and scheduling. A bypass switch like the MP2-130E turns that process into a routine task.
Integration and Compatibility
The MP2-130E is designed for Liebert 120V UPS systems in standard 19-inch rack environments. It functions as a UPS accessory — not a standalone power conditioner — so it requires an existing compatible Liebert UPS installation to operate as intended. If you are building out or expanding a Liebert-based power protection infrastructure, factor the bypass pod into the initial rack design rather than retrofitting later; installation is significantly cleaner when planned from the start.
The 7-outlet, 120V AC configuration suits North American commercial and light industrial environments. Facilities running 208V or 240V infrastructure will need a different bypass model. Confirm your UPS model's bypass compatibility with the Liebert product documentation before ordering — not every Liebert 120V UPS supports an external bypass pod, and the MP2-130E (often searched as MP2 130E) is matched to specific platform generations.
For facilities planning a complete power protection stack, pair this bypass with appropriate rack power distribution and surge protection upstream of the UPS for layered protection.
Frequently Asked Questions
Q: What does the Vertiv MP2-130E actually do during a maintenance window?
A: The MP2-130E manually transfers all connected loads from UPS power to direct utility power. This keeps the equipment running while the UPS itself is isolated for servicing or replacement. It does not condition or regulate the utility power during bypass — connected equipment runs on raw utility power until the UPS is returned to service.
Q: How many outlets does the MP2-130E have, and what voltage?
A: The MP2-130E provides 7 AC 120V output connectors, suited for North American rack deployments running standard 120V infrastructure.
Q: Is the MP2-130E compatible with all Liebert UPS models?
A: The MP2-130E is designed for Liebert 120V UPS platforms, but not necessarily every Liebert model. Verify compatibility against your specific UPS model in the Vertiv/Liebert product documentation before ordering.
Q: Can the MP2-130E be used with non-Liebert UPS systems?
A: The MP2-130E is engineered specifically for Liebert UPS installations. Using it with non-Liebert UPS platforms is outside its verified design scope and is not recommended without confirming compatibility with Vertiv directly.
Q: Does the MP2-130E fit in a standard 19-inch rack?
A: Yes. The MP2-130E occupies 2U of space in a standard 19-inch rack enclosure, designed to install alongside the protected UPS in the same rack.
Q: Does the MP2-130E provide power conditioning or surge protection during bypass mode?
A: No. When the bypass is active, connected equipment runs directly on utility power with no UPS conditioning, filtering, or surge protection. Bypass mode is intended only for the duration of UPS maintenance, not as a long-term operating state.
The MP2-130E solves a problem every facilities engineer running Liebert UPS gear will eventually face: how do you pull a UPS for service without dropping the 7 connected loads behind it? The MicroPod bypass answers that by routing all output to utility directly, keeping equipment live for the duration of the swap. It is not complicated technology, but the absence of a bypass pod is the difference between a scheduled maintenance window and an unplanned outage.
Technical Highlights:
- 7 AC 120V Outputs: Enough receptacles to cover a densely populated rack segment without rerouting cables or staging temporary PDUs during the maintenance window.
- 2U Rack Integration: Sits in the same rack as the protected UPS, keeping cabling short and the power topology readable. No external enclosures or floor placement required.
- Manual Bypass Transfer: The transfer is operator-initiated and deliberate — there is no automatic switching, which means no surprise bypass events and no ambiguity about when connected loads are on utility versus conditioned UPS power.
Deployment Considerations:
- Plan rack position during initial UPS installation — the MP2-130E needs to be cabled between the UPS outputs and the load distribution layer, which is awkward to retrofit in a fully populated rack.
- During active bypass, connected equipment has no surge protection, no voltage regulation, and no battery backup. Keep bypass windows as short as operationally possible, and confirm utility power quality is stable before initiating transfer in environments with known line noise issues.
The MP2-130E is the right specification for colocation edges, enterprise server closets, and security operations infrastructure running Liebert 120V UPS platforms where planned maintenance cannot justify an outage — particularly in facilities where UPS units cycle through warranty replacement on a multi-year schedule.
