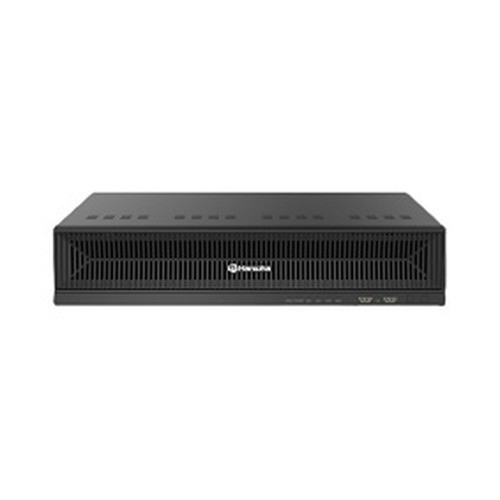

Hanwha BRB-X32101E-12TB 32-Channel 4K NVR with 12TB Storage

Overview

The Hanwha BRB-X32101E-12TB is a 32-channel network video recorder built for mid-size to large surveillance deployments that need serious throughput without handing the recording load to an underpowered box. It ships with 12TB of installed storage and room to grow to 64TB across its drive bays, backed by a 12th-generation Intel Atom quad-core processor and 16GB of DDR4 memory. If you're specifying a recorder for a multi-building site, a retail chain with dozens of cameras, or a warehouse floor running a mix of fixed and PTZ cameras, the BRB-X32101E-12TB is sized to handle that channel count without choking on bitrate spikes.

Key Features

• 32-Channel Capacity: Supports up to 32 cameras on a single recorder, which cuts down on the number of boxes you need to rack, wire, and manage across a mid-size camera deployment.
• Up to 250Mbps Recording Rate: High aggregate throughput means you can run higher-resolution cameras or more of them simultaneously without the recorder dropping frames during peak motion events across all 32 channels.
• 4 x SATA Data Drive Bays, Up to 64TB: The BRB-X32101E-12TB comes configured with 12TB but scales to 64TB across four bays — plan your retention window up front based on channel count and frame rate, then add drives later instead of forklifting to a new chassis.
• 12th Gen Atom Quad-Core Processor + 16GB DDR4: Enough headroom to manage 32 simultaneous streams plus local playback and export without the UI lagging during an incident review, when you least want the system to stall.
• Dual Gigabit Network Interfaces: Two RJ-45 (1Gbps) ports let you separate camera traffic from client/viewing traffic, or configure failover — useful when the recording network and the office network share infrastructure.
• Dual 4K Video Outputs (HDMI + DisplayPort): Independent 4K-capable HDMI and DP outputs support a local monitoring wall or a dedicated operator station without an external decoder.
• eMMC 32GB OS Drive: The operating system runs on a dedicated 32GB eMMC module, separate from the SATA data bays — a drive failure on the recording array doesn't take down the boot volume.
• Front and Rear USB Ports (2x USB 2.0, 2x USB 3.0): USB 3.0 rear ports speed up footage export to external drives during an investigation; front-facing USB 2.0 ports handle quick backups without reaching behind the rack.
• Audio Output: A single audio output channel supports monitoring station audio alongside video, useful where cameras carry audio input for evidentiary recording.
• Wide Power Input Range (100–240 VAC): Universal input at 80W typical consumption simplifies deployment across facilities with different regional power standards, no external converter required.
• Operating Range 32°F to 104°F: Rated for standard indoor equipment rooms and moderately conditioned server closets — this is not a hardened outdoor enclosure, so plan rack placement accordingly.

Integration & Compatibility

The BRB-X32101E-12TB (often searched as BRB X32101E 12TB) is built to sit at the core of a network video recorders deployment alongside Hanwha's surveillance camera line. Pair it with a properly sized PoE switch to power and connect the 32 camera channels, and review a storage and retention planning guide before finalizing drive configuration — retention windows depend heavily on channel count, resolution, and frame rate, and the 12TB-to-64TB range on this chassis gives you room to size correctly rather than guess. Its metal chassis (17.32" x 3.54" x 16.87", 12.06 lbs) fits standard rack environments, and dual 4K outputs mean it can double as both recorder and local viewing station without extra hardware.

What's in the Box

The BRB-X32101E-12TB ships as a complete recorder unit with drive bays pre-populated to 12TB of the supported 64TB maximum.

Frequently Asked Questions

Q: How many cameras can the BRB-X32101E-12TB support?

A: Up to 32 channels, with an aggregate recording rate of up to 250Mbps across all connected cameras.

Q: How much storage does the BRB-X32101E-12TB come with, and can it be expanded?

A: It ships with 12TB installed and supports up to 64TB total across its 4 SATA data drive bays.

Q: What video outputs does the BRB-X32101E-12TB have?

A: One HDMI (4K) output and one DisplayPort (4K) output, so you can run a local monitoring display without an external decoder.

Q: What processor and memory does the BRB-X32101E-12TB use?

A: A 12th-generation Intel Atom quad-core processor paired with 16GB of DDR4 memory.

Q: What are the operating temperature and humidity limits for the BRB-X32101E-12TB?

A: 32°F to 104°F (0°C to 40°C) with 20% to 85% RH, non-condensing — suited to indoor equipment rooms, not outdoor or unconditioned spaces.

Q: What is the power input for the BRB-X32101E-12TB?

A: 100–240 VAC ±10%, 50/60Hz, with 80W typical power consumption.

Karl Wilson

What stands out to me on the BRB-X32101E-12TB is the drive headroom — 12TB installed against a 64TB ceiling across 4 SATA bays. That's the kind of margin you want when a client's camera count grows mid-contract instead of at the next refresh cycle.

Technical Highlights:

• 32 channels at up to 250Mbps aggregate: sized for a full mid-size site — think 25-30 active cameras plus headroom — without the recorder becoming the bottleneck during multi-camera motion events.
• 12th Gen Atom quad-core + 16GB DDR4: enough processing headroom to run live view, playback, and export concurrently without the interface lagging during an incident pull.
• Dual 4K outputs (HDMI + DP): lets you drive a local monitoring wall directly off the recorder — no separate decoder needed for a single-operator station.

Deployment Considerations:

• The eMMC 32GB boot drive is isolated from the 4 SATA data bays, so a data drive failure in the RAID array doesn't risk the OS volume — worth pointing out to clients nervous about single points of failure.
• Operating range tops out at 104°F (40°C) with non-condensing humidity limits — this is an indoor-rated chassis. Don't spec it into an unconditioned equipment closet in a hot climate without checking ambient temps first.

I'd point the BRB-X32101E-12TB at a multi-building retail or warehouse rollout where you're consolidating 25-32 cameras onto one recorder per site and want 64TB of headroom banked in before you ever have to touch the rack again.
