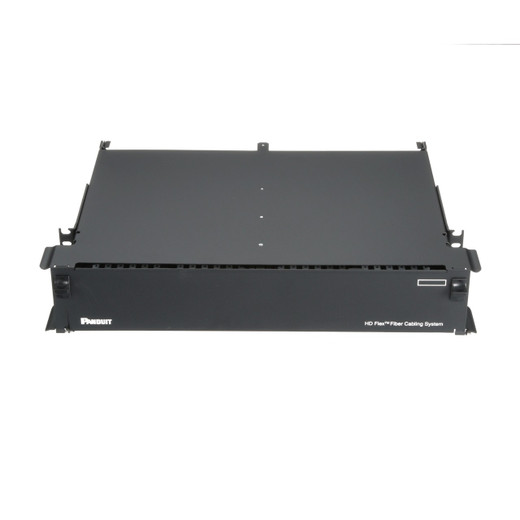

Panduit FLEX2U06 HD Flex 2RU Fiber Enclosure, 6-Port

Overview

The Panduit FLEX2U06 is a 2-rack-unit fiber enclosure built around the HD Flex™ modular cassette architecture. Configured for six HD Flex™ cassette or adapter panel slots out of the box, it scales to the full HD Flex ecosystem without swapping enclosures. For data centers, MDF/IDF closets, and structured cabling backbones where fiber port density and future flexibility both matter, this enclosure gives you a credible upgrade path without tearing out your rack infrastructure.

The enclosure ships at 19.69 inches wide and 3.4 inches tall (86.2 mm / 500.1 mm) — standard 19-inch rack dimensions — so it drops into any EIA-310 cabinet without adapters. Explore the full Panduit fiber infrastructure line for compatible cassettes, adapter panels, and trunk cables.

Key Features

• 6-Port HD Flex™ cassette slots (expandable to 12 per RU): The FLEX2U06 is factory-configured for six ports, but the modular chassis accepts up to 12 HD Flex Fiber Cassettes or Fiber Adapter Panels per rack unit. That translates to a maximum density of 144 fibers per RU — useful when you're planning for 40G/100G or pre-cabling a spine layer before active equipment arrives. You pay for 6 slots now and expand in place rather than buying a new enclosure.
• Front and rear accessible enclosure tray: Technicians can work from either the front or rear of the cabinet without pulling the enclosure from the rail. In dense racks with limited swing space, front/rear access cuts installation time and reduces the risk of disturbing adjacent fiber runs during moves, adds, and changes.
• Split enclosure tray: The split tray design lets you separate the two halves for routing and termination work before reassembly in the rack. This matters in high-density installs where pre-dressing fiber into a fully assembled enclosure would be awkward or risk bend-radius violations.
• Multi-positional enclosure tray: The tray locks into multiple positions, giving you flexibility for splicing or connectorization work in the field. For contractors doing terminations on-site rather than pre-terminated cassette installs, this reduces the need for extra hands.
• Rack/cabinet rail mounting cable management bracket: An integrated cable management bracket is included, keeping horizontal fiber runs organized at the enclosure exit point. Unmanaged fiber bundles pulling on connector faces are a leading cause of insertion loss creep over time — this bracket addresses that from day one.
• Compatible with all HD Flex Fiber Cassettes and Fiber Adapter Panels: The FLEX2U06 is not locked to a subset of the HD Flex catalog. Any current HD Flex cassette (LC, MPO, OM3, OM4, OS2) or adapter panel fits without modification, which simplifies purchasing and reduces the risk of compatibility surprises when expanding.
• RoHS compliant: Meets EU Restriction of Hazardous Substances requirements — relevant for enterprise procurement teams with environmental compliance obligations or projects with LEED documentation requirements.
• 2RU form factor (3.4 in / 86.2 mm tall, 19.69 in / 500.1 mm wide): Standard EIA-310 rack dimensions mean no custom brackets or filler panels. At 2RU, this enclosure provides meaningful port capacity without consuming the rack space of a 4RU chassis — a meaningful tradeoff in telecom rooms where vertical inches are at a premium.

Integration and Compatibility

The FLEX2U06 is purpose-built for the HD Flex fiber enclosure system. It accepts any HD Flex Fiber Cassette or Fiber Adapter Panel, covering LC duplex, MPO, and both multimode (OM3/OM4) and single-mode (OS2) fiber types. Pair it with pre-terminated HD Flex trunk cables for a tool-less, plug-and-play backbone that connects MDF to IDF closets across a campus, or use field-terminated adapter panels for custom runs.

For structured cabling deployments that also integrate active network equipment, review our fiber optic cable management category for patch panels, cable managers, and raceway solutions that complement this enclosure. If you're planning a high-density 40G or 100G migration, an MPO-based HD Flex cassette populating all 12 slots per RU of the FLEX2U06 delivers 144 fiber connections in 2U — worth modeling against your switch port count before ordering cassette type and quantity.

The enclosure does not include cassettes or adapter panels — those are ordered separately based on fiber type and connector format required by your specific cabling plan. Factor cassette lead times into your installation schedule if ordering a large quantity.

Frequently Asked Questions

Q: How many fiber connections does the FLEX2U06 support at maximum density?

A: The FLEX2U06 supports up to 12 HD Flex Fiber Cassettes or Fiber Adapter Panels per rack unit, for a maximum density of 144 fibers per RU. With 2 RU total, the enclosure can accommodate up to 24 cassette/panel slots across both rack units if fully populated.

Q: Does the FLEX2U06 ship with cassettes or adapter panels included?

A: No. The FLEX2U06 is the enclosure chassis only, configured to accept 6-port HD Flex cassettes. Cassettes and adapter panels are ordered separately based on your fiber type (OM3, OM4, OS2) and connector format (LC, MPO).

Q: Is the FLEX2U06 compatible with all HD Flex cassettes and adapter panels?

A: Yes. According to Panduit's product documentation, the FLEX2U06 is compatible with all HD Flex Fiber Cassettes and Fiber Adapter Panels in the HD Flex ecosystem.

Q: What are the physical dimensions of the FLEX2U06?

A: The FLEX2U06 measures 3.4 inches (86.2 mm) in height and 19.69 inches (500.1 mm) in width — standard 19-inch EIA-310 rack dimensions, fitting any standard rack or cabinet without adapters.

Q: Is the FLEX2U06 RoHS compliant?

A: Yes. The FLEX2U06 meets RoHS (Restriction of Hazardous Substances) compliance requirements per the product specifications.

Q: Can the enclosure tray be accessed from both the front and rear of the rack?

A: Yes. The FLEX2U06 features a front and rear accessible enclosure tray, allowing technicians to work from either side of the cabinet without removing the enclosure from the rail.

Marty Allison

The FLEX2U06 is the enclosure I reach for when a customer needs to commit to a rack footprint today but isn't ready to define their full fiber cassette strategy. The 2RU chassis accepts up to 12 HD Flex cassettes per rack unit — 144 fibers per RU at max density — which means the same enclosure that starts as a 6-port footprint on day one can grow to full density without any additional chassis hardware. That flexibility has real value on projects where Phase 1 and Phase 2 fiber counts are separated by months.

Technical Highlights:

• 144 fibers/RU maximum density: At 12 cassettes per RU across a 2RU chassis, you can push 288 fiber connections total into a single FLEX2U06 — meaningful for spine-layer or MDF applications where port count grows as 40G/100G equipment rolls in.
• Front and rear tray access: In back-to-back cabinet rows where rear access is tight, front-accessible termination lets one tech work without a second person holding the cabinet door. Reduces job-site labor on dense installs.
• Split and multi-positional tray: The tray separates for pre-dressing and locks into multiple working positions — practical on field-terminated installs where you're pulling and terminating runs rather than snapping in pre-terminated cassettes. Fewer dropped connectors, better bend-radius compliance.

Deployment Considerations:

• The FLEX2U06 ships as chassis only — budget cassettes and adapter panels as separate line items. For an MPO-based 40G migration, each HD Flex MPO cassette typically maps 12 fibers per slot; at 12 slots per RU that's 144 per RU, but verify cassette fiber count against your trunk design before ordering quantity.
• At 19.69 inches wide, this fits standard 19-inch rails. Confirm your cabinet's usable depth against the fully dressed enclosure with cable management bracket attached before specifying — cable management brackets add depth behind the face plate.

The FLEX2U06 fits best in MDF/IDF closets on structured cabling backbones where the project is phased and the integrator needs a chassis that won't require a forklift upgrade when the next building wing comes online. If you know your final fiber count is under 72 and won't grow, a smaller 1RU chassis may be the tighter fit — but if expansion is on the roadmap at all, the 2RU form of the FLEX2U06 is the more defensible spec.
