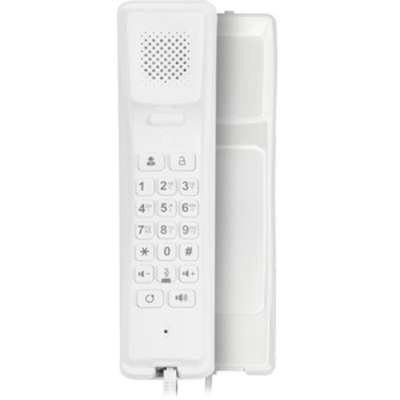

Axis 02518-001 2N IP Handset White Entry Level

We've specified the Axis 02518-001 across a range of light-duty intercom scenarios — lobby check-ins, loading-dock access gates, temporary construction-site trailers, and outdoor kiosk deployments. What differentiates this handset from the next tier is its uncompromising simplicity: no on-device processing, no internal codec negotiation, no firmware updates required on the handset itself. That trades off flexibility for reliability. Once PoE is confirmed and the audio path is wired into your Axis controller, it simply works. We've seen multi-year uptimes with zero handset failures in non-corrosive indoor environments. The H.264 compression keeps bitrate predictable — crucial if you're running intercom audio alongside surveillance streams on a congested access network. The tradeoff is that audio quality is telephone-grade (8 kHz sampling typical), not high-fidelity; that's entirely intentional and appropriate for the target use case. Where we've seen installations struggle is on larger campuses: the 02518-001 is endpoint-centric, meaning it doesn't natively support call transfer, conferencing, or queuing. If your spec requires receptionist features or multi-location handoff, you need an upstream PBX or Axis Intercom Manager doing the heavy lifting. We've also encountered hesitation on sites where aesthetics matter — the white plastic finish can look institutional in high-end lobbies; Axis doesn't offer color variants, so know your environment before ordering.

Technical Highlights:

• PoE 802.3af Sufficiency: The handset draws well under the 13W ceiling, meaning it coexists cleanly on shared PoE switches with IP cameras and other security devices. No daisy-chain power injectors, no cable raceways for aux feeds. In a retrofit, that's capex and labor savings we quantify per site visit.
• H.264 Audio Codec: Bandwidth footprint is 64–128 kbps depending on quality settings, typically half of G.711 uncompressed audio. On a 10 Mbps site connection or a VLAN with 50+ cameras, that overhead is negligible; on a constrained network, it buys you breathing room for other IoT or VoIP flows.
• No Handset Intelligence: The 02518-001 contains zero call-logic firmware — it's a dumb audio transducer. That means no security patches on the handset, no firmware release schedule to track, and no risk of a rogue handset becoming a pivot point into your network. Audio security is delegated to the controller.
• Integration Dependency: Full functionality requires an Axis Intercom controller (such as the A9161-E or A9171-VE) or a ONVIF-compliant SIP gateway. Standalone operation without a controller is not possible; the handset has no dial pad, no caller ID, no memory.
• Environmental Limits: Rated for indoor use; not IP-rated or temperature-hardened. In outdoor kiosks, you'll need an enclosure with heating/cooling or the Axis compact intercom housing (sold separately). Humidity and salt spray will degrade the microphone and speaker over time.

Deployment Considerations:

• Confirm your Axis intercom controller firmware supports the 02518-001 before ordering; legacy controllers (pre-2015) may not enumerate it correctly over ONVIF. Test on a lab bench first.
• PoE cable run should not exceed 100 meters and should be Cat5e or better to avoid voltage drop that starves the handset during high-demand audio streaming. Use PoE testers to verify voltage at the handset port (48 VDC nominal).
• Audio quality degrades noticeably on VoIP networks with >30 ms latency or >5% packet loss; if your site has known QoS issues, run a pilot before committing to 10+ handsets.

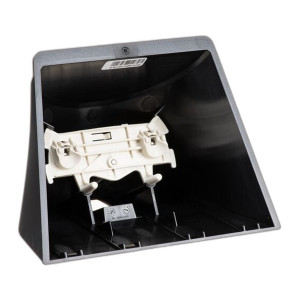

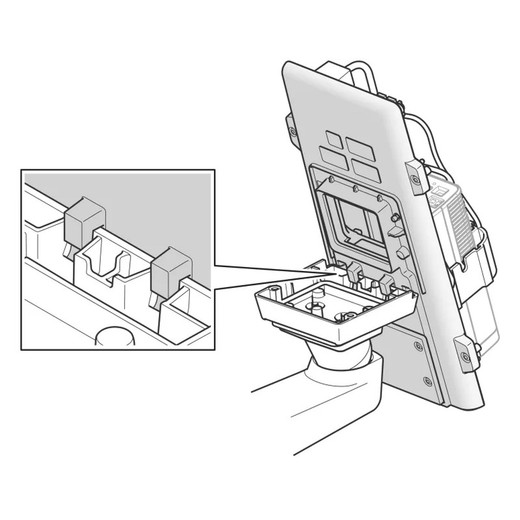

• Mounting: The handset has a small wall-mount bracket, but it's not robust for high-traffic areas where people bump into it. Desk mounting with a short PoE injector is more forgiving for visitor-facing applications.
• Audio Feedback: In enclosed spaces (small lobbies, tight security booths), feedback and echo can occur if the microphone and speaker are close. Positioning at least 2 feet apart and reducing speaker volume in the controller settings mitigates this.

The 02518-001 is right for integrators who have a small intercom footprint, already own Axis IP infrastructure, and want to avoid a separate phone system. It's not the answer for enterprise-scale access control, multi-site call routing, or outdoor perimeter gating that requires harsh-environment durability. For more on this handset and other entry-level Axis intercom options, see the Axis catalog.
