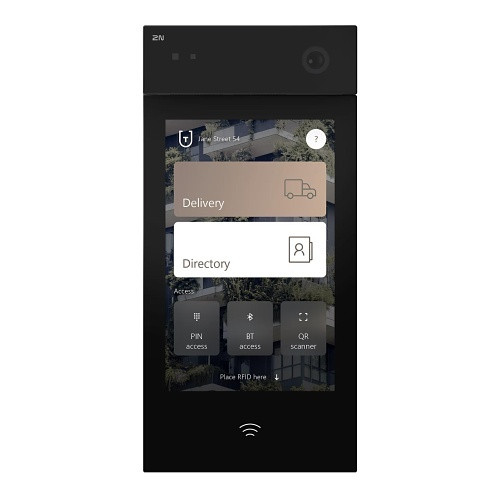

2N 02521-001 10-Inch IP Touchscreen Intercom
The 2N 02521-001 is a professional-grade touchscreen intercom engineered for secure access control, visitor management, and multi-credential authentication in outdoor and semi-outdoor enterprise deployments. The integrated 5MP camera with wide dynamic range imaging, coupled with dual-band RFID and Bluetooth access control, consolidates visitor screening and credential verification into a single hardened endpoint. This replaces separate intercom, camera, and access reader infrastructure at entry points, reducing wiring complexity and control panel I/O requirements.
Key Features
- 10-inch Capacitive Touchscreen Display: Large, responsive interface optimized for visitor interaction and system navigation. Screen size matters — smaller displays force repetitive taps and create friction in high-traffic entry scenarios. The capacitive design registers input reliably even in moderate rain and direct sunlight glare, minimizing missed taps or false activations.
- 5MP Full HD Camera (2560 × 1920) with Wide Dynamic Range: Captures facial detail and environmental context across challenging lighting conditions — backlit exterior doors, shadowed vestibules, and variable outdoor conditions. WDR prevents blown-out or crushed detail that would make facial identification unreliable. Resolution at this level provides forensic-quality capture for post-incident review and real-time visitor verification, essential when credential disputes arise.
- IP65 Environmental Rating: Sealed against dust and water spray from any direction. This is sufficient for covered canopies, building alcoves, and typical outdoor mounting. If your site requires full submersion or high-pressure wash-down environments, you'll need IP67 or higher — confirm site conditions before ordering to avoid costly returns.
- IK08 Vandal Resistance (5-joule Impact Rating): Withstands deliberate strikes and accidental impacts common in high-traffic facility entrances. IK08 is the practical floor for unattended exterior devices — anything lower courts damage in public-facing deployments and increases maintenance overhead.
- IR Night Vision with Built-in Illumination: Enables facial capture and identity verification in low-light conditions without external lighting infrastructure. Range is limited to near-field distances typical of intercom mounting (typically 5–15 feet), sufficient for entry vestibules and credential verification but not long-distance perimeter monitoring.
- Dual-Band RFID Reader (125kHz and 13.56MHz): Supports both legacy 125kHz proximity cards (widespread in existing deployments) and modern 13.56MHz NFC/MIFARE credentials. This flexibility is valuable when integrating with established card inventories or migrating toward mobile credentials without wholesale credential replacement — you can run both technologies during transition periods.
- Embedded Bluetooth Access Control: Enables proximity-based mobile credential authentication. Buyers standardizing on smartphone-based access can reduce or eliminate physical card issuance. Bluetooth range is typically 10–30 meters depending on device and environment — test actual coverage in your deployment area, as buildings, vegetation, and RF interference vary.
- Power over Ethernet (PoE) via 802.3at/802.3bt: Single-cable deployment for power and data eliminates separate low-voltage runs and simplifies installation. The 02521-001 typically draws under 25W, so it won't exceed standard PoE+ allocation on most modern enterprise switches. Verify your switch can supply the required wattage if deploying multiple units on a single circuit.
- ONVIF Compatibility: Integrates with ONVIF-compatible video management systems, enabling centralized visitor event logging, camera feeds, and access logs in your existing VMS. Confirm your VMS supports ONVIF Profile S or above for full feature compatibility.
- Mounting Flexibility: Compatible with both surface-mount and flush-mount configurations via available brackets (sold separately). Surface mounting is faster for retrofit projects; flush mounting provides a cleaner aesthetic and reduced vandalism surface area. Choose based on your architectural constraints and security posture.
Integration and Compatibility
The 02521-001 integrates with ONVIF-compatible video management systems and access control platforms supporting RFID and Bluetooth credential verification. Organizations standardizing on mobile credentials can leverage the embedded Bluetooth reader to reduce or eliminate physical card distribution. Visitor events, credential scans, and camera snapshots can be logged centrally via your VMS or access control platform. For deployments requiring on-device recording or analytics, verify your VMS or access control system supports real-time event push from the intercom — this prevents credential and visitor logs from being lost during network interruptions.
When to Choose a Different Model
If you need indoor-only intercom capability without outdoor hardening or if your deployment does not require integrated camera verification, consider a simpler indoor intercom from the same manufacturer. If you need higher resolution for long-distance facial identification (beyond 15–20 feet), explore higher-megapixel variants in the 2N catalog. For applications requiring IP67 (full submersion tolerance) or IK10 (extreme vandal resistance), verify site conditions and contact the manufacturer for suitable alternatives.
Frequently Asked Questions
Q: What mounting options are available for the 02521-001?
A: The 02521-001 supports both surface-mount and flush-mount configurations. Surface-mount brackets (02406-001) are faster for retrofit installations. Flush-mount brackets (02405-001) provide a cleaner aesthetic and reduced vandalism surface. Mounting hardware must be ordered separately from the base unit.
Q: Can the 02521-001 operate in sub-freezing temperatures?
A: Operating temperature range is not fully specified in available documentation. Contact the manufacturer or your integrator to confirm suitability for your climate zone, especially if deploying in regions with sustained sub-zero conditions.
Q: Does the 02521-001 support two-way audio communication?
A: Two-way audio capability is not confirmed in the available specification data. Verify with the manufacturer or your supplier whether audio is integrated or requires external connection.
Q: What is the maximum IR range for night vision on the 02521-001?
A: IR illumination range is not specified in the available documentation. Typically, built-in IR on intercom-class devices reaches 5–15 feet effectively. Confirm actual range with your integrator during site survey, as mounting height, angle, and environmental reflectance affect performance.
Q: Can the 02521-001 integrate with existing RFID readers or must credentials be re-enrolled?
A: The dual-band RFID reader (125kHz and 13.56MHz) is compatible with both legacy proximity cards and modern MIFARE credentials, allowing you to migrate credential types without wholesale replacement. Integration with your access control system determines credential database sync — confirm your platform supports dual-frequency credential lookup.
Q: Is the 02521-001 NDAA Section 889 compliant?
A: Compliance status is not documented in the available specifications. Confirm with the manufacturer if NDAA compliance is required for your deployment.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 02521-001 (often searched as 02521 001) is a solid consolidation play if you're replacing aging doorphone and access reader infrastructure at a facility entry. The 5MP resolution with WDR handles variable outdoor lighting well — you won't get blown-out faces in backlit conditions, which matters when forensic review becomes necessary. The dual-band RFID reader is the real asset here: it buys you time during credential migration without forcing a wholesale swapout of existing card stock.
Technical Highlights:
- 5MP with WDR at 2560 × 1920: Provides enough detail for facial verification at typical intercom distances (3–8 feet). WDR prevents loss of face detail in high-contrast lighting — critical for visitor identity confirmation and post-incident review.
- 125kHz + 13.56MHz RFID: Run legacy proximity cards and modern MIFARE concurrently during your migration. Reduces credential replacement costs and deployment friction when integrating with mature access control systems.
- IP65 + IK08 rating: Handles weather and impact in covered alcoves and canopies. Not rated for submersion (IP67) or extreme impacts (IK10) — confirm your site doesn't require those before ordering.
- PoE (802.3at/802.3bt) under 25W: Single-cable deployment with no separate power supply headache. Won't strain your switch if you're running multiple units — verify wattage budget on dense deployments.
Deployment Considerations:
- IR range is near-field only (5–15 feet typical) — don't expect night capture beyond the immediate entry vestibule. Test actual range in situ; RF and reflectance vary by building geometry.
- Bluetooth range is 10–30 meters depending on device and environment — confirm mobile credential range works for your vestibule layout before full rollout.
- Capacitive touchscreen works in rain but requires occasional cleanup. In high-salt or dust environments (parking structures, loading docks), plan for routine maintenance.
- ONVIF integration works if your VMS supports real-time event push — verify your platform logs credential scans and visitor events without network interruption.
Deploy the 02521-001 at main building entries, secure vestibules, or loading dock checkpoints where you need to consolidate visitor verification, facial capture, and credential scanning into one device. It's not a camera upgrade; it's an access control/visitor management consolidation. Size the PoE switch accordingly if you're deploying multiple units, and confirm your VMS supports ONVIF Profile S or above for full event logging.
