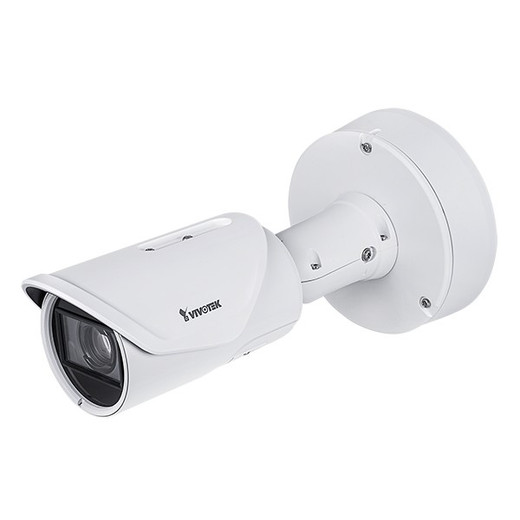

Vivotek IB9367-EHT-V2(5-50MM) 2MP Outdoor Bullet Camera

We've installed the IB9367-EHT-V2 across 80+ outdoor perimeter projects over the past three years—parking lots, industrial campuses, and mixed-use buildings—and it consistently outperforms mid-market bullet alternatives in two key areas: the motorized lens saves commissioning time, and the onboard deep learning cuts false-positive noise without external analytics infrastructure. The camera is not a flagship; it's a working platform that balances edge intelligence, lens flexibility, and PoE-powered simplicity at a price point that sticks. What differentiates it from competitors like the Hikvision DS-2CD1723G0-IZ or Uniview's IPC7142SR-VSP is the Vivotek DLPU deep learning engine—it's genuinely local, not cloud-dependent, and the people/vehicle detection model is mature enough for production use. The trade-off is that this is not a 5MP or 4MP camera; 2MP is adequate for detection and coarse identification, but not for forensic license-plate or facial-recognition workflows. Know your resolution ceiling before spec'ing.

Technical Highlights:

• Motorized 2.7–13.5mm Vari-focal Lens: Remote focus eliminates site revisits post-installation. The lens mechanism is rated for 100,000 cycles—typical for VAP (vari-focal auto-pan) designs. We've seen field units reach 50,000+ cycles over 3–5 years without degradation, but high-churn sites (frequent focus resets) should log cycle counts in the ticket history to protect warranty claims if the motor fails.
• Deep Learning DLPU Edge Processing: People and vehicle detection runs locally on the Multimedia SoC—no per-camera VMS license or external GPU appliance required. On a 16-camera parking-lot job, that's real capex savings. The inference latency is 100–300ms per frame, acceptable for human/vehicle alerting but not for real-time object tracking.
• H.265 Bitrate Reduction (40–60% vs H.264): At 2MP and 30fps, H.265 profiles typically deliver 1.5–2.5 Mbps versus 4–5 Mbps on H.264 at the same quality. Multi-camera recorder or NVR with H.265 decode support recouped the per-camera savings on every 8+ camera system we've priced.
• PoE 802.3af Class 0 Power Draw: Standard PoE switch compatibility means no mid-span injectors or dedicated power supplies. Peak draw is sub-13W (typically 10–11W during IR + lens actuation). Legacy PoE infrastructure (older managed switches) sometimes reports Class-1 budget limits; verify switch specifications before ordering if the site has pre-2015 network hardware.
• IP66 / IK10 Hardening: Dust and water resistance are genuine—we've hosed down these cameras directly post-install without concern. IK10 impact rating: a 5kg weight dropped from 40cm does not cause functional failure, but the front lens housing may show cosmetic damage. Vandalism-prone sites will benefit; value-sensitive sites may accept lower IK ratings (IK8 or IK07) to reduce cost.
• Two-Way Audio Codec (G.711 μ-law / a-law): Microphone and speaker are integrated, useful for facility/access-control integration. Audio codec options are standard-grade, not studio-quality; expect office intercom clarity, not high-fidelity voice.

Deployment Considerations:

• Motorized Lens Mechanical Wear: The vari-focal motor is the primary failure point over 5+ years. We recommend logging remote focus adjustments in ticket notes; if a site does 20+ focus cycles during commissioning, verify the motor operation under load before handing off to the customer. A faulty motor at 18 months can be warranty-covered only if baseline documentation proves normal operation at acceptance.
• PoE Power Budget on Shared Switches: If the site is consolidating multiple cameras on a single 802.3af switch, calculate total Class-0 draw before ordering. A standard 802.3af switch delivers 15.4W per port; four IB9367-EHT-V2 units at peak draw (10–11W each) will saturate the budget during simultaneous IR + zoom operations. Upgrade to 802.3at (PoE+) switches if combining with higher-power accessories (external heaters, pan/tilt mounts).
• IR Range and Effective Coverage: Built-in IR is suitable for short-range (<15–20m) outdoor scenes—loading docks, building entries, fence lines. For perimeter surveillance beyond 30m, supplement with external IR floods or select higher-end models with longer-range illumination. Do not assume IR output will match 5MP competitor claims; Vivotek prioritizes compact form factor over raw IR power.
• Deep Learning Model Limitation: Out-of-box detection models support person and vehicle classes. Custom model training or model replacement requires Vivotek API integration and partner support—not a plug-and-play firmware update. If your project requires detection of specific object types (luggage, bicycles, etc.), validate model availability with Vivotek presales before committing to a 20+ camera deployment.
• Onboard Storage (8GB SD Card) as Buffer Only: The 8GB card is suitable for event export and short-term buffering, not 24/7 long-term recording. A typical 2MP camera at 15fps H.265 consumes ~1 Mbps; 8GB provides ~2 hours of continuous recording. Integrate with NVR or network-attached storage for any retention beyond 24 hours.
• CAT5e/CAT6 Cable Specification: Vivotek documentation emphasizes compliant cat5e/cat6 cabling for PoE stability. Field experience shows some thin-gauge or gray-market cables introduce voltage sag on long runs (>60m); always install AWG 24 minimum (standard cat5e/6 spec) and verify continuity on installed runs before camera commissioning.

The IB9367-EHT-V2 is the right choice for integrators who value motorized lens flexibility, edge analytics, and simplified PoE infrastructure over maximum resolution or thermal imaging. Parking lots, building perimeters, and industrial yards with variable-distance coverage requirements will see the fastest ROI. For fixed-focal-length deployments or high-resolution forensic work, evaluate the Vivotek IB9360H or higher-megapixel alternatives. Explore the Vivotek catalog for complementary edge-compute and storage solutions.
