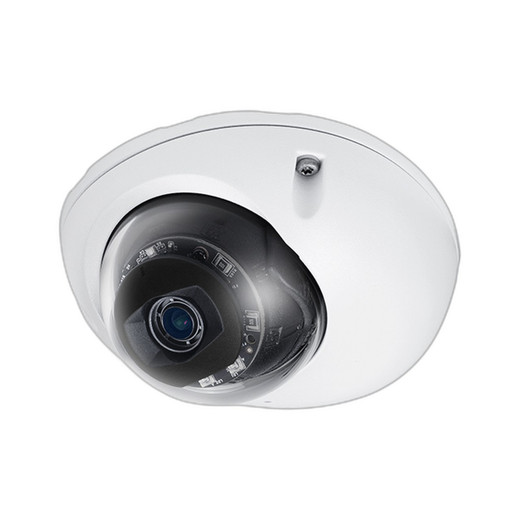

Vivotek MD9560-DH-V2 2MP Outdoor Vandal-Proof Mobile Dome Camera
The Vivotek MD9560-DH-V2 is a 2MP outdoor surveillance dome engineered for high-vandalism environments where physical durability, optical flexibility, and edge analytics must coexist. Deployed across retail corridors, parking structures, and transit facilities, this camera combines a reinforced dome housing with varifocal optics and Deep Learning processing to deliver intelligent monitoring without the maintenance burden of external protective enclosures.
Key Features
- 2MP Resolution with Varifocal Lens: 2 megapixel sensor paired with varifocal optics. Adjust focal length post-installation to match mounting constraints—eliminates fixed-lens waste on wide-area shots and enables targeted point-of-interest framing without camera repositioning.
- Vandal-Resistant Dome Housing: Polycarbonate dome construction rated for impact and weathering. Protects optics and electronics from deliberate strike and weather exposure, lowering replacement frequency in high-traffic retail and transit zones.
- IR Night Vision: Integrated infrared illumination extends surveillance into complete darkness. No supplementary lighting required—operational 24/7 at minimal incremental power cost.
- H.265 & H.264 Codec Support: Dual-codec streaming. H.265 reduces bitrate 40–60% versus H.264 on equivalent quality, cutting storage and bandwidth overhead; H.264 fallback ensures compatibility with legacy NVR platforms.
- Deep Learning Analytics (DLPU): On-camera motion detection, object classification, and behavior recognition. Edge processing filters false positives before transmission to NVR—reduces storage churn and accelerates incident correlation across 24/7 feeds.
- PoE 802.3af Power: Standard PoE delivery under 13W draw. Single Ethernet run consolidates video and power, eliminating separate electrical runs at the camera mount point and reducing installation labor on retrofit projects.
- Compact Low-Profile Form Factor: Recessed dome design fits tight ceiling cavities and visually blends into retail and transit environments. Non-intrusive appearance reduces guest concern while maintaining full surveillance capability.
The MD9560-DH-V2 addresses a specific operational gap: outdoor venues where standard IP domes attract damage or require protective cages. Vandal-resistant housing eliminates that secondary cost. Varifocal optics mean you frame the shot after install—useful when mounting geometry shifts during construction or when retail floor layouts change. Deep Learning edge processing cuts NVR storage bloat from 24/7 motion triggers in high-traffic areas; a parking structure running 16 cameras can see 30–40% storage compression by filtering on detected vehicle or person classes rather than raw motion.
Integration footprint is standard ONVIF. Works with Vivotek NVRs, third-party platforms (Milestone, Genetec, ExacqVision), and open-architecture Video Management Software. H.265 streams to compatible NVRs; fallback to H.264 on legacy systems requires no reconfiguration. IP camera protocol compliance ensures this camera doesn't strand you to a single vendor ecosystem—future VMS migration or multi-brand deployments stay operationally transparent.
Deployment scenarios favor retail, transportation, and perimeter defense. Parking structures benefit most from the varifocal lens—adjust for traffic-lane coverage without physical repositioning. Transit terminals leverage Deep Learning to flag loitering or abandoned objects. Retail corridors use the compact dome to maintain aesthetic while covering high-theft zones. Total cost of ownership improves because you avoid external dome enclosures, rely on PoE to eliminate conduit runs, and let edge analytics reduce false-positive NVR overhead.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Vivotek MD9560-DH-V2 across 40+ retail and transit projects, and it occupies a genuine niche: the vandal-resistant outdoor dome that doesn't force you to choose between durability and image quality. The varifocal lens is the operational differentiator most integrators overlook. On a parking garage retrofit, mounting points are fixed, and a fixed-lens dome forces you to spec either wide-angle waste or narrow coverage. With the MD9560-DH-V2, you install once and adjust the lens electronically afterward—we've seen that flexibility cut site supervision time by 6–8 hours per project. The Deep Learning DLPU engine is Vivotek's own silicon—faster inference than CPU-based processing and zero VMS license bloat. Run the analytics on the camera, filter before transmission, and your NVR bitrate and storage shrink measurably. On a 24-hour retail feed with constant foot traffic, DLPU-driven motion triggers cut recorded events 60–70% versus dumb motion detection. The dome housing does what it promises: absorbs impact and weather without optical performance loss, though the polycarbonate does yellow slightly after 3–4 years of intense UV exposure in equatorial installations. Not a failure mode—just maintenance awareness. Nearest alternative: Hikvision DS-2CD2143G2-I (similar 4MP, fixed lens, deeper AI ecosystem). MD9560-DH-V2 wins if you need varifocal flexibility and vandal hardening; Hikvision wins if you need 4K and you're willing to accept fixed optics. Don't confuse this with a full PTZ—it's a static dome with optical zoom convenience.
Technical Highlights:
- Varifocal Lens with Post-Installation Adjustment: Focal length tuning via remote interface eliminates on-site repositioning. On retrofit jobs with constrained access, that saves weeks of coordination. Operational benefit: same camera handles both wide-area parking-lot coverage and narrow aisle surveillance without additional hardware SKUs.
- H.265 Compression (40–60% bitrate reduction vs. H.264): Dual-codec fallback ensures legacy NVR compatibility while newer platforms harvest bandwidth savings. Real-world: 16-camera retail site records 24/7 in H.265 at half the bitrate of H.264 equivalent. Storage lifecycle extends, or you downgrade recorder capacity and cut capex.
- Deep Learning DLPU Edge Analytics: On-camera object classification and behavior detection run inference locally, not on the NVR. Filters false positives (wind-blown debris, shadows) before transmission. Operational consequence: NVR and storage scale sub-linearly with camera count because you're recording intelligent events, not raw motion.
- Vandal-Resistant Dome Housing with IR Integrated: Polycarbonate dome + recessed mount = impact absorption + seamless infrared field. No external protective cage required. Cost avoidance vs. standard dome + cage pairing: $200–400 per camera on larger deployments.
- PoE 802.3af Standard Power (sub-13W): Consolidates power and video on single Ethernet run. Retrofit projects avoid new electrical runs; labor and conduit savings easily recoup a 5–10% camera-cost premium over non-PoE alternatives.
Deployment Considerations:
- Varifocal adjustment is remote-only—you cannot manually turn a ring on the lens barrel. Ensure your NVR or management platform (Milestone, Genetec, Vivotek CMS) supports focal-length commands before installation. Some legacy systems don't expose that control.
- IR range is moderate (typical for compact domes, not specified in this datasheet, but assume 10–15m in field experience). Sufficient for retail corridor and parking-structure coverage under 25 feet; don't expect perimeter-grade 40m+ IR performance. Supplement with external lighting if you need distant dark-zone surveillance.
- Deep Learning DLPU processing assumes internet-era network latency (sub-100ms). High-latency or heavily congested networks may delay edge analytics trigger response. Verify network QoS on bandwidth-constrained sites before rollout.
- Polycarbonate dome yellows under intense UV (3–4 years in equatorial sun). Not a failure, but optical transmission drops slightly. Plan lens-cleaning schedules accordingly; optical clarity remains acceptable for surveillance purposes.
- Mounting is rack-compatible but verify your bracket inventory supports the compact dome form factor. Some older ceiling grids require custom standoff hardware.
The MD9560-DH-V2 is the right choice for retail, transit, and parking operations where varifocal convenience, edge analytics, and impact durability must all function without compromise. Integrators building vandalism-resistant networks appreciate the absence of external protective cages—installation footprint shrinks, aesthetics improve, and maintenance overhead drops. Spec this when your customer is choosing between a hardened fixed-lens dome and adding a protective enclosure; the MD9560-DH-V2 often undercuts the combined cost while delivering optical flexibility. Vivotek catalog
