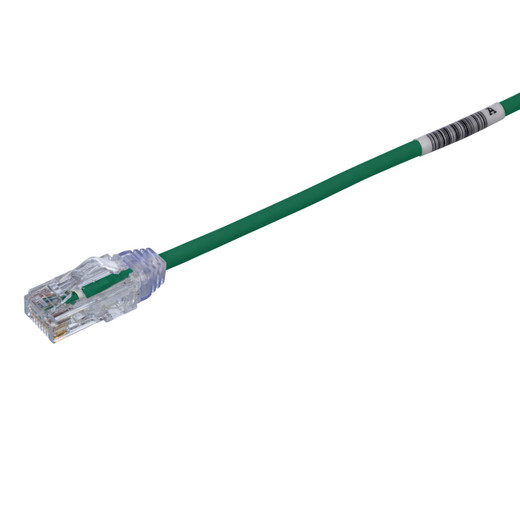

Panduit UTP28SP2GR Cat 6 28 AWG UTP Patch Cord, 2 ft, Green

The Panduit UTP28SP2GR is a 2-foot Cat 6 UTP patch cord engineered for high-density patching in datacenter, network closet, and IDF environments. Its slim 28 AWG stranded construction delivers a 0.150" (3.8mm) overall diameter—approximately 30% thinner than standard 24 AWG cords—improving airflow around densely populated patch panels and simplifying cable management in congested racks. The cord is factory-terminated with Panduit's high-performance modular plugs featuring centered de-embedded contacts and an integral pair manager that maintains twist geometry through the termination, ensuring consistent performance across all four pairs. RapidID barcode integration enables automated asset tracking and port mapping via Panduit's RapidID software, eliminating manual documentation overhead on large-scale moves, adds, and changes.

Key Features

• 28 AWG stranded copper construction for 0.150" (3.8mm) diameter—30% slimmer than 24 AWG cords
• Tangle-free latch design prevents snags during MAC operations and ensures fast, positive release
• RapidID enabled with pre-installed barcodes for automated port mapping and asset documentation
• Exceeds ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 Class E performance requirements (1–250 MHz)
• Supports IEEE 802.3af/802.3at PoE/PoE+ and 802.3bt Type 3 & Type 4 PoE++ (up to 90W)
• CM/LSZH dual-rated jacket for flexible installation in North American and international projects
• 100% factory performance tested for wire map, NEXT, and return loss
• Compatible with T568A and T568B wiring schemes
• Centered de-embedded plug with integral pair manager maintains twist geometry through termination

The TX6-28™ cord uses 28 AWG (7×36) stranded bare copper conductors in a four-pair unshielded twisted-pair configuration, jacketed in a CM/LSZH-rated compound that meets UL 1863, CAN/CSA-C22.2, and low-smoke zero-halogen fire safety requirements. The reduced conductor gauge and overall diameter improve bend radius and handling flexibility while maintaining full Cat 6 channel performance when used within the 10-meter horizontal cross-connect limit specified in TIA-568.2-D Annex I. Each cord is factory-tested across all four pairs for wire map continuity, near-end crosstalk (NEXT), and return loss from 1 to 250 MHz, with test results recorded and serialized to the RapidID barcode. The modular plug design incorporates Panduit's centered de-embedded contact geometry, which positions the contact springs equidistant from the jack's reference plane to minimize impedance discontinuity and crosstalk at the mated interface. An integral pair manager inside the plug boot maintains the factory twist rate up to the contact point, preventing pair untwist that degrades alien crosstalk (ANEXT) performance in high-density bundled installations. The patented tangle-free latch uses a low-profile, snag-resistant boot geometry that deflects around adjacent cords and patch panel frames during insertion and extraction, reducing the risk of latch breakage and accidental disconnects during routine maintenance.

This 2-foot length is optimized for top-of-rack datacenter switching fabrics, high-density IDF patch panels, and zone distribution consolidation points where traditional 24 AWG cords create airflow restrictions and pathway congestion. The slim 0.150" diameter allows approximately 40% more cords per cable bundle compared to 0.235" diameter 24 AWG equivalents, reducing the need for oversized ladder rack, overhead J-hooks, and pathway expansion in retrofit installations. The cord's stranded conductor construction provides superior flex life compared to solid-conductor designs, making it appropriate for equipment connections subject to occasional reconnection—network switches, PoE injectors, media converters, and patch panel consolidation points. Full PoE++ (802.3bt Type 4) compliance at 90 watts enables direct connection of high-power edge devices including PTZ cameras, 802.11ax access points, LED lighting controllers, and IP door strikes without intermediate power injectors. The RapidID barcode workflow integrates with Panduit's Physical Infrastructure Manager (PIM) software suite and third-party DCIM platforms to automatically populate port-level connectivity databases during installation, eliminating the manual spreadsheet documentation that typically consumes 15–20% of horizontal cabling labor hours. Installers scan the cord's barcode at each end of the connection using a handheld scanner or mobile device running the RapidID app; the software records the link endpoints, timestamp, and installer ID in a centralized asset database accessible to facility managers and network operations teams.

The dual CM/LSZH jacket rating eliminates the need for separate cord inventories on projects with mixed fire code requirements—the same cord can populate both North American installations governed by NEC Article 800 (where CM rating satisfies general-purpose horizontal pathway requirements) and international or transportation projects requiring LSZH compounds under IEC 60332-1 and IEC 61034 smoke emission limits. The green jacket color supports TIA-606-B cable administration standards for end-user network connections, auxiliary circuits, or crossover links, depending on the facility's color-coding convention. All materials are RoHS-compliant and compatible with automated high-density patching systems including Panduit's QuickNet™ and Panduit Physical Infrastructure Manager environments. The product ships in cartons of 10 individually bagged cords, with each bag labeled with UPC, MPN, length, and color for simplified inventory control and kitting for large-scale deployments.
