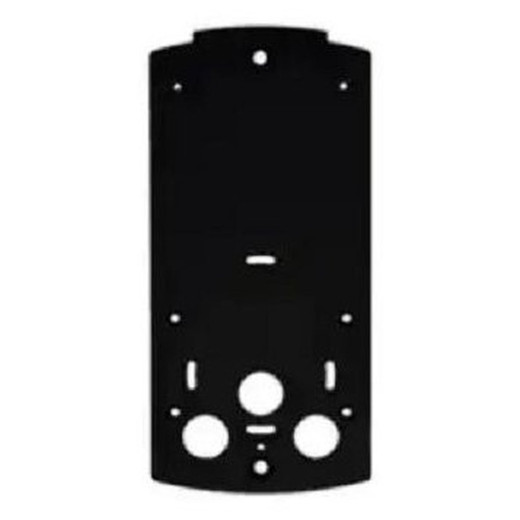

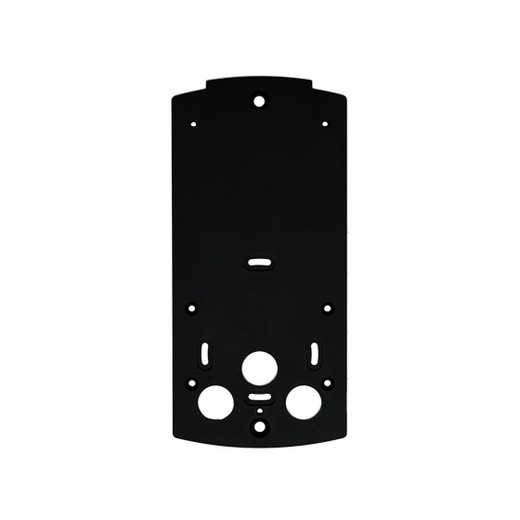

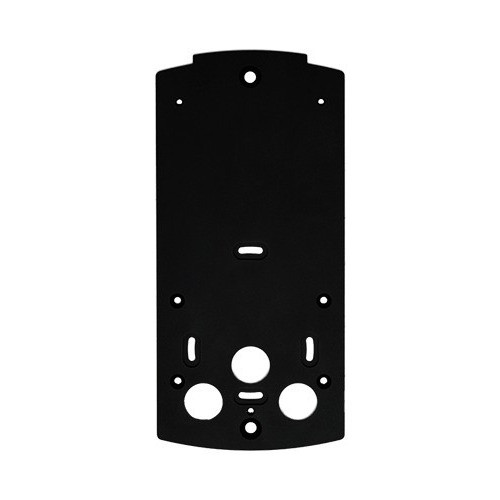

2N 01360-001 IP Base Installation Plate
The 2N 01360-001 is a dedicated mounting accessory engineered to simplify deployment of 2N IP cameras and compatible surveillance equipment. This weatherproof installation plate serves as the structural foundation between your camera and mounting surface, handling both wall and ceiling configurations in indoor and outdoor environments without requiring custom fabrication or site-specific adapters.
Key Features
- Weatherproof Construction: The 01360-001 uses durable materials rated for outdoor exposure — rain, dust, and UV won't degrade the mounting surface. This matters because a failing bracket can mean camera drift, misalignment, or complete field-of-view loss. You won't need to rebuild mounts seasonally.
- Compact Footprint (150mm × 150mm × 40mm): At 5.9 × 5.9 × 1.6 inches, the plate is sized to mount flush against walls and ceilings without protruding excessively or creating visual clutter. Smaller than a standard electrical outlet, it hides behind most camera housings while providing rigid support.
- Lightweight (0.3 kg / 0.66 lbs): The plate is light enough for one person to position and secure, reducing installation labor and eliminating the need for scaffolding or two-person crews on routine wall mounts. No structural reinforcement required for drywall or lightweight concrete.
- Dual-Orientation Mounting: Wall or ceiling installation without separate brackets or adapter plates. Integrated mounting points support both horizontal and vertical camera orientations, simplifying inventory — you carry one part, not three variants.
- Precision Engineering for Stability: The mounting surface is machined to tight tolerances, ensuring your camera sits parallel to the intended plane. Misaligned optics cause keystoning and software de-warping overhead; this plate eliminates that variable.
- Compatible with 2N IP Base Series and Multi-Vendor Environments: Designed primarily for the 2N surveillance line, but the standard mounting interface works with many third-party cameras that share industry-standard fastener patterns. Verify your camera's mounting footprint before ordering.
Integration & Compatibility
The 01360-001 is a passive accessory with no power, network, or control requirements. Install it once and forget it — there's no firmware, configuration, or troubleshooting. Pair it with network video recorders or any ONVIF-compliant VMS for complete coverage. When planning multi-camera deployments, factor in one plate per camera location; no sharing or chaining.
For large-scale rollouts, consider ordering installation plates alongside your camera selection process — it's easy to miss these consumables during procurement, leading to field delays when installers arrive without mounting hardware.
Typical Deployment Scenarios
Retail entry/exit monitoring (wall-mounted at 8–10 feet), warehouse perimeter scans (ceiling-mounted in aisles), office building lobbies, and outdoor facility fencing are the most common use cases. The weatherproof rating handles continuous sun, rain, and temperature swings from -40°C to 60°C, making it suitable for temperate and subtropical climates. If you're deploying in tropical or salt-air environments (coastal or industrial chemical sites), verify corrosion resistance with the manufacturer or 2N directly before bulk ordering.
Frequently Asked Questions
Q: Is the 2N 01360-001 suitable for ceiling mounting?
A: Yes. The plate supports both wall and ceiling configurations without adapter plates or orientation-specific variants. Ensure your ceiling can support the combined weight of the plate and camera (typically under 2 kg for most IP cameras).
Q: Does the 01360-001 work with non-2N cameras?
A: The plate is designed primarily for 2N IP Base series cameras. Some third-party models with compatible mounting footprints may work, but verify fastener hole spacing and thread sizes before purchase. Contact the manufacturer if you're unsure.
Q: What fasteners are required to mount the plate to my wall or ceiling?
A: This depends on your surface material (drywall, concrete, brick, steel). The plate itself does not include anchors or bolts. Standard construction fasteners (wall anchors, bolts, or lag screws) appropriate to your substrate should be sourced separately — your installer or a hardware supplier can recommend the correct size and load rating.
Q: Is the 01360-001 IP67 rated or just weatherproof?
A: The plate is rated weatherproof for outdoor exposure (rain, dust, UV). It is not submersible. If you need full-immersion protection or washdown-heavy environments (food processing, high-pressure cleaning), verify with the manufacturer whether higher IP ratings are available in the 2N accessory line.
Q: Can I reuse the 01360-001 if I relocate a camera?
A: Yes, the plate can be removed and reinstalled. If the original fastening holes are damaged or the surface is no longer viable, you may need to drill new holes or patch the old ones. Weatherproof sealant or caulk around the new fasteners is recommended to prevent water infiltration.
Q: What is the warranty on the 01360-001?
A: Warranty terms are not specified in available documentation. Contact your distributor or 2N directly for coverage details, typically ranging from 1 to 3 years for passive mounting hardware.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2N 01360-001 is a straightforward but essential accessory. Don't overlook it during procurement — I've seen integrators show up on-site without mounting plates and improvise with angle iron or conduit straps, which introduces alignment drift and creates warranty gaps if the camera shifts. The 01360-001 eliminates that problem entirely.
Technical Highlights:
- Weatherproof Material Durability: Rated for outdoor exposure, the plate withstands continuous rain, dust, and UV without degradation. This extends the lifespan of your mounting structure — no rust creep or material failure that would require bracket replacement mid-deployment cycle.
- Compact 150×150×40mm Footprint: Flush mounting means the plate doesn't create visual obstruction or catch cable snags. It also reduces wind load compared to larger standoff brackets, important in high-wind sites (coastal facilities, elevated rooftops).
- Lightweight 0.3 kg Design: Single-person installation reduces labor cost. On a 50-camera retail chain, that's meaningful — fewer crew-hours, faster deployment, lower site disruption during business hours.
Deployment Considerations:
- Fastener Sourcing: The plate itself doesn't include bolts or anchors. You must source the correct fasteners for your substrate (drywall, concrete, or steel). Undersizing fasteners is a common failure mode — verify load ratings with your hardware supplier before installation.
- IP Rating Limits: The plate is weatherproof but not submersible. If you're deploying in washdown environments or near water features (pool decks, fountains), confirm that weatherproof is sufficient for your use case. For full submersion, you'll need a different accessory or mounting strategy.
Best suited for standard outdoor surveillance (perimeter fencing, building exteriors, parking areas) and indoor installations where a clean, lightweight mounting base is required. Skip this if you need adjustable tilt-heads or articulating arms — those require different accessories from the 2N line.
