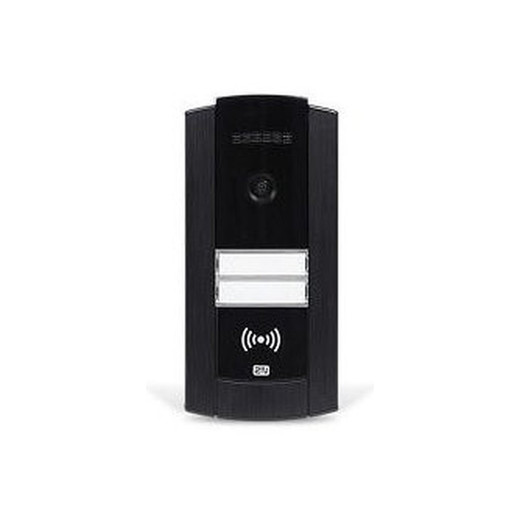

2N 01357-001 IP Base Compact Outdoor Intercom
Overview
The 2N 01357-001 is a wired, PoE-powered IP intercom engineered for outdoor access control and perimeter security. Unlike older proprietary systems, this device runs native SIP protocol—meaning it connects directly to your existing VoIP infrastructure (PBX, soft switches, enterprise telephony platforms) without requiring gateway appliances or translation layers. That cuts licensing costs and simplifies network administration across multi-site deployments. The 01357-001 fits into compact spaces on doorframes, pillars, or gate posts, making it practical for both new installations and retrofits where mounting real estate is limited.
Key Features
- SIP-Native Architecture: Direct integration with standards-based VoIP systems eliminates proprietary gateway dependencies. Your investment in existing PBX infrastructure is immediately usable—no translation hardware, no vendor lock-in, and no licensing surprises when you add a second or tenth unit across your facilities.
- 8MP Video with 4K Capability: Higher resolution means you can digitally zoom or crop footage without losing detail during incident investigation. When you need to capture visitor faces or license plates at distance without changing lenses, 8MP delivers the pixel density to make those identifications possible even after zoom.
- 30-Meter Infrared Range: IR extends usable range into complete darkness—critical for perimeter gates, parking lot access points, and after-hours facility monitoring. No supplementary floodlighting required, reducing installation cost and drawing unwanted attention to secured areas. At 30 meters (98 feet), the 01357-001 covers typical gate and entry scenarios without thermal imaging costs.
- Wide Dynamic Range (WDR): Handles the classic outdoor challenge: bright sky and dark shadows in the same frame. WDR balances exposure so you don't lose detail in either zone—essential when an intercom faces direct sun or is positioned near reflective surfaces like glass or metal. Without WDR, you'd either wash out the sky or bury faces in shadow.
- Compact Form Factor (156 × 94 × 82 mm / 6.14 × 3.70 × 3.23 inches): Lightweight at 1.54 lbs (0.7 kg), mounting on doorframes, pillars, or gate posts requires minimal structural reinforcement. Smaller profile also reduces weather resistance complications and looks less obtrusive at visitor-facing access points compared to bulkier dome or turret alternatives.
- Power over Ethernet (PoE) via IEEE 802.3af: Single Ethernet cable delivers both data and power (10/100/1000 Mbps support). No separate 12V or 24V supply lines to run—reduces cabling complexity, cost, and installation labor, especially in retrofit scenarios where power infrastructure is distant. The 01357-001 draws power efficiently, so it won't strain your PoE switch's budget if you're deploying multiple units.
- Outdoor-Rated Durability: Built to withstand outdoor temperature swings, humidity, and direct weather exposure without degradation. Verify your site's specific environmental category (temperature extremes, salt spray, etc.) against the datasheet before purchase to ensure the IP rating and temperature range match your climate.
- Motion Detection & Intrusion Analytics: On-device motion detection reduces false alerts and unnecessary recording. Intrusion detection can trigger alarms when motion crosses a user-defined boundary—useful for perimeter monitoring without human review of every event. These edge analytics reduce bandwidth and storage burden on your backend infrastructure.
Integration & Compatibility
SIP compliance means the 01357-001 works with any standards-compliant VoIP platform: Asterisk, FreePBX, commercial PBX systems, or cloud-hosted telephony services. Video is typically available via RTSP or direct IP integration depending on your VMS software. Confirm your specific VMS supports ONVIF Profile S or has a native 2N driver before deployment. For facilities running 2N IP cameras or other video security equipment, the 01357-001 intercom can be tied into the same network infrastructure and recording timeline, centralizing both communication and video logs.
Administrators managing network switches should verify PoE budget: the unit consumes power efficiently under the 802.3af standard, but confirm your switch's total available power if deploying multiple intercoms across a site. Access control integrators often layer the 01357-001 atop existing door controllers, using SIP signaling to alert operators or trigger unlock commands based on intercom interaction—no additional wiring required beyond Ethernet.
When to Choose a Different Model
If you require higher resolution (above 8MP) or significantly longer IR range (beyond 30m), consider higher-megapixel or extended-range variants in the 2N outdoor intercom family. If you're running on a proprietary (non-SIP) telephony system with no VoIP migration in sight, explore alternative 2N intercom models designed for legacy PBX environments—though we'd recommend testing a SIP bridge or PBX upgrade first, as it's often cheaper and simpler than locking in to proprietary hardware long-term. For indoor-only access control, the 01357-001 is oversized; look to 2N's indoor compact models instead.
Frequently Asked Questions
Q: Does the 2N 01357-001 work with my existing Asterisk or FreePBX system?
A: Yes. The 01357-001 is SIP-native, so it registers directly to any standards-compliant SIP PBX—Asterisk, FreePBX, and commercial platforms all support it. No gateway or translation layer needed.
Q: What's the maximum distance the 30m IR range covers?
A: 30 meters (98 feet). That's suitable for perimeter gates, parking lot entry points, and medium-distance outdoor access. If you need longer-range IR, a higher-spec 2N model or supplementary lighting is necessary.
Q: Can I power the 01357-001 with a non-PoE network switch?
A: No. The 01357-001 requires IEEE 802.3af PoE. You'll need a PoE-capable switch or an injector placed inline between a standard switch and the intercom.
Q: Does the 8MP resolution mean I can use it without a separate camera at the gate?
A: The 01357-001 includes video, but it's primarily an intercom—designed for two-way communication and identity verification. For comprehensive coverage or continuous monitoring at wider angles, pair it with dedicated outdoor IP cameras. The intercom handles the talk-down; the camera handles the full-scene recording.
Q: Is the 01357-001 suitable for salt-spray or corrosive environments?
A: It's rated for outdoor use, but salt spray and heavy corrosion require specific material certifications. Check the datasheet for your exact environment (coastal, industrial, etc.) before deployment. If you're near the ocean or a chemical facility, confirm stainless steel or coated housing compatibility first.
Q: What video codec does the 01357-001 use?
A: The evidence provided does not specify a particular video codec (H.264, H.265, MJPEG). Consult the manufacturer datasheet or contact the vendor to confirm codec support before integrating with your VMS.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2N 01357-001 solves a real problem: you need outdoor intercom capability, but you don't want to drag proprietary PBX hardware into your existing VoIP estate. SIP-native design means zero translation overhead—the unit talks directly to your Asterisk box or cloud PBX. The 8MP sensor and 30-meter IR give you workable video and night coverage without overengineering the deployment. Compact form factor (156mm width) keeps installation costs low on gate posts and pillar mounts where space is tight.
Technical Highlights:
- IEEE 802.3af PoE: Single-cable power and data eliminates separate 12V/24V runs. This matters at retrofit sites where running additional power lines would double installation cost and labor. The 01357-001 draws conservatively, so a standard 95W PoE switch can comfortably support 4–6 units depending on other loads.
- 8MP 4K with WDR: The combination handles mixed-light outdoor scenarios (harsh sun plus deep shadows) without losing face or license-plate detail. You can digitally zoom during playback without switching lenses or cameras.
- Motion and Intrusion Detection (edge-based): Analytics run on the device, not your server. This cuts bandwidth overhead and storage bloat—relevant when you're deploying across multiple sites and don't want every frame of every intercom going back to a central recorder.
Deployment Considerations:
- Confirm PoE budget on your switch. 802.3af tops out at ~13W per port, but add headroom if you're mixing the intercom with other PoE devices on the same switch infrastructure.
- Verify your VMS (Milestone, Axis Camera Station, Genetec, etc.) supports ONVIF Profile S or has a native 2N driver. Some older VMS platforms require middleware to ingest SIP intercom video; test integration in a lab before rolling out to production.
- The 30-meter IR is adequate for typical gate-entry and loading-dock scenarios, but not for long perimeter runs (100+ meters). If you need extended range, layer in dedicated thermal or long-range IR cameras.
Deploy the 01357-001 at the front door, gate, or parking lot entry of any facility running modern VoIP infrastructure. It eliminates the "two-system" burden: you're not maintaining separate access control and PBX networks. For warehouse automation sites with dock access and visitor screening, the intercom's motion and intrusion detection ties directly into your facility automation triggers—no extra integration box required.
