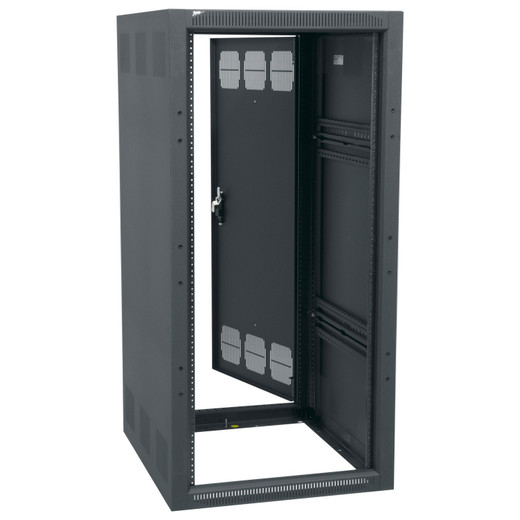

Middle Atlantic 25SP 27DP Plexi D&gs TOP - BGR-25SA27MDK-GS

Middle Atlantic BGR-25SA27MDK-GS 25U Freestanding Steel Rack Enclosure

Overview

The Middle Atlantic BGR-25SA27MDK-GS is a 25U freestanding rack enclosure built for security, AV, and IT deployments where physical protection, cable management depth, and equipment access all matter. With a 796.3 mm depth, 622.3 mm width, and a 500 kg rated maximum load capacity, this cabinet handles dense equipment builds — think NVRs, managed switches, patch panels, and access control hardware stacked in a single, lockable enclosure. The glass and steel front door keeps installed gear visible without requiring the cabinet to be opened, which matters in NOC environments and secured server rooms where visual status checks are routine. If you've been searching as BGR 25SA27MDK GS, this is the same unit.

Key Features

• 25U Front / 27U Deep Rack Space: The 25U front rack space accommodates standard 19-inch rackmount equipment, while the 27U rear depth gives you room to route and manage cables behind installed gear without cramping patch panels or power distribution units. On a dense security build — NVR, PoE switches, UPS, patch panel — that extra depth is the difference between a clean install and a cable nightmare.
• 500 kg Maximum Weight Capacity: At 500 kg rated load, this cabinet handles high-density configurations without structural concern. Heavy UPS units, multi-drive NVRs, and stacked switches won't push this enclosure anywhere near its limit — useful when you're commissioning a full security head-end rack that may be expanded over time.
• Glass and Steel Front Door with Key Lock: The glass-panel front door lets you visually inspect indicator LEDs and equipment status without opening the enclosure — a practical advantage in supervised equipment rooms. The key lock secures access, making this appropriate for deployments where physical security of the rack itself is a compliance requirement.
• All-Steel Construction with Steel Side Panels Included: The steel body and included steel side panels mean the enclosure ships as a complete, closed unit — no sourcing separate side panels. For deployments in utility closets or equipment rooms where the rack is accessible from multiple sides, enclosed side panels are a baseline requirement, not an option.
• 19-Inch (48.3 cm) Standard Rail Mounting: Standard 19-inch rack rails accept any EIA-310-compliant equipment — every major NVR, switch, UPS, and access control panel on the market. You're not locked into a proprietary mounting system.
• Inner Depth of 620 mm, Inner Height of 1,111 mm: The 620 mm inner depth (62 cm) accommodates most 1U and 2U rackmount appliances with room for rear cable routing. The 1,111 mm inner height translates to usable rack space that matches the 25U spec — no wasted U-slots from internal structure eating into your available space.
• RoHS Certified: RoHS compliance is a procurement requirement for many enterprise and government projects. The BGR-25SA27MDK-GS meets this standard, keeping your deployment on the right side of environmental compliance documentation without extra sourcing overhead.
• Black and Grey Finish: The black and grey color scheme is standard for equipment room deployments and blends with other rack infrastructure in mixed-vendor environments.

Integration and Compatibility

The BGR-25SA27MDK-GS follows the EIA-310 19-inch rack standard, which means it accepts any compliant rackmount equipment from any manufacturer — network video recorders, PoE switches, patch panels, UPS units, and access control panels. For security integrators building out a complete head-end, this cabinet pairs naturally with PoE network switches and rack-mount power distribution units. The 796.3 mm total depth and 620 mm inner depth accommodate full-depth servers and deep UPS units — check your deepest planned component against the 620 mm inner depth figure before finalizing your rack layout. The included rack rails and side panels mean the enclosure is ready to populate without additional procurement. If you're designing a full surveillance system head-end or a consolidated IT and security closet, the 25U capacity and 500 kg rating give you enough headroom to add capacity over a multi-year deployment lifecycle. Review Middle Atlantic's full rack and enclosure catalog for companion products including rack shelves, blanks, and cable management accessories that integrate directly with this frame.

Frequently Asked Questions

Q: What is the usable rack space inside the BGR-25SA27MDK-GS?

A: The BGR-25SA27MDK-GS provides 25U of front rack space and is rated for 27U depth, with an inner height of 1,111 mm (approximately 43.7 inches) and an inner depth of 620 mm (62 cm). All rack rails are included.

Q: What is the maximum weight this rack can support?

A: The maximum weight capacity is 500 kg. This is sufficient for high-density builds including full-depth UPS units, multi-drive NVRs, and stacked managed switches.

Q: Does the BGR-25SA27MDK-GS come with side panels?

A: Yes. Steel side panels are included with the enclosure. The cabinet ships as a complete closed unit — no separate side panel purchase required.

Q: Is the front door lockable?

A: Yes. The glass and steel front door includes a key lock. This supports physical access control compliance requirements common in secured equipment rooms and NOC environments.

Q: Is this rack RoHS compliant?

A: Yes. The BGR-25SA27MDK-GS carries RoHS certification, which satisfies environmental compliance documentation requirements for enterprise and government procurement.

Q: What is the outer footprint of this rack?

A: The outer dimensions are 622.3 mm wide × 796.3 mm deep × 1,270 mm tall (approximately 24.5
