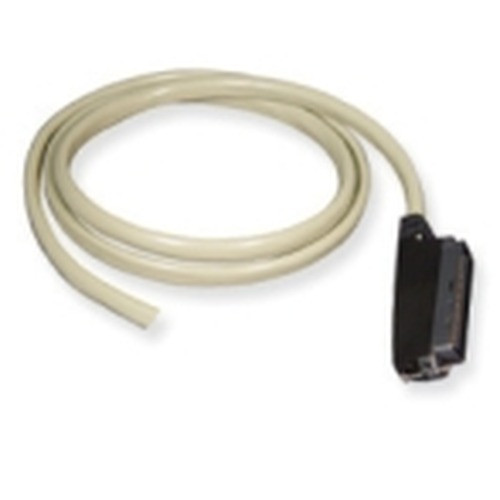

International Connectors and Cable ICPCSTMB25 25-Pair Cable Assembly
Overview
The International Connectors and Cable ICPCSTMB25 is a 25-foot cable assembly designed for specific alarm panel integrations. It features 25 pairs of conductors terminated with M-Blunt connectors, oriented at a 90-degree angle. This assembly is intended for scenarios where a clean, direct connection is required between control panels and peripheral devices, minimizing signal interference and simplifying installation in tight spaces.
Compatibility
This cable assembly is engineered for use with alarm control panels that utilize M-Blunt termination points. It is specifically suited for systems requiring 25 distinct conductor pairs for functions such as zone inputs, keypads, or auxiliary power distribution. Verify your control panel's M-Blunt connector pinout and pair count requirements against this assembly's specifications.
Installation Notes
The 90-degree angle of the M-Blunt connectors on the ICPCSTMB25 facilitates installation in enclosures with limited depth or where cables must route along a wall or panel edge. Ensure sufficient bend radius is maintained to avoid stressing the conductors or connectors. The 25-foot length provides moderate reach for connecting nearby devices to the main control panel.
What's in the Box
- 1x ICPCSTMB25 25-Pair Cable Assembly
