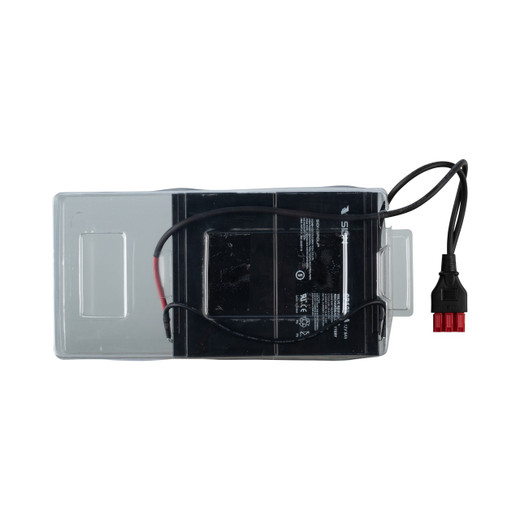

Panduit UVD024 SteadySine™ Battery Cartridge Set

The UVD024 is a replacement battery cartridge set for Panduit's UVP024 SteadySine™ UPS system. Security and network integrators deploying critical PoE infrastructure know that battery degradation is the weak link in backup power — cartridge-style replacement lets you swap aged cells in under five minutes without taking the UPS offline or re-terminating DC buses. This factory-matched set maintains the UVP024's power curve and runtime profile, ensuring your access control panels, IP cameras, and VoIP endpoints stay live during utility interruptions. The compact 2.91" × 6" form factor fits Panduit's hot-swap bay without tools.

Key Features

Factory-matched replacement for UVP024 SteadySine™ UPS systems

Hot-swappable cartridge design — no downtime during battery service

2.91" H × 6" W (74.1 × 152.6 mm) fits standard Panduit UPS battery bay

Pre-wired harness eliminates field termination and polarity errors

SteadySine™ compatibility maintains pure sine-wave output under battery mode

Drop-in replacement restores original runtime capacity

Single-pack configuration for UVP024 24VDC UPS models

The UVD024 cartridge set ships as a matched pair or set (depending on UVP024 configuration) with pre-attached harnesses that key into Panduit's tool-free connector system. You're not crimping Anderson PowerPoles or soldering ring terminals — slide the cartridge into the bay, seat the connector, and the UPS management controller recognizes the new cells and resets the replacement timer. The 24VDC chemistry (likely valve-regulated lead-acid, though Panduit's spec sheet doesn't break out cell count) is sized to deliver the UVP024's rated VA for its published runtime at 50%, 75%, and 100% load. Dimensions match the OEM bay precisely: 74.1 mm tall, 152.6 mm wide, with depth determined by your UVP024 chassis generation (check the service manual — early and late-revision bays have different depth stops).

Replace batteries every 3–5 years in climate-controlled telecom rooms, every 2–3 years in unconditioned spaces (mechanical rooms, roof-mount enclosures, outdoor IDF cabinets over 85°F ambient). Panduit's UPS firmware tracks cumulative discharge cycles and will flag the battery icon when capacity drops below 80% of nameplate — that's your service window. If you're supporting a hospital access control system or a courthouse camera matrix, keep one spare cartridge on hand and swap proactively at year three; if you're in a light-commercial office with daily IT staff, monitor the front-panel LEDs and order when the indicator goes amber. Don't mix old and new cartridges in multi-bay systems — mismatched internal resistance causes uneven load sharing and premature failure of the stronger cell. When you pull the old set, check the UPS intake fan for dust and verify the cooling vents are clear; thermal stress is the number-two battery killer after age.

Panduit's SteadySine™ architecture uses high-frequency switching and active PFC to deliver true sine-wave output with <3% THD — critical for PoE+ camera draws and VoIP phone power supplies that can't tolerate modified square-wave approximations. The UVD024 cartridge maintains that spec under battery mode because its discharge curve matches the inverter's design point. This isn't a generic "24V SLA" you'd pull from a golf cart supplier — it's engineered to the UVP024's charge profile, temperature compensation curve, and end-of-discharge voltage. That tight integration is why Panduit battery replacements cost more than white-box equivalents and why integrators spec them for deployments where five-nines uptime is a contract requirement, not a marketing claim.
