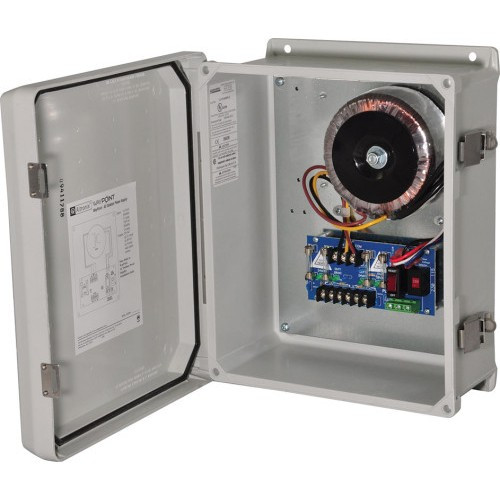

Altronix 24/28AC @ 12.5/10A NEMA 4/4X - WAYPOINT30A

Altronix WAYPOINT30A Concise Descriptor

Overview

The Altronix WAYPOINT30A is a rugged, NEMA 4/4X rated enclosure designed to house and protect power distribution for surveillance cameras and other critical infrastructure in harsh outdoor environments. It specifically provides 24VAC or 28VAC output at a combined 12.5A or 10A respectively, ensuring reliable operation for devices requiring AC power where environmental protection is paramount. This unit is ideal for mounting power supplies and battery backup systems directly at the camera location, minimizing voltage drop over long cable runs.

Compatibility

This enclosure is designed to house various Altronix power supply and battery backup models, including but not limited to the AL1012, AL1024, AL1224, AL600 series, and PD4/PD4AC series. It is compatible with surveillance cameras and other IP-based devices that require 24VAC or 28VAC input power and can accommodate the internal dimensions of the enclosure. Always verify the specific power supply model's dimensions against the WAYPOINT30A's internal capacity.

Installation Notes

The WAYPOINT30A features a gasketed door and cam lock for secure closure, meeting NEMA 4/4X requirements for protection against dust, rain, sleet, snow, and hose-directed water. It includes a mounting plate for internal components and multiple conduit knockouts for cable entry. Ensure all conduit connections are properly sealed to maintain the NEMA rating. The enclosure is designed for wall or pole mounting (pole mount bracket sold separately).

What's in the Box

• 1x WAYPOINT30A NEMA 4/4X Enclosure
• 1x Mounting Plate
• 1x Cam Lock
• 1x Gasket
