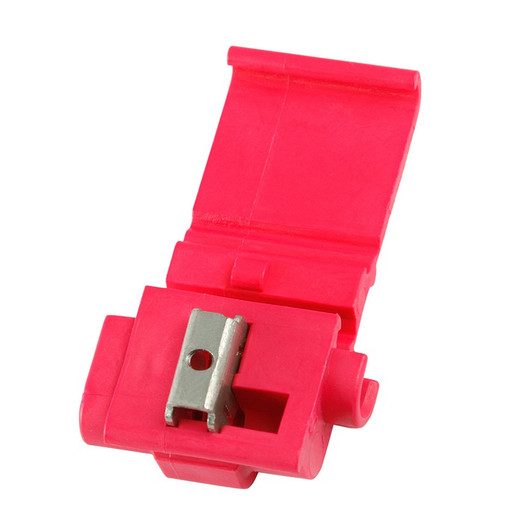

Panduit EQSP18D-Q StrongHold Quick-Installation Wire Splice

Overview

The Panduit EQSP18D-Q is a StrongHold™ quick-installation splice connector rated for 22-16 AWG (0.5-1.5 mm²) conductors — a workhorse termination component for security system installers, panel wiring technicians, and low-voltage integrators who need a reliable, code-listed splice without the time cost of traditional methods. If you're wiring access control panels, alarm loops, or intercom runs where clean, repeatable conductor joins matter, the EQSP18D-Q delivers a tinned-finish connection that meets cULus standards out of the box.

Key Features

• 22-16 AWG Compatibility (0.5-1.5 mm²): Covers the conductor sizes most common in low-voltage security and alarm wiring — from fine 22 AWG signal wire up through 16 AWG power feeds. One SKU handles the range typical in a mixed panel job, reducing the number of termination products you need to stock on a truck.
• Quick-Installation Design: The StrongHold™ splice mechanism is engineered for fast termination — no crimping tools required for insertion, which cuts per-connection time in high-count installations like large access control head-end wiring or multi-zone alarm panels. Speed compounds across hundreds of terminations in a single job.
• Tinned (Estañado) Finish: The tinned conductor finish resists oxidation at the contact interface, which matters in environments with humidity variation — mechanical rooms, exterior-adjacent panels, or any installation where you can't easily revisit connections. A corroded splice is a call-back; tinning reduces that risk.
• cULus Listed: Meets both UL (United States) and CSA (Canada) listing requirements. For commercial and institutional projects where the AHJ reviews termination hardware, cULus listing on the EQSP18D-Q keeps you on the right side of inspection without substitution paperwork.
• Compact Form Factor — 0.46 × 0.48 in (11.7 × 12.2 mm): The small footprint means it fits cleanly inside congested enclosures, back boxes, and junction points without adding bulk to already-tight wiring runs. Panel builders working in compact housings will appreciate the size discipline.
• Package Quantity of 25, Carton of 5,000: Available in 25-unit packs for project-specific purchasing or 5,000-unit cartons for high-volume contractors and distributors. Order the quantity that matches your job scale — no forcing a 500-piece minimum on a 30-connection panel job.

Integration & Compatibility

The EQSP18D-Q is compatible with copper conductors in the 22-16 AWG range, covering the vast majority of wire termination needs in structured cabling, alarm, and access control installations. It is a direct competitive alternative to the TV18-00QS splice. When integrating into access control or alarm panel wiring, confirm conductor gauge against the 22-16 AWG window — conductors outside this range require a different splice family. For Panduit wiring and termination products, the StrongHold™ line covers a broad AWG spectrum; select the appropriate variant based on your wire gauge. Pair with compatible cable management products for clean, serviceable installations. Review your local electrical code requirements; cULus listing satisfies most North American commercial AHJ requirements, but project-specific compliance review remains the installer's responsibility.

Frequently Asked Questions

Q: What wire gauge range does the EQSP18D-Q support?

A: The EQSP18D-Q is rated for 22-16 AWG conductors, equivalent to 0.5-1.5 mm² cross-section. This covers typical low-voltage signal and light power wiring used in alarm, access control, and intercom installations.

Q: Is the EQSP18D-Q cULus listed?

A: Yes. The EQSP18D-Q meets cULus standards, satisfying both U.S. (UL) and Canadian (CSA) listing requirements — relevant for commercial projects subject to AHJ inspection.

Q: How many splices come in a package?

A: The standard package quantity is 25 units. The full carton quantity is 5,000 units for high-volume procurement.

Q: Does the EQSP18D-Q require a special crimping tool?

A: The StrongHold™ quick-installation design is built for fast termination. Consult Panduit's installation documentation for the specific tool requirements for this splice family, as installation method details are not fully specified in the available product data.

Q: What is the finish on the EQSP18D-Q splice contacts?

A: The contacts use a tinned (estañado) finish, which provides oxidation resistance at the conductor interface — useful in environments with humidity variation or where connections won't be easily revisited.

Q: Is the EQSP18D-Q a direct substitute for the TV18-00QS?

A: The EQSP18D-Q is listed as a competitive alternative to the TV18-00QS. Verify dimensional and rating compatibility against your specific application requirements before substituting.

Ted Perry

The EQSP18D-Q sits in a category that installers often under-specify — wire splices. A bad splice is one of the hardest faults to trace on a live system, and the cULus listing on this StrongHold™ unit means you're not gambling on an uncertified connection in a commercial panel. The 22-16 AWG range is well-matched to the bulk of low-voltage security wiring, and the tinned finish is a detail that actually matters when you're connecting stranded copper in a mechanical room that sees temperature swings.

Technical Highlights:

• AWG Range (22-16 / 0.5-1.5 mm²): Hits the sweet spot for alarm loops, intercom runs, and access control reader wiring — single SKU covers most of a typical panel job without reaching for a second splice family.
• Tinned Contact Finish: Oxidation at the contact interface is a silent reliability killer in variable-humidity environments. The tinned coating on the EQSP18D-Q directly reduces the risk of resistance creep at the joint over time.
• cULus Listing: Both U.S. and Canadian listing in a single part — useful on cross-border projects or anywhere an AHJ will pull the panel for inspection. Saves substitution paperwork on commercial jobs.

Deployment Considerations:

• The 25-unit pack is appropriately sized for single-panel jobs; if you're doing a campus rollout with dozens of panels, price out the 5,000-unit carton — unit economics shift significantly at volume.
• Conductor gauge discipline is critical: the 22-16 AWG window is firm. Running 18 AWG power wire to a mag-lock? Check it fits before you're terminating at height. Outside the rated range, move to the appropriate StrongHold™ variant.

The EQSP18D-Q is the right call on commercial access control and alarm panel builds where cULus compliance is non-negotiable and the wiring mix falls consistently in the 22-16 AWG range — structured low-voltage termination in schools, healthcare facilities, and government installations where inspection is expected.
