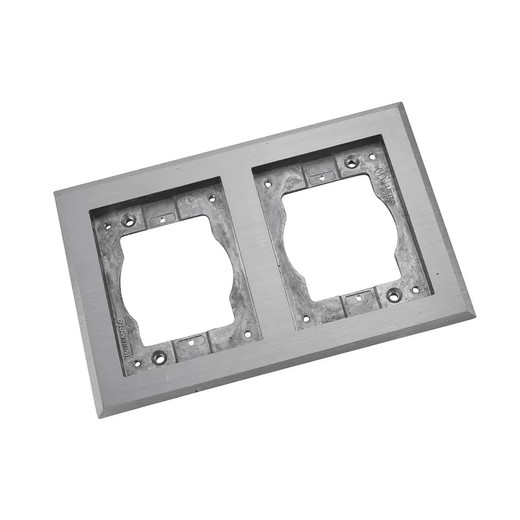

Middle Atlantic 2-GANG Carpet & Tile Flange NK - 827TCAL-NK

Middle Atlantic 827TCAL-NK 2-Gang Carpet & Tile Floor Box Flange

Overview

The Middle Atlantic 827TCAL-NK is a 2-gang rectangular carpet and tile flange in nickel finish, designed for flush-mount installation over the OmniBox concrete floor box series. Where infrastructure runs below a finished floor — AV, power, data, security endpoints — this flange closes out the opening cleanly and anchors the cover plate at floor level. The nickel finish suits commercial interiors where brushed metal or stainless-adjacent hardware is specified. Specify the 827TCAL-NK when your floor box is set in carpet or tile and you need a trim ring that sits flat, takes foot traffic, and matches a neutral commercial palette.

Compatibility

Designed for use with Middle Atlantic's OmniBox two-gang rectangular concrete floor box series. The flange fits the standard 2-gang rectangular opening for that product family. Verify the specific OmniBox model number against Middle Atlantic's floor box floor box accessories lineup before ordering — flange footprint and fastener pattern must match the installed box. Not interchangeable with single-gang or round OmniBox configurations.

Installation Notes

Shipping dimensions of 10.5" x 16" x 0.63" (266.7 x 406.4 x 16.1 mm) reflect packaged size; the installed flange profile is low-profile at under 0.63" above the finished floor surface. Install after floor covering is in place — the flange is designed to terminate flush against carpet or tile, not to be set in concrete. Ensure the floor box is positioned at the correct finished-floor height prior to tile or carpet installation, as the flange cannot compensate for a box set too deep or too proud.
