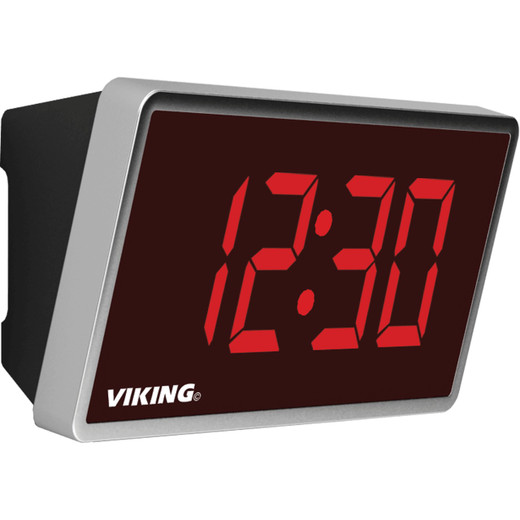

Viking 2.5in. in. Digital Clock Surface Mount - CL-SMD2

Viking Electronics CL-SMD2 2.5" Wireless Digital Clock Surface Mount Housing

The CL-SMD2 is the surface mount housing for Viking's CL-D2 2.5" wireless digital clock, designed as a drop-in component of the Viking Electronics CL Series synchronized clock system. If you're deploying a coordinated timekeeping infrastructure across a school, campus, restaurant, or house of worship, the CL-SMD2 gives you a clean, wall-flush installation point for the 2.5" digital display — no conduit chases required, powered and synced entirely over Viking's 915-928 MHz RF link.

Overview

The CL Series architecture centers on three components: the CTG-2A master clock, the CL-RFT RF transmitter, and the wireless clock units themselves. The CL-SMD2 is the surface mount enclosure pairing — house it anywhere within the system's 3,300 ft transmission range and it will receive time data wirelessly from the CL-RFT. For larger facilities needing a bigger display, Viking offers the CL-SMD4 (4" surface mount digital) in the same family. If you're evaluating the right display size or enclosure type for your layout, see the full range of synchronized clock systems for comparison.

Key Features

• 915–928 MHz RF Operation: Operating in the 915–928 MHz ISM band keeps this system clear of Wi-Fi and Bluetooth congestion. In dense environments like cafeteria buildings or multi-floor campus facilities, this matters — you're not competing with dozens of wireless access points for airtime.
• 3,300 ft Transmission Range: A single CL-RFT transmitter covers up to 3,300 ft of open-air distance. In practice, this means a single transmitter can serve an entire mid-size school building or restaurant complex — reducing infrastructure cost compared to wired or short-range systems that require repeaters at every corridor junction.
• 1 Watt (30 dBm) RF Output: The CL-RFT transmitter's 1W output is what enables that 3,300 ft range. For installations with concrete walls or metal partitions, this power headroom provides meaningful signal penetration — verify against your specific building materials during pre-deployment planning.
• 90–230V AC Input Voltage: Universal AC input means the CL-SMD2 installs directly on standard North American or international mains without voltage converters. Useful for multi-site deployments or facilities with legacy electrical infrastructure at non-standard voltages.
• 0°C to 50°C Operating Range: Suitable for conditioned interior spaces — classrooms, lobbies, dining areas, and narthexes. Not rated for outdoor or unheated storage environments; keep installs inside the thermal envelope.
• 7" Antenna: The antenna is an integral part of the CL-RFT transmitter, not the clock unit itself. At 7", it's designed for standard wall or ceiling-box mounting alongside the transmitter — factor the antenna clearance into your transmitter placement, especially in drop-ceiling installations.
• FCC Part 15 Compliance: Certified under FCC Part 15 for unlicensed RF operation. No additional spectrum licensing is required for US deployments — straightforward for facilities managers handling permit documentation.
• Surface Mount Form Factor (11" × 8" × 1.7"): The housing ships at a shallow 1.7" depth, so it mounts cleanly against drywall or masonry without protruding awkwardly. At 11" × 8", the overall footprint is modest — appropriate for hallway, classroom wall, or above-door installations where ceiling height is limited.
• Scalable Multi-Clock Architecture: Because each CL-SMD2 receives wirelessly, you can add clock endpoints without running new cabling to each one. Schools and campuses can expand room-by-room or building-by-building as budget allows, reusing the same CTG-2A and CL-RFT infrastructure.

Integration & Compatibility

The CL-SMD2 (often searched as CL SMD2) is designed exclusively for use within Viking's CL Series synchronized clock ecosystem. It requires the CL-D2 2.5" digital clock module and relies on RF synchronization from the CL-RFT transmitter, which in turn takes its time reference from the CTG-2A master clock. It is not a standalone clock and does not pair with third-party master clocks or RF transmitters. For facilities running a network time infrastructure or NTP-referenced system, confirm compatibility with Viking's CTG-2A at the head-end before specifying the wireless CL endpoints. Power requirements for the clock endpoints are handled via the 90–230V AC supply; plan your outlet or junction box locations accordingly during rough-in. Installers handling low-voltage building systems will find the RF-only distribution model straightforward — no CAT5 runs to individual clock locations simplifies coordination with general contractors.

Frequently Asked Questions

Q: What clock module does the CL-SMD2 house?

A: The CL-SMD2 is the surface mount enclosure for the CL-D2 2.5" digital clock. It is not a standalone clock — the CL-D2 module mounts inside the CL-SMD2 housing.

Q: What other components are required to deploy the CL-SMD2?

A: A complete CL Series installation requires at minimum: the CTG-2A master clock, the CL-RFT RF transmitter, and the clock endpoint (the CL-D2 inside the CL-SMD2 housing). The CL-RFT handles wireless transmission to all clock endpoints in range.

Q: What is the maximum transmission range for the CL Series RF system?

A: The CL-RFT transmitter has a rated transmission range of 3,300 ft. Range in real-world installations will vary based on building construction, walls, and obstructions.

Q: Is the CL-SMD2 suitable for outdoor installation?

A: No. The operating temperature range is 0°C to 50°C and no outdoor or weatherproofing rating is specified in Viking's documentation. The CL-SMD2 is designed for conditioned interior environments.

Q: What RF frequency does the CL Series system use, and does it require a license?

A: The system operates on the 915–928 MHz ISM band and is FCC Part 15 certified. No RF license is required for US deployments.

Q: Is there a larger display option in the same CL Series family?

A: Yes. Viking offers the CL-SMD4, which is the 4" surface mount digital clock in the same CL Series. Both use the same CTG-2A and CL-RFT infrastructure.

Karl Wilson

The CL-SMD2 is the kind of component that gets specified at the start of a school or campus clock refresh and forgotten — until the installer asks where the nearest outlet is. The housing is straightforward, but the system context matters: this is a receive-only wireless endpoint in Viking's 915–928 MHz CL Series, and the 3,300 ft rated range of the CL-RFT transmitter is what determines your infrastructure footprint, not the clock count.

Technical Highlights:

• 915–928 MHz / 1W (30 dBm) RF: The ISM band choice keeps you out of the 2.4 GHz and 5 GHz congestion zones that plague modern buildings. The 1W transmit power at the CL-RFT is the range enabler — at 3,300 ft open-air, you're covering a substantial single-building footprint from one transmitter head-end.
• Universal 90–230V AC Input: The broad AC input range eliminates transformer selection headaches on multi-building campuses or retrofits where panel voltage history is uncertain. Plug-and-play at the outlet regardless of local supply.
• 11" × 8" × 1.7" Housing: The shallow 1.7" depth is what makes this a true surface mount — it doesn't read as a box bolted to the wall. Clean sight lines matter in school corridors and hospitality environments where aesthetics are part of the specification conversation.

Deployment Considerations:

• The CL-SMD2 is a housing, not a standalone clock. Confirm the CL-D2 2.5" digital module is in your BOM — it does not ship as part of this SKU based on available evidence. Missing the clock module is a common source of punch-list delays on multi-clock installs.
• Operating temperature tops out at 50°C — fine for conditioned space, but mechanical rooms, loading docks, or above-ceiling plenum mounting are out of scope. Plan clock locations in the conditioned envelope only.

For a K-12 school or mid-size restaurant group deploying 10–40 synchronized clocks across multiple rooms without the cost and coordination of home-run wiring to each endpoint, the CL-SMD2 with the CL-D2 module and a single CL-RFT transmitter is a viable, low-infrastructure path — provided every clock location falls within the 3,300 ft RF radius and inside a conditioned space.
