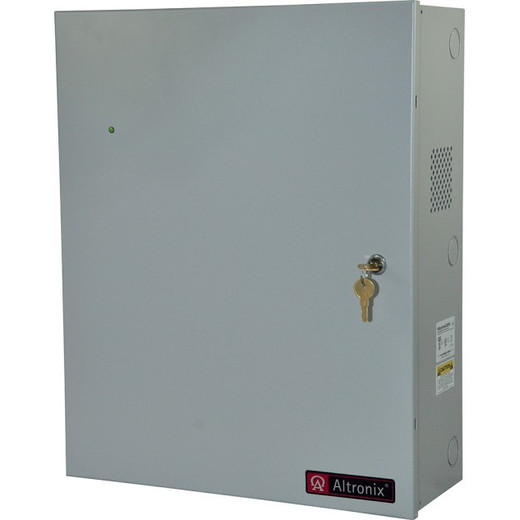

Altronix 2-24V@10A/2-ACM8/BC750/220V - MAXFIT77FV

Altronix MAXFIT77FV Concise Descriptor

Overview

The Altronix MAXFIT77FV is a versatile power distribution module designed to efficiently power multiple surveillance devices from a single source. It provides a regulated 2 to 24 VDC output at a total of 10 Amps, ideal for consolidating power for cameras, access control readers, or other low-voltage security equipment. This unit is particularly useful in installations where running individual power supplies for each device is impractical or costly, streamlining wiring and reducing potential points of failure. The MAXFIT77FV is built for integration into larger power management systems, offering flexibility for various system architectures.

Compatibility

This power distribution module is designed to work with a wide range of low-voltage DC powered surveillance and security equipment. It is compatible with Altronix sub-assemblies such as the ACM8 and BC750 series, allowing for modular expansion of power output and control. The unit accepts 220V AC input, making it suitable for international deployments. It is intended for use with devices that require a stable DC voltage within the 2-24V range and do not exceed the 10A total current limit. Specific compatibility should be verified against the power requirements of individual end devices.

Installation Notes

The MAXFIT77FV requires a 220V AC input connection. Output terminals are clearly marked for voltage and ground, facilitating straightforward wiring to connected devices. Ensure that the total current draw of all connected devices does not exceed the module's 10A capacity to prevent overload. Proper ventilation should be maintained around the unit to ensure optimal thermal performance. Installation should be performed by qualified personnel familiar with electrical wiring and low-voltage power distribution systems.

What's in the Box

• 1x Altronix MAXFIT77FV Power Distribution Module
