Panduit 1M 2FIBER OM4 1.6MM PATCH CORD - FZ2ERQ1Q1SNM001

Panduit FZ2ERQ1Q1SNM001 1M 2Fiber OM4 Patch Cord

Overview

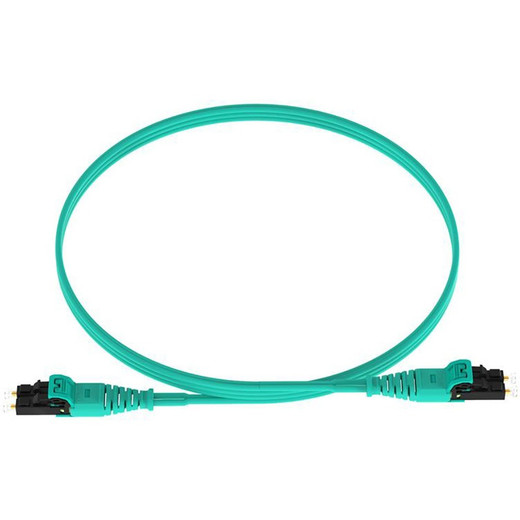

The Panduit FZ2ERQ1Q1SNM001 is a 1-meter, duplex, OM4 fiber optic patch cord designed for high-bandwidth applications within data centers and enterprise networks. Its 50-micron multimode fiber construction supports 10 Gigabit Ethernet up to 300 meters and 40/100 Gigabit Ethernet up to 100 meters, making it suitable for switch-to-switch or switch-to-server connections where high data throughput is critical. The FZ2ERQ1Q1SNM001 ensures reliable signal transmission for demanding surveillance systems and IT infrastructure.

Compatibility

This patch cord is compatible with all standard LC connectors and is designed for use with OM4-rated network equipment, including switches, servers, and transceivers from major manufacturers. It is suitable for deployments utilizing 10GbE SFP+ modules, 40GbE QSFP+ modules, and 100GbE QSFP28 modules where OM4 performance is specified.

Installation Notes

Maintain a minimum bend radius of 1.6 inches (40mm) during installation to prevent signal degradation. Ensure connectors are clean before mating to avoid performance issues. The 1.6mm cable diameter is designed for standard LC port density.

What's in the Box

• 1x Panduit FZ2ERQ1Q1SNM001 1M Duplex OM4 Fiber Patch Cord
