Middle Atlantic 19SP 27DEEP Plexi Door & Studio Teak TOP - BGR-19SA27MDK-C8

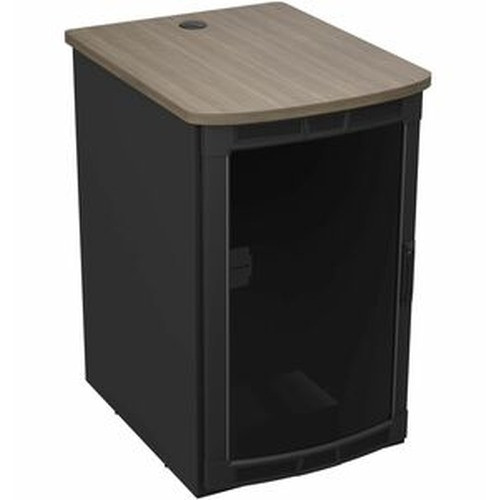

Middle Atlantic BGR-19SA27MDK-C8 19RU Mobile AV Rack with Plexi Door and Studio Teak Top

Overview

The Middle Atlantic BGR-19SA27MDK-C8 is a 19-unit mobile AV rack built for production environments, broadcast setups, and integrated AV installations where you need serious structural capacity in a cabinet that moves. With a UL-listed 1,100 lb load rating, 24.4 inches of usable depth, and a Studio Teak wood laminate top, this is a rack designed for gear-heavy touring rigs and permanent installs alike — not a commodity roll-about. Manufactured in the USA and TAA-compliant, it fits federal and government procurement requirements without a sourcing workaround.

If you are specifying Middle Atlantic rack enclosures for a control room, broadcast truck, or systems integration project, the BGR-19SA27MDK-C8 (often searched as BGR 19SA27MDK C8) deserves a close look before you finalize your enclosure choice.

Key Features

• 1,100 lb UL-Listed Load Capacity: This is a verified structural rating — 499 kg of gear supported across 19 rack units. In practice, it means you can fully populate the rack with heavy amplifiers, servers, or broadcast hardware without worrying about the frame deflecting or the casters failing under load.
• 24.4 in Usable Depth (62 cm): Most deep gear tops out around 20–22 inches. The 24.4 inch usable depth (within a 31.35 inch total cabinet depth) gives you clearance for long chassis, cable management, and rear-door airflow without forcing you to leave rack units empty for ventilation.
• 19 RU Usable Height (33.25 in / 84.5 cm): Nineteen rack units in a cabinet that stands 39.5 inches total — a practical height for standing access without a ladder. For mobile rack enclosures used in live production, that balance of capacity and accessibility matters on the road.
• Forward Rackrail Design: The forward rackrail positions equipment toward the front of the cabinet, which is correct for deep chassis that need rear service access. Combined with the 24.4 inch usable depth, this configuration supports gear up to roughly 20 inches deep with rear cable clearance intact.
• Plexi Front Door + Rear Door: The plexi front door lets you visually confirm indicator lights and display status without opening the cabinet — useful in live environments where you need to monitor gear mid-show. The rear door provides a managed pathway for power and signal cabling and helps contain airflow when used with active cooling.
• Studio Teak Wood Laminate Top: The laminate top serves a functional purpose beyond aesthetics — it provides a stable work surface for laptops, tablets, or script binders during production. In broadcast and AV integration contexts, this is a real workflow feature, not decorative trim.
• 25mm x 150mm Swing Handle: Oversized swing handles are the correct choice for a 165 lb (74.8 kg) empty cabinet. The handle dimensions give enough leverage to maneuver a fully loaded rack through doorways or across uneven surfaces without improvising a grip.
• Steel Construction with Black Wrinkle Powder Coat: Steel frame with a textured powder coat finish resists scratching during transit and installation. In rental and touring environments where racks get loaded and unloaded repeatedly, this finish holds up considerably better than smooth paint.
• Monitor Mounting Support: The cabinet accommodates monitor mounting, which matters for confidence monitoring setups in broadcast racks or operator display panels in control rooms. Check Middle Atlantic's accessory catalog for compatible monitor mounting hardware for this frame.
• Forward Compatible Design: Middle Atlantic's forward-compatible architecture means accessories and components designed for the BGR platform will continue to fit as the product line evolves — reducing the risk that a future expansion purchase becomes an incompatibility problem.
• TAA Compliant, Made in USA: Federal, state, and defense procurement officers can specify this rack without a TAA waiver. Country of origin is confirmed as USA per Federal Ops data — not just assembly, but origin.

Integration and Compatibility

The BGR-19SA27MDK-C8 follows EIA-310 19-inch rack standards, so any standard rack-mount equipment will fit without adapter panels. The forward rackrail configuration is compatible with the full range of rack accessories in the Middle Atlantic BGR platform, including side panels, blanking panels, power strips, and cable management. The 24.5-inch overall width (62.2 cm) should be verified against your transport case or installation bay dimensions before ordering — mobile racks at this depth are wider than shallow alternatives.

For systems integrators planning a full AV rack build, pairing this enclosure with a structured rack power distribution unit and horizontal cable managers will make the most of the available depth and the front/rear door access design. The rear door clearance supports both horizontal and vertical cable runs without blocking the usable 24.4-inch gear depth.

Frequently Asked Questions

Q: What is the load capacity of the BGR-19SA27MDK-C8?

A: The BGR-19SA27MDK-C8 carries a UL-listed load capacity of 1,100 lbs (499 kg). This is a verified structural rating, not a marketing estimate.

Q: Is the BGR-19SA27MDK-C8 TAA compliant?

A: Yes. The BGR-19SA27MDK-C8 is TAA compliant and manufactured in the USA per Federal Ops country of origin data, making it eligible for federal and government procurement without a waiver.

Q: How much usable rack depth does the BGR-19SA27MDK-C8 provide?

A: The usable depth is 24.4 inches (62 cm). The total cabinet depth is 31.35 inches, with the remaining space allocated to the door hardware, rear door, and cable management clearance.

Q: How many rack units does the BGR-19SA27MDK-C8 hold?

A: The BGR-19SA27MDK-C8 provides 19 rack units (RU) of usable mounting space within a 33.25-inch usable interior height.

Q: What does the Studio Teak top on the BGR-19SA27MDK-C8 consist of?

A: The top surface is a wood laminate finished in Studio Teak. It provides a functional work surface for production environments and is part of the MDK (Monitor and Desktop Kit) configuration of the BGR mobile rack line.

Q: What is the shipping weight of the BGR-19SA27MDK-C8?

A: The cabinet ships at 191 lbs (86.6 kg). The product weight (empty cabinet) is 165 lbs (74.8 kg). Plan your receiving and installation crew accordingly — this is a two-person lift minimum.

Ted Perry

The spec that stands out most on the BGR-19SA27MDK-C8 is the 1,100 lb UL-listed load rating in a mobile cabinet — that is not a number you see on most roll-about racks, and it changes how you can spec a touring or broadcast system. Most integrators I work with have had to split heavy builds across two lighter racks; this one eliminates that constraint for a 19 RU footprint.

Technical Highlights:

• 24.4 in Usable Depth: Deep enough for full-length server chassis, high-powered amplifiers, and broadcast hardware that would overhang a standard 20-inch rack. Within the 31.35-inch total depth, that clearance is real gear space, not nominal.
• Steel Frame + Black Wrinkle Powder Coat: The textured finish is a practical call for touring use — it hides the dings and scuffs that accumulate over repeated load cycles where smooth-finish racks start looking rough after a season.
• TAA / USA Origin: Federal Ops country of origin is confirmed USA. For government AV integrators and defense facility projects, that is a procurement requirement, not a preference — and it is baked in here without an upcharge or sourcing exception.

Deployment Considerations:

• The empty cabinet weighs 165 lbs (74.8 kg) and ships at 191 lbs — budget for a two-person receiving team and a freight lift-gate if delivery is to a facility without a loading dock.
• The 24.5-inch overall width (62.2 cm) is wider than shallow-depth alternatives; verify your transport case dimensions and doorway clearances before the cabinet ships to a venue or installation site.

This rack is the right call for a broadcast production truck build or a touring live-sound rack where the combination of deep usable space, a verified structural load rating, and a working surface on the Studio Teak top all pull in the same direction — a single, fully populated mobile enclosure instead of two lighter racks lashed together.
