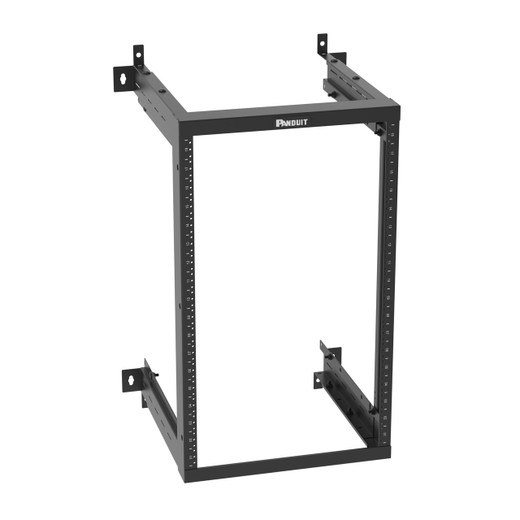

Panduit AWMR18 PanZone™ Wall-Mount Rack with Adjustable Depth, 18RU
Distributed network closets, telecom rooms, and security equipment installations face a common constraint: mixed-depth equipment in spaces where floor racks won't fit. The Panduit AWMR18 PanZone™ wall-mount rack solves this with tri-position depth adjustment—18", 21.5", or 25" mounting planes from a single part number—eliminating SKU proliferation while accommodating shallow patch panels, mid-depth switches, and deep UPS or NVR chassis in the same 18RU frame. Powder-coated steel construction supports 200 lb loads, and the single-person installation design cuts labor time on retrofit jobs where crane access or two-person crews aren't available.
Key Features
- Tri-position adjustable depth: 18", 21.5", or 25" equipment mounting planes from one SKU
- 18RU vertical capacity in 33.7" overall height × 20.31" width form factor
- 200 lb distributed load capacity for mixed equipment types
- 12-24 threaded mounting rails with bottom-up rack unit numbering printed on frame
- Side rail slots accept Panduit Tak-Ty™ cable ties or bend-radius control accessories
- Single-person installation design—no crane or second installer required
- Black powder-coated finish for commercial environments
- UL 2416 listed for enclosed and non-enclosed rack compliance
The adjustable depth system uses repositionable equipment mounting rails that lock into three discrete positions without tools or field modification of the frame. When you're mounting 10" deep PoE switches, set the rails to the 18" position for a compact footprint; when a 24" deep enterprise UPS or 4U recorder enters the same rack two quarters later, reposition the affected rail sections to the 25" plane in under ten minutes. This eliminates the SKU guessing game during design—you're not locked into a fixed 18" or 25" rack decision at bid time, and inventory teams stock one part number instead of three. The 12-24 threaded mounting rails use standard cage nuts (not included) and feature embossed rack unit numbering that reads bottom-to-top per EIA-310 convention, so technicians mounting equipment in dimly lit closets can count RU positions without a flashlight and tape measure. Side rails incorporate continuous slot patterns that accept Panduit's Tak-Ty cable tie mounts or snap-in bend-radius control fingers, giving you vertical cable management without after-market J-hooks or zip-tie improvisation.
The single-person installation design matters on retrofit jobs in occupied buildings where you're working nights or weekends with minimal crew. Four wall-mount keyhole slots on the rear frame accept 3/8" lag bolts (not included) into wood studs or concrete anchors, and the frame geometry allows one installer to hold the rack level, mark holes, and secure the top mounts before adding bottom fasteners—no temporary bracing or second set of hands required. Wall-mount placement saves 24" of floor depth compared to two-post floor racks, critical in 6'×8' IDF closets shared with HVAC or janitorial equipment. The 200 lb capacity supports realistic mixed loads: six 4-port PoE switches (12 lb ea), two 2RU UPS units (45 lb ea), one 4U NVR (30 lb), patch panels, and a small KVM, all within rated capacity with safety margin. UL 2416 listing covers both enclosed rack (when paired with compatible doors and side panels) and open-frame configurations, meeting commercial building code requirements without field labeling or AHJ negotiation.
PanZone racks ship as complete welded frames—you're not field-assembling rails and uprights with fifty bolts per rack. Pair with Panduit's hinged Plexiglass doors (sold separately, see AWMD series) for secure equipment rooms, or run open-frame in controlled-access telecom spaces. The powder-coated black finish resists corrosion in HVAC-adjacent installations where condensation or temperature swings challenge painted steel, and the finish matches Panduit's broader structured cabling and cable management ecosystem if you're standardizing on one vendor for racks, wire management, and connectivity. For distributed enterprise networks, multi-tenant buildings, or security system head-end rooms where every vertical inch and floor square foot has a cost, the AWMR18 delivers commercial-grade capacity and flexibility without the footprint or complexity of floor-mount alternatives.
