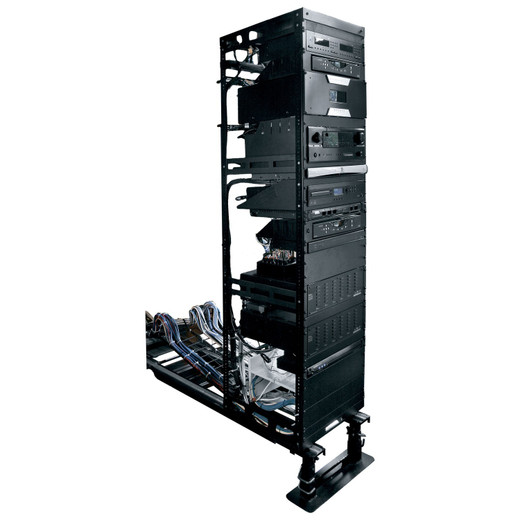

Middle Atlantic SAX-26 26RU In-Wall Slide-Out Rack

Overview

The Middle Atlantic SAX-26 is a 26-rack-unit in-wall slide-out rack engineered for deployments where floor space is a hard constraint but full-depth equipment access cannot be compromised. At 16.5 inches of usable depth and a 650 lb weight capacity, the SAX-26 handles real security and AV loads — NVRs, patch panels, managed PoE switches, and UPS units — without the footprint of a freestanding open frame or enclosed cabinet. If you are speccing a network video recorder closet inside a finished wall cavity or a low-profile telecom room, this rack is purpose-built for that scenario. The black powder coat finish is unobtrusive in finished environments, and the slide-out mechanism gives full front and rear access without pulling equipment.

Key Features

• 26 Rack Units (45.5 in usable height): Twenty-six RU of usable mounting space handles a fully loaded NVR stack, patch panel, managed switch, and a 2U UPS with room to grow — without committing to a full 42U cabinet that dominates a small IDF room.
• 650 lb Weight Capacity: Most in-wall slide racks top out at 200–300 lb. The SAX-26's 650 lb rating means you can mount enterprise-class NVRs with multiple drive bays, a rackmount UPS, and a dense 24-port PoE switch simultaneously without worrying about the slide mechanism failing under load.
• 16.5 in Usable Depth: Matches the footprint of standard 1U and 2U network switches and most mid-range NVRs. Deeper equipment (some 4U+ servers) may require rear cable management planning — check your heaviest component's depth against this spec before ordering.
• 10-32 Threaded Rail System: Standard 10-32 rack rails mean compatibility with the widest range of rackmount equipment — no cage nuts required, no adapter kits. Speeds up installation and simplifies future equipment swaps when a client upgrades their recorder or switch.
• 19.25 in Width: Standard 19-inch rack-mounting width accommodates all EIA-310-compliant equipment, keeping your options open across every major manufacturer.
• Black Powder Coat Finish: The finish holds up in utility environments and presents cleanly in finished AV or security closets without requiring additional cosmetic treatment.
• Slide-Out Mechanism (48 Extension): Full extension lets a technician reach rear cable connections, power strips, and ventilation without removing equipment from the rack — critical for maintenance visits in tight in-wall installations where there is no room to kneel behind the unit.

Integration & Compatibility

The SAX-26 is designed to house standard 19-inch EIA-310-D rackmount equipment. The 10-32 threaded rails accept rackmount hardware from virtually every Middle Atlantic product line as well as third-party NVRs, switches, patch panels, and power distribution units without adapter hardware. At 16.5 inches of usable depth, it accommodates the majority of 1U through 4U security and networking equipment on the market. Pair with a rackmount UPS within the same rack to keep recorders and managed switches online through short outages — a common requirement in commercial security installations. Verify rear cable egress dimensions against your wall cavity before rough-in; the slide-out mechanism requires clear lateral travel space equal to the rack's installed depth plus extension clearance. Consult Middle Atlantic's installation documentation for rough-in framing dimensions and stud bay requirements specific to the SAX-26.

Frequently Asked Questions

Q: What is the maximum weight the SAX-26 can hold?

A: The SAX-26 is rated for a 650 lb (294.8 kg) weight capacity, making it suitable for fully loaded NVR, switch, and UPS combinations common in commercial security installations.

Q: How many rack units does the SAX-26 provide?

A: The SAX-26 provides 26 rack units (RU) of usable mounting space, with a usable height of 45.5 inches (115.6 cm).

Q: What rail type does the SAX-26 use?

A: The SAX-26 uses standard 10-32 threaded rack rails, which are compatible with EIA-310-D rackmount equipment from virtually all major manufacturers — no cage nuts required.

Q: How deep is the SAX-26, and will my NVR fit?

A: The SAX-26 has a usable depth of 16.5 inches (41.9 cm). Most 1U–4U NVRs and managed switches fit comfortably; verify your specific equipment's depth against this figure before ordering, especially for high-density storage appliances.

Q: What is the overall height and width of the SAX-26?

A: The SAX-26 measures 50.19 inches (127.5 cm) tall and 19.25 inches (48.9 cm) wide overall, housing 26 RU of usable mounting space in a standard 19-inch EIA rack width.
