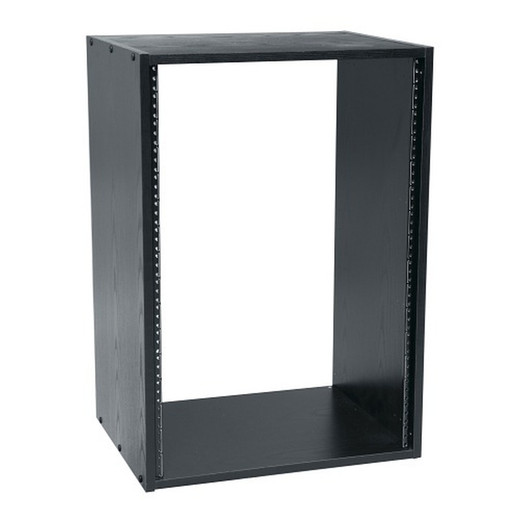

Middle Atlantic 16 Space (28IN. ) 16IN. Deep Ready-to-Assemble RK Series Rack Black Wood - RK16

Middle Atlantic RK16 16U Knockdown Open Frame Rack

Overview

The Middle Atlantic RK16 is a 16-rack-unit, ready-to-assemble open rack built for AV, security, and IT equipment rooms where a permanent welded enclosure is unnecessary. At 29.48 in. tall with 28 in. of usable rack height, the RK16 fits a full complement of NVRs, patch panels, network switches, and power distribution units without the freight cost or floor-space penalty of a closed cabinet. The black wood grain melamine finish integrates cleanly into finished control rooms, server closets, and back-of-house AV installations where exposed metal would look out of place. The knockdown design ships flat, reducing freight damage risk and letting a single installer carry it through a standard door before assembly — a practical advantage on retrofit jobs where elevator access is limited.

Compatibility

The RK16 accepts any standard 19-inch rack-mount equipment using 10-32 threaded rails — the dominant standard across network switches, NVRs, UPS units, patch panels, and AV processors. Compatible rack-mount equipment families include network video recorders, PoE network switches, unmanaged and managed patch panels, 1U and 2U UPS systems, and KVM switches. The 15.41 in. usable depth accommodates most 1U–2U devices up to approximately 15 in. deep; verify your deepest chassis against this figure before spec'ing high-density GPU appliances or full-depth servers. The 200 lb rated weight capacity supports mixed-load builds — for example, a 1U NVR at ~15 lb, a 1U PoE switch at ~8 lb, a 2U UPS at ~35 lb, and a full complement of 1U accessories — without approaching the load limit. For broader rack and enclosure options in the Middle Atlantic line, the RK series spans 8U through 45U in the same wood grain melamine format, so the RK16 slots into a matched multi-rack installation without finish mismatch. Pair with rack-mount power distribution and cable management accessories using the same 10-32 mounting standard.

Installation Notes

Assembly uses standard 10-32 hardware throughout. The knockdown format requires squaring the frame before tightening fasteners — use a carpenter's square on the front rail plane; racking (parallelogram distortion) is the most common field error on RTA enclosures. The 20.4 in. overall width requires a minimum 22 in. clear floor footprint to allow side clearance for cable egress. Leveling feet or casters are not included; verify floor-mounting or caster kit compatibility with Middle Atlantic RK-series accessories before ordering if the rack will be repositioned post-install.
