Description

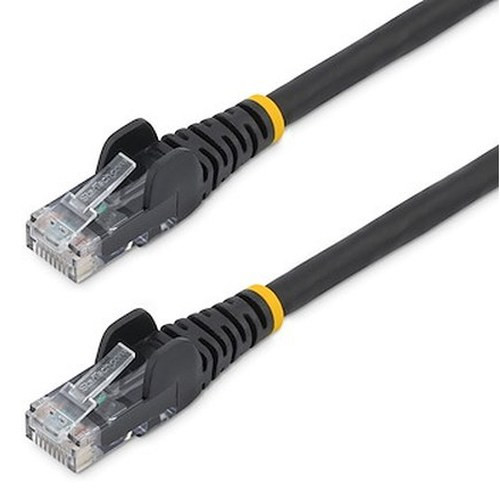

StarTech N6LPATCH15BK 15ft LSZH Cat6 Ethernet Cable - Black

Overview

The StarTech N6LPATCH15BK is a 15-foot, black, LSZH (Low Smoke Zero Halogen) Cat6 Ethernet patch cable. It's designed for network installations where cable safety and performance are critical, such as in data centers, public buildings, or industrial environments. This cable supports up to 100W of PoE power delivery, making it suitable for powering high-demand devices like PTZ cameras or wireless access points directly over the network cable. The N6LPATCH15BK ensures reliable data transmission up to 250 MHz.

Compatibility

This Cat6 cable is compatible with all standard RJ-45 network devices and infrastructure, including:

  • Network switches supporting 10/100/1000 Mbps or 10 Gigabit Ethernet.
  • IP cameras, NVRs, and other surveillance equipment requiring network connectivity.
  • Workstations, servers, and routers.
  • Devices requiring high PoE power delivery, up to 100W via IEEE 802.3bt Type 4.
It adheres to TIA/EIA-568-B.1-2001 T568B wiring standards.

Installation Notes

The cable jacket is constructed from Low Smoke Zero Halogen (LSZH) material, which is crucial for installations in plenum spaces or areas with strict fire safety regulations, as it produces minimal smoke and no corrosive halogenated compounds when exposed to fire. The 24 AWG wire gauge ensures good conductivity for data transmission and power delivery. Operating and storage temperatures are rated from 0°C to 80°C (32°F to 176°F), with humidity tolerance from 0%RH to 95%RH.

What's in the Box

  • 1x N6LPATCH15BK 15ft LSZH Cat6 Ethernet Cable - Black
Specifications
Cable Rating: CAT6 - 250 MHz
Maximum Cable Length: 160ft/55m
Wire Gauge: 24 AWG
Cable OD: 6 mm
Product Length: 15.0 ft [4.6 m]
Product Width: 0.5 in [1.2 cm]
Product Height: 0.3 in [0.8 cm]
Weight of Product: 6.3 oz [178.0 g]
PoE Support: 100W
PoE Standard: IEEE 802.3bt Type 4
Connector A: RJ-45
Connector B: RJ-45
Operating Temperature: 0C to 80C
Storage Temperature: 0C to 80C
Humidity: 0%RH ~ 95%RH
Cable Jacket Material: Low Smoke Zero Halogen
Wiring Standard: TIA/EIA-568-B.1-2001 T568B
Cable Impedance: 100 ohms 15%
Max DC Resistance: 14 ohms per 1000 ft
Pair to GND Capacitance: 330 pF per 328 ft
Mutual Capacitance: 5.6 nF per 1000 ft
Propagation Delay Skew: 45 ns per 328 ft
Certifications: ETL Verified
Warranty: Lifetime
Brand: StarTech
MPN: N6LPATCH15BK
Type: Ethernet Cable
Type: Ethernet Cable
Color: Black
Connectivity: Ethernet
Power: 100W
