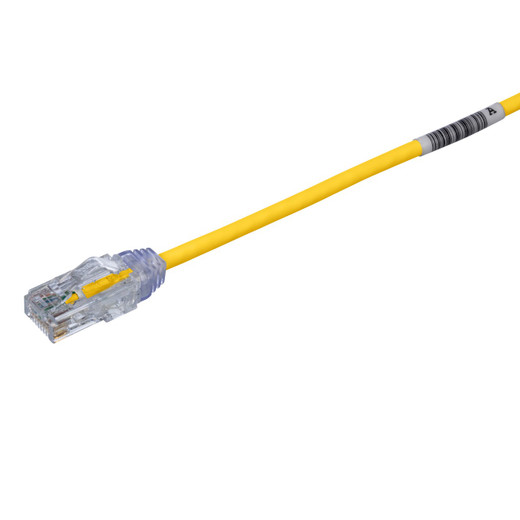

Panduit UTP28SP15YL TX6-28 Cat 6 28 AWG UTP Patch Cord, 15 ft, Yellow
High-density data center and IDF/MDF installations demand thinner patch cords to maintain airflow and cable-management capacity. Panduit's UTP28SP15YL TX6-28 patch cord delivers full Cat 6 performance in a 0.150-inch diameter profile—30% thinner than standard 24 AWG cords—letting you route more connections through the same pathways while keeping bundles manageable. The patented tangle-free latch prevents snags during moves, adds, and changes, and the integrated RapidID barcode simplifies port mapping without aftermarket labeling. Built for 10/100/1000BASE-T and limited-distance 10GBASE-T deployments, it supports IEEE 802.3bt Type 3 and Type 4 PoE (up to 90W), making it suitable for high-power edge devices.
Key Features
- 28 AWG stranded copper construction reduces bundle diameter by ~30% vs. 24 AWG for improved airflow and pathway fill
- Patented tangle-free latch design prevents hook snags and ensures fast, one-hand release during MACs
- Pre-installed RapidID barcode enables instant port documentation via Panduit RapidID software—no manual labeling
- Centered de-embedded plug with integral pair manager maintains signal integrity across 1–250 MHz
- 100% factory-tested for wire map, NEXT, and return loss; exceeds ANSI/TIA-568.2-D and ISO 11801 Class E specifications
- CM/LSZH dual-rated jacket meets NEC Article 800 plenum alternatives and low-smoke requirements for international deployments
- Supports IEEE 802.3af/at/bt Type 3 and Type 4 PoE (up to 90W) for high-power cameras, access points, and LED lighting
The TX6-28 line addresses a persistent problem in high-density patching: standard 24 AWG cords consume too much space in horizontal cable managers and vertical wire guides, forcing installers to oversize pathways or accept poor airflow. At 0.150 inches (3.8 mm) in diameter, the UTP28SP15YL fits approximately 50% more cords in the same 2-inch D-ring or ladder rack compared to conventional Cat 6 patch cords. Stranded 28 AWG conductors maintain flexibility for tight-radius bends around patch-panel edges, and the centered de-embedded plug geometry ensures the internal pair manager aligns correctly with the RJ45 jack—critical for maintaining the 55 dB minimum NEXT margin required by TIA-568.2-D at 100 MHz. Every cord ships with factory test results verifying compliance across all four pairs, so you can deploy with confidence in link budgets up to 100 meters for 1000BASE-T and the shortened channel limits (typically 33–55 meters) allowed for 10GBASE-T over Cat 6.
In access-control and IP surveillance installations, PoE budget planning often determines patch-cord selection. The UTP28SP15YL's CM/LSZH jacket and 28 AWG conductors meet the DC loop resistance limits in IEEE 802.3bt Table 104-5, ensuring you can deliver up to 71.3W (Type 4, Class 8) at the powered device over a 15-foot cord without exceeding the 12.5Ω channel resistance ceiling. This makes the cord suitable for multi-radio 802.11ax access points, 4K PTZ cameras, and LED site-lighting controllers that draw 60–90W. The tangle-free latch uses a recessed, low-profile boot that rides over adjacent cords during extraction instead of catching on neighboring latches—a feature that cuts MAC time by roughly 40% in fully populated 48-port panels. RapidID barcodes are printed on the plug boot in both linear and 2D formats, compatible with iOS and Android scanning apps as well as Panduit's RapidID port-mapping software; simply scan the cord at each end during installation to auto-populate your DCIM or cable-management database with port IDs, MAC addresses, and VLAN assignments.
Because the cord is wired to be compatible with both T568A and T568B termination schemes, it integrates into mixed-standard environments without polarity concerns—pin 1 maps to pin 1 regardless of pair-color assignment at the patch panel. The 15-foot length is a common choice for cross-connect fields and vertical riser patching between floor switches and intermediate distribution frames. Pan-Net is Panduit's commercial copper connectivity sub-brand, carrying the same performance warranties and cULus third-party verification (UL File E129886) as Panduit's flagship lines. For integrators managing NEC Article 800 compliance in retrofit projects, the dual CM/LSZH rating lets you use the same SKU in both plenum-substitute and international low-smoke applications, reducing inventory complexity.
