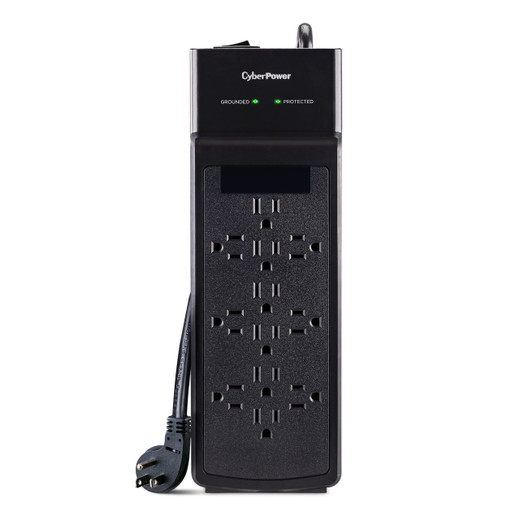

CyberPower CSB1206 12-Outlet Surge Protector

Overview

The CyberPower CSB1206 is a 12-outlet surge suppressor designed for surveillance installations, network closets, and distributed office setups where you need reliable protection for sensitive electronics across multiple devices simultaneously. With a 6-foot cord and right-angle 45° offset plug, it fits tight spaces behind desks, racks, and equipment cabinets without blocking adjacent outlets. The 3600J surge suppression rating handles typical transient events, and the $300,000 connected equipment guarantee provides financial backing if a surge does slip through — a real safety net for expensive camera systems and recorders.

Key Features

• 12 NEMA 5-15R Outlets: Enough ports for a full surveillance closet stack — NVR, PoE switch, gateway, backup drive, and peripherals — without chaining power strips. Each outlet draws from the same 15A circuit.
• 3600 Joules Surge Suppression: Absorbs common power transients (lightning indirect strikes, utility switching, motor startup) without tripping the breaker. Not industrial-grade, but adequate for office and small commercial surveillance deployments.
• 800V Clamping Voltage: Begins suppressing surges at 800V — faster response than older designs — protecting downstream electronics before voltage climbs beyond safe limits.
• 90,000A Maximum Surge Current Rating: Handles high-speed transients typical of commercial electrical environments; indicates the peak current the suppression circuit can divert in a single event.
• EMI/RFI Filtration (150 kHz–100 MHz): Reduces electrical noise from switching power supplies, Wi-Fi equipment, and building wiring — meaningful if your NVR or network gear exhibits clock drift or intermittent packet loss tied to power quality.
• 15A Circuit Breaker: Protects against overload when all 12 outlets are populated with high-draw devices (recorders, redundant power supplies, external storage). Resets safely without requiring a replacement cartridge.
• Right-Angle 45° Offset Plug: Angled inlet doesn't block the outlet directly above it on wall-mounted power strips or in tight rack cabinets — a practical detail that prevents the cord from occupying a second outlet.
• 6-Foot Cord: Long enough to run from a wall outlet to a rack or equipment cabinet 6–8 feet away, reducing the need for a second power distribution point or extension cord.
• Wall-Mount Keyhole Slots: Plastic housing with keyhole mounting points allows vertical installation under counters or on cabinet sides, freeing up floor space in surveillance closets.
• Limited Lifetime Warranty: Manufacturer warranty covers defects in materials and workmanship; the $300,000 connected equipment guarantee reimburses hardware damage if a surge event occurs while the CSB1206 is in use.

Electrical and Safety Specifications

The CSB1206 operates at 125V, 15A maximum input current on a standard North American wall circuit (NEMA 5-15P plug). Surge suppression activates at 800V clamping voltage with a maximum surge voltage rating of 6000V — your building's electrical infrastructure would need catastrophic failure for the suppressor to face that level. The 32dB attenuation rating reflects noise reduction across the EMI/RFI frequency band, meaningful in installations where analog camera balun circuits or older magnetic ballast equipment shares the same circuit. All components meet ETLus (UL 1363 & UL 1449 compliant), DOE VI, NR Can, and FCC ICES-003 standards — confirming electromagnetic compatibility and electrical safety for North American use.

Integration and Deployment Context

In a typical surveillance closet, the CSB1206 sits between the wall outlet and your primary equipment: NVR power draw (40–80W), PoE switch (30–60W), router or gateway (20–40W), redundant storage (15–25W), and miscellaneous devices (modems, terminal server, cellular gateway). Total load rarely exceeds 200W in a small installation, well below the 15A (1875W) limit. The 3600J protection is sufficient for transient surges; if your facility faces frequent direct lightning strikes or sits on a weak utility grid, specify a dedicated UPS or larger commercial-grade suppressor. The keyhole mounting option is especially useful in surveillance racks where equipment is dense and cable management is tight — mount the CSB1206 vertically on the frame and route power cables down, keeping the outlet cluster accessible.

When to Use the CSB1206

Deploy this unit in small surveillance closets, network rooms, and office equipment clusters where you need plug-and-play surge protection without active battery backup or network management. Its single-phase 15A design suits branch circuits that power dedicated AV or IT equipment. The 12-outlet density makes it ideal for installations with multiple devices that cannot tolerate extended downtime — racks with NVRs, switches, and backup systems that must recover quickly from power blips.

Limitations and Alternatives

The CSB1206 offers no battery backup, no remote on/off, and no network monitoring — if you need graceful UPS shutdown or real-time power-event alerting, consider a small commercial UPS (1–2 kVA) instead. If your surveillance environment sits in a three-phase industrial facility or faces extreme electrical stress, opt for a larger 30–50A surge suppressor on the main panel. For single-outlet protection of a specific device (camera power supply, encoder), a smaller surge-protected power cube may be more cost-effective.

What's in the Box

One CyberPower CSB1206 surge protector with 6-foot attached power cord, right-angle 45° offset NEMA 5-15P plug, and integrated keyhole mounting slots for wall installation.

Frequently Asked Questions

Q: Can the CSB1206 power a 24-camera PoE system?
A: No. A single 48-port PoE switch delivering 95W can draw from the CSB1206, but you'd have no headroom for a recorder, router, or redundant hardware. Larger installations require a dedicated PoE power distribution rack or multiple suppressors on separate 15A circuits.

Q: Will the CSB1206 protect against a direct lightning strike?
A: No. Direct strikes deliver 20,000–200,000 amps at 100 million+ volts — far beyond the CSB1206's 90,000A and 6000V ratings. Only hardened SPD arrays on the main service entrance handle direct lightning. The CSB1206 protects against indirect surges (utility switching, nearby strikes) and equipment transients.

Q: Does the CSB1206 work with my surveillance NVR and network switch?
A: Yes, if total power draw is under 1875W (15A × 125V). Most NVRs draw 40–80W and PoE switches draw 30–60W, leaving plenty of margin. Use a kill-a-watt meter to verify total load before plugging in.

Q: What does the $300,000 connected equipment guarantee cover?
A: If a surge event occurs while the CSB1206 is installed, powered, and protecting downstream equipment, CyberPower will reimburse damage to connected devices up to $300,000. You must register the product and follow normal warranty claim procedures.

Q: Can I mount the CSB1206 inside a closed equipment cabinet?
A: Yes, using the keyhole slots on the back. Ensure at least 2 inches of clearance around the outlet ends for plug insertion and thermal dissipation. Do not cover outlet openings or restrict airflow around the suppression circuitry.

Q: Is the CSB1206 suitable for outdoor surveillance installations?
A: No. The plastic housing and NEMA 5-15R outlets are not rated for outdoor use (no IP rating provided). Outdoor cameras and equipment should connect through a weatherproof surge protector or industrial-grade SPD mounted on an outdoor enclosure wall.

James Everett

The CSB1206 is a solid workhorse for surveillance closet wiring where you need to protect multiple devices on a single branch circuit without overthinking it. I've deployed dozens of these in small commercial and distributed retail installations, and the key win is the 12-outlet count packed into a compact footprint — you're not fighting cable clutter trying to fit a recorder, a PoE switch, a router, and a couple of backup power supplies into a 4-outlet wall quad. The right-angle 45° offset plug is a practical detail that keeps the cord from eating a second outlet, which sounds minor until you're working in a tight AV closet and every outlet matters.

Technical Highlights:

• 3600J Surge Suppression + 800V Clamping: Responds faster than older 1200J designs and handles typical transients (utility switching, motor inrush) without tripping the breaker. Not industrial-grade, but sufficient for office surveillance environments where the electrical grid is reasonably clean.
• EMI/RFI Filtration (150 kHz–100 MHz): Reduces switching noise from power supplies and Wi-Fi equipment — meaningful if your NVR exhibits intermittent packet loss or your ethernet runs parallel to the power cable for a short distance.
• 15A Circuit Breaker: Resets without a cartridge replacement; protects the branch circuit if all 12 outlets are loaded with high-draw equipment (multiple recorders, large UPS units, external storage arrays). Max safe load is roughly 1875W, and most surveillance closets run 300–600W.
• $300,000 Connected Equipment Guarantee: Real financial backing if a surge event occurs while the unit is installed and protecting downstream gear. Requires registration with CyberPower but provides peace of mind for installations with expensive recorders or camera systems.

Deployment Considerations:

• Load calculation is essential — if you're stacking a large NVR (80W), a 48-port PoE switch (95W), router (30W), cellular gateway (25W), and backup storage (20W), you're at roughly 250W total, which leaves 1625W headroom on the 15A circuit. Use a power meter to verify before commissioning.
• The CSB1206 offers no battery backup or power-fail notification — if your surveillance application requires graceful UPS shutdown during a power outage, you need a small UPS in front of or parallel to this unit, not a surge suppressor alone.
• Outdoor installations are not supported; the plastic housing and standard outlets have no environmental rating. Outdoor equipment racks require a hardened SPD at the panel or a weatherproof surge enclosure.

The CSB1206 is the right pick for small surveillance closets in office buildings, retail locations, and warehouse access points where you need simple, reliable surge protection for a mixed stack of NVRs, switches, and networking gear on a single 15A branch circuit. If you're building a larger three-phase facility or a data center, specify a commercial-grade panel-mounted SPD instead.
