Description

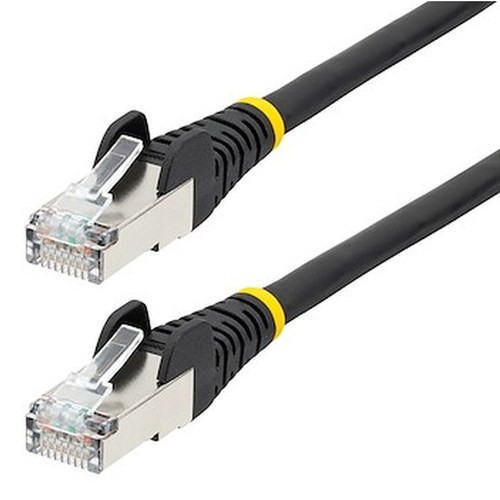

StarTech NLBK-12F-CAT6A-PATCH 12ft Cat6a LSZH Ethernet Cable

Overview

This 12-foot black StarTech NLBK-12F-CAT6A-PATCH cable provides a reliable, high-performance connection for network devices. Its Low Smoke Zero Halogen (LSZH) jacket makes it suitable for installations where fire safety and minimal smoke emission are critical, such as in data centers, public buildings, or industrial environments. The cable supports 10 Gigabit Ethernet speeds up to 500MHz, ensuring it can handle demanding network traffic and power delivery requirements.

Compatibility

This Cat6a cable is backward compatible with Cat5e and Cat6 networks but is engineered for the higher bandwidth demands of Cat6a. It is suitable for connecting network devices such as IP cameras, network switches, servers, workstations, and NVRs that require 10Gbps connectivity. The 100W PoE++ support ensures it can reliably deliver power to compatible devices over the Ethernet cable, eliminating the need for separate power supplies for devices like high-power wireless access points or PTZ cameras.

Installation Notes

The cable features 27 AWG stranded copper conductors for flexibility and durability, and 50-micron gold-plated RJ45 connectors for optimal signal integrity. It is rated for operation between 0°C and 50°C (32°F to 122°F) and can be stored between -20°C and 60°C (-4°F to 140°F). The LSZH jacket material is designed to emit minimal smoke and no corrosive halogenated compounds when exposed to high heat or fire.

What's in the Box

  • 1x 12ft Cat6a LSZH Ethernet Cable - Black
Specifications
Cable Length: 12.0 ft [3.7 m]
Cable Rating: CAT6a - 10Gbit/s
Cable Jacket Material: Low Smoke Zero Halogen
Wire Gauge: 27 AWG
Conductor Type: Stranded Copper
Connector Type: RJ-45
Connector Plating: 50-micron gold-plated
Performance Frequency: 500MHz
Data Rate: 10Gbps
PoE Support: 100W PoE++
Operating Temperature: 0C to 50C
Storage Temperature: -20C to 60C
Operating Humidity: 0% ~ 85% RH
Color: Black
Cable Outer Diameter: 0.2 in [5.7 mm]
Product Weight: 4.9 oz [140 g]
Certifications: ANSI/TIA-568.2-D
Warranty: Lifetime
Brand: StarTech
MPN: NLBK-12F-CAT6A-PATCH
Type: Ethernet Cable
Connectivity: Ethernet
Power: 100W
