Viking 12 Line Ring Shaper/Booster - RG-212

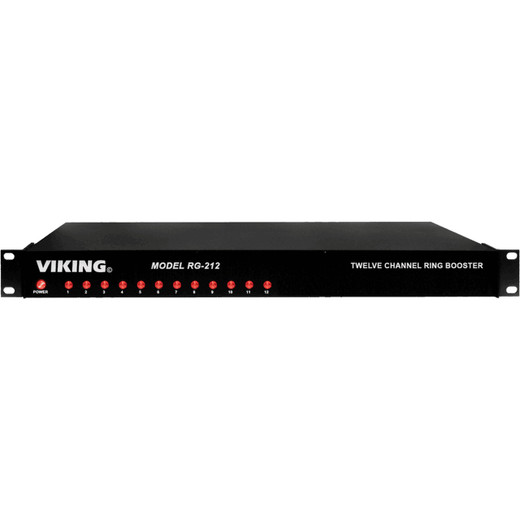

Viking Electronics RG-212 12-Line Ring Shaper / Booster

The Viking Electronics RG-212 is a rack-mountable ring generator built to restore reliable ringing on up to 12 analog PABX extensions, FXS ports, or long-loop analog lines where the PBX or VoIP gateway can no longer drive the load. If you've troubleshot dead-ring complaints on distant analog stations or overloaded FXS ports, the RG-212 (often searched as RG 212) addresses the root cause directly — insufficient or malformed ring voltage at the terminal device.

Key Features

• 12-Line Capacity via Dual RJ-21x Connectors: Two RJ-21x female connectors handle all 12 lines in a single cable connection per side — no punch-down blocks or individual RJ-11 patching required. On a 25-pair telco punchdown, this maps cleanly to a standard 66 or 110 block feed.
• 90 VAC Nominal Ring Output: The generator produces a full 90 VAC nominal ring signal — well above the 40–70VAC many FXS ports output under load — ensuring compliant ringing on standard 2-wire analog sets even at the far end of long in-building runs.
• Sine Wave Ring Shape: Ring signal is delivered as a true sine wave. Devices sensitive to trapezoidal or clipped ring waveforms (some older POTS phones, ring detectors, and caller-ID units) operate reliably without false triggers or missed rings.
• 55 VAC @ 4 REN Ring Load: Rated for 4 REN aggregate load per line — enough to drive a standard analog desk phone plus a ringer or two on the same pair without voltage collapse.
• Wide Incoming Ring Detection: 20–150 VAC: Accepts ring signals across a broad 20–150 VAC range, so it works downstream of virtually any PBX card, FXS gateway, or ATA regardless of how high or low the source ring voltage is set.
• 1U 19-Inch Rack Form Factor: At 483mm × 241mm × 44mm (19" × 9.5" × 1.75"), the RG-212 occupies a single rack unit in a standard 19-inch equipment rack — no shelf adapter needed, no wasted space.
• UL-Listed 120V AC Adapter Included: Ships with a UL-listed 120V AC / 15V AC 2.2A adapter. No separate power procurement needed for standard North American installations.
• 2-Year Limited Warranty: Covered by Viking's 2-year limited warranty — a reasonable coverage window for a passive analog signal conditioning device in a telecom closet.

Integration and Compatibility

The RG-212 sits inline between the PBX or VoIP gateway FXS output and the analog station wiring. It is compatible with any analog telephone interface that generates an AC ring signal in the 20–150 VAC detection range — covering legacy Nortel, Avaya, Mitel, and Cisco CUCM analog cards as well as modern Grandstream, Patton, and AudioCodes ATAs. Operating temperature is rated 0°C to 32°C (32°F to 90°F) with 5–95% non-condensing humidity — designed for conditioned telecom rooms and wiring closets, not outdoor or uncontrolled environments.

For smaller installations requiring only 4 lines, Viking offers the RG-204 in the same product family. For installations needing 24 lines, the Viking Electronics telephone accessories line includes the RG-224. If you're planning ring distribution across a larger analog PABX system, pair the RG-212 with a telephone infrastructure guide to size line counts correctly before committing to hardware.

Frequently Asked Questions

Q: What is the maximum ring load the RG-212 can drive per line?

A: The RG-212 is rated for 4 REN (Ringer Equivalence Number) per line at 55 VAC. A standard analog telephone draws approximately 1 REN, so up to four typical POTS devices can be rung on a single line within spec.

Q: Does the RG-212 work with VoIP ATAs and FXS gateways, or only traditional PBX hardware?

A: Yes. The incoming ring detection range of 20–150 VAC covers the output of modern VoIP ATAs, FXS gateways, and analog telephone adapters from most major vendors, in addition to traditional PBX analog line cards.

Q: What connectors does the RG-212 use?

A: The RG-212 uses two RJ-21x female connectors (one input side, one output side), which are standard 50-pin Amphenol-style telco connectors compatible with 25-pair telco cables used in most structured cabling installations.

Q: What are the installation environment requirements for the RG-212?

A: The RG-212 is rated for 0°C to 32°C (32°F to 90°F) operating temperature and 5% to 95% non-condensing humidity. It is designed for climate-controlled telecom closets and equipment rooms — not for outdoor or unheated spaces.

Q: What is the warranty on the RG-212?

A: The RG-212 carries a 2-year limited warranty from Viking Electronics.

Q: Does the RG-212 require a separate power supply?

A: No. A UL-listed 120V AC / 15V AC 2.2A power adapter is included in the box. No additional power procurement is needed for standard North American installations.

Marty Allison

The spec I always check first on a ring booster is the incoming detection range — the RG-212 accepts 20–150 VAC, which means it will lock onto virtually any source ring signal I've encountered in the field, from anemic FXS card output right up to aggressive legacy PBX ring generators. That wide window is what makes this unit genuinely plug-and-play across mixed telephony environments.

Technical Highlights:

• 90 VAC Nominal Output: Restores full-amplitude ringing at the station regardless of how much voltage was lost over the cable run — critical on runs over 300 feet where drop across the pair can reduce ring voltage below device threshold.
• Dual RJ-21x Connectors: Both the input and output terminate on 50-pin Amphenol connectors, so a single telco cable swap connects or disconnects all 12 lines — no punch-down rework, no per-line patching during moves or replacements.
• 1U 19-Inch Rack Mount: At 483mm × 44mm, the RG-212 drops straight into any standard 19-inch rack. At 3.2kg (7 lbs) with the adapter, it's light enough that a single mounting screw pass is all you need before cabling.

Deployment Considerations:

• Operating temperature tops out at 32°C (90°F) — adequate for a conditioned telecom room, but don't install this in an unventilated IDF closet that spikes above that in summer. Check the room's thermal profile before committing the rack space.
• The 4 REN per-line rating is aggregate on the line pair — if you're driving party lines or shared-extension configs with multiple ringers in parallel, add up the REN values before assuming the rating covers you.

The RG-212 is the right call for a hotel PBX retrofit or a campus building where the gateway FXS cards are undersized for the station count — anywhere you have a defined 12-line analog block that needs ring restoration without rewiring the distribution frame.
