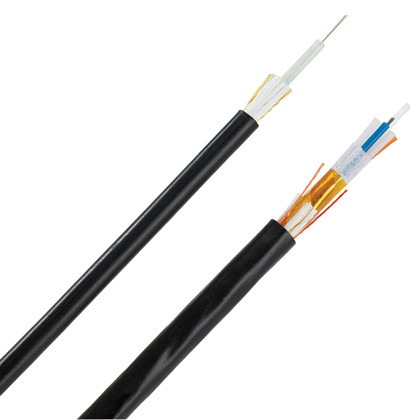

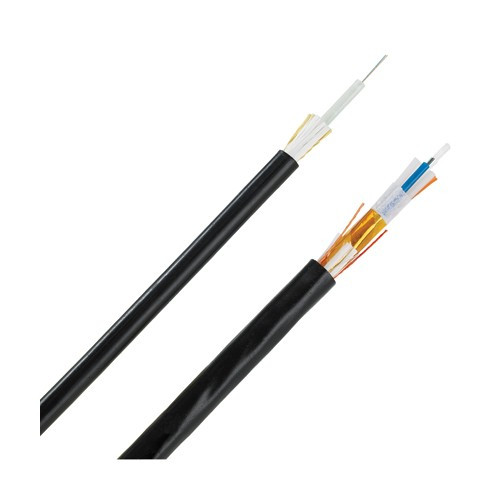

Panduit FOCLX12 Opti-Core OM3 12-Fiber Indoor/Outdoor Cable

Panduit's FOCLX12 Opti-Core cable delivers 12-strand OM3 multimode fiber in a loose tube design engineered for continuous indoor-outdoor runs. Built for security backbone installations, datacenter interconnects, and campus distribution where a single cable must cross environmental boundaries, this LSZH-rated design eliminates the cost and failure points of building-entry splice vaults. The gel-free construction simplifies termination and mid-span access while maintaining the mechanical protection loose tube geometry provides against thermal cycling and moisture ingress. With 50μm OM3 cores rated for 10 Gigabit Ethernet to 300 meters and 40/100GbE to shorter distances, this cable future-proofs surveillance NVR uplinks, access control server farms, and inter-building trunks without the indoor/outdoor transition points that plague tight-buffered designs.

Key Features

• OM3 50/125μm laser-optimized multimode fiber (10GbE to 300m, 40GbE to 100m per IEEE standards)
• 12-fiber count supports six duplex links or structured reserve capacity for phased deployments
• Loose tube construction isolates fibers from jacket stress during temperature swings (-40°C to +70°C operating range typical for outdoor-rated loose tube)
• LSZH (Low Smoke Zero Halogen) jacket meets IEC 60332-1 and 60754 for indoor air-handling spaces and international installations
• Gel-free tube design: no messy compounds during termination, faster cleanup, reduced contamination risk at fusion splice points
• UV-resistant black PE outer jacket for direct-burial and aerial applications without additional conduit (check local codes)
• Indoor/Outdoor rating eliminates building-entry transition vaults and associated labor/hardware costs
• Stranded loose tube geometry maintains <0.05 dB/km additional attenuation under mechanical load (vs. <0.1 dB/km for tight-buffered under equivalent stress)
• Central strength member handles installation tension up to rated load
• Panduit Opti-Core family compatibility: integrates with Panduit's cassette systems, pre-terminated solutions, and structured cabling standards

Technical Depth - Loose Tube OM3 Performance: OM3 multimode fiber uses laser-optimized 50-micron core geometry to support 10GBASE-SR to 300 meters and 40GBASE-SR4/100GBASE-SR10 to 100 meters, making this cable suitable for security system backbone links that aggregate dozens of IP cameras onto centralized NVR/VMS platforms or connect access control panels across multi-building campuses. Unlike OM1/OM2 legacy fiber (limited to 1Gb speeds or 10Gb at sharply reduced distances), OM3 delivers the bandwidth headroom required when a single 12-fiber cable must serve mixed traffic: surveillance video, access control polling, intercom VoIP, and building automation protocols over converged infrastructure.

The loose tube construction—where individual fibers float within gel-free buffer tubes rather than being tightly bound to the jacket—provides critical mechanical isolation. When the cable traverses a building wall and experiences a 40°C temperature differential between conditioned indoor space and summer rooftop heat, the outer jacket expands and contracts independently of the glass fibers. Tight-buffered cables transmit that thermal stress directly to the fiber, increasing microbending losses and long-term attenuation. Loose tube designs maintain <0.05 dB/km added loss under rated tension and temperature cycling, preserving link budgets on 200+ meter runs where every tenth of a dB matters for 10Gb optics operating near sensitivity thresholds.

Panduit's gel-free tube formulation replaces the traditional petroleum-based flooding compound with a water-blocking superabsorbent polymer integrated into the tube wall. For installers, this means no hand cleaner or solvent wipes during mid-span breakouts, faster fusion splice prep (30 seconds vs. 2+ minutes cleaning gel), and zero risk of compound contamination on fusion splicer electrodes or connector endfaces. In cold-weather pulls, gel-filled cables stiffen dramatically below 0°C, increasing installation tension and risking fiber damage; gel-free designs remain pliable across the full operating range.

Deployment Context - Indoor/Outdoor Security Applications: Security integrators typically encounter three scenarios where continuous indoor-outdoor fiber is code-required or cost-justified:

1. Building-to-building camera backbone: A 12-fiber cable run from a central server room to a remote building supports six duplex 10Gb links. At 300-meter OM3 reach, this covers most campus security installations without intermediate active equipment. Deploy one link for the current NVR uplink (aggregating 20-30 IP cameras), reserve a second for access control/intercom, and leave four dark pairs for future 25Gb NVR upgrades or wireless backhaul as the system expands. The indoor/outdoor rating lets the cable exit through a simple bulkhead fitting rather than a NEMA-rated splice enclosure with pigtails and panels—saving $800-1,200 per building entry point.

2. Parking structure/perimeter lighting pole runs: Outdoor PTZ cameras and WiFi APs mounted on 20-30 foot poles require fiber for distance and lightning isolation. A loose tube cable pulled through rigid conduit to the pole base, then up through the pole interior, handles the thermal cycling (summer radiant heating of black-painted poles can reach 70°C surface temperature) without the microbend losses that plague tight-buffered vertical runs. The LSZH jacket rating becomes critical when the conduit enters a parking structure's interior—most jurisdictions classify parking garages as indoor spaces requiring low-smoke materials, even if the source is outdoors.

3. High-rise datacenter/NOC vertical feeds: Multi-tenant buildings with rooftop equipment and below-grade server rooms use loose tube fiber for the 100+ meter vertical shaft runs. The cable transitions from air-conditioned riser to unconditioned penthouse to outdoor rooftop without requiring environmental splice points. LSZH compliance satisfies the National Electric Code 770.113(B) requirement for cables in vertical risers serving multiple floors, and many AHJs (authorities having jurisdiction) require LSZH in any shared-space raceway regardless of NEC interpretation.

The UV-resistant jacket formulation passes ASTM G154 accelerated weathering (equivalent to 20+ years outdoor exposure in temperate climates) without cracking or chalking. For aerial spans between buildings or direct-burial runs under parking lots, the cable can be installed without innerduct in many soil conditions (consult Panduit's installation guide for crush-load ratings and burial depth requirements). This reduces per-foot material cost and simplifies future locates compared to innerduct-in-conduit systems.

Why This Spec Combination Matters: The FOCLX12's combination of OM3 bandwidth, 12-fiber count, and gel-free loose tube construction addresses the specific pain point in modern IP security installations: the need to cross indoor/outdoor boundaries with a single pull while meeting fire codes and maintaining 10+ year service life under thermal stress. Integrators bidding projects with 8-12 building-to-building fiber links can stock a single Panduit SKU instead of juggling indoor tight-buffered for risers, outdoor loose tube for campus runs, and transition hardware at every building entry. The LSZH rating provides automatic compliance in the mixed-use spaces (parking structures, corridors connecting to exterior doors, air-handling plenums) where inspectors most commonly flag non-compliant cable.

For datacenter and NOC applications, the OM3 specification eliminates the upgrade-obsolescence trap of OM1/OM2 legacy fiber: your Day 1 deployment may only need 1Gb links, but when you migrate to 10Gb NVRs or 25Gb SAN storage, the cable plant supports the upgrade with only optics and switch changes. The 12-fiber count provides six duplex links—enough for redundant uplinks, out-of-band management, and future growth without a second cable pull.

Panduit's Opti-Core family offers matching pre-terminated assemblies, cassette modules, and splice-on pigtails, so this bulk cable integrates seamlessly into structured cabling systems rather than forcing field terminations on every strand. Whether you're running 250 meters across a campus quad to a remote building or dropping 80 meters down a high-rise riser shaft, the FOCLX12 handles the environmental transitions, fire code requirements, and bandwidth demands of professional security and IT infrastructure without compromise.
