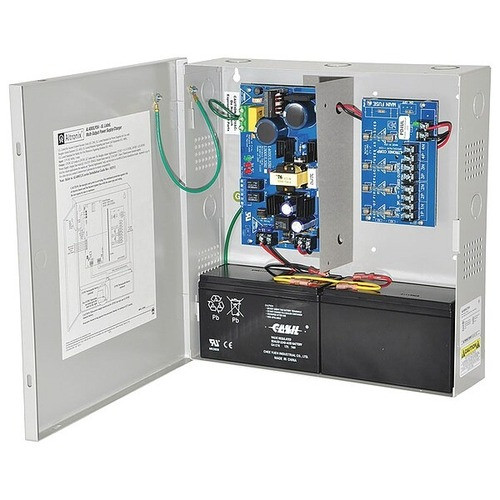

Altronix 12@4A/24@3A/4FUSE OUT - AL400ULPD4R

Altronix AL400ULPD4R Power Distribution Module

Overview

The Altronix AL400ULPD4R is a versatile power distribution module designed to efficiently power multiple surveillance devices from a single power source. It provides selectable 12VDC or 24VDC outputs, each protected by an individual fuse, simplifying installation and ensuring device isolation. This unit is ideal for consolidating power for cameras, access control readers, or other low-voltage security equipment in a central location, reducing wiring complexity and maintenance overhead. The AL400ULPD4R model is specifically engineered for reliable operation in commercial security deployments.

Compatibility

This power distribution module is compatible with a wide range of low-voltage DC power supplies, including Altronix models such as the AL1012, AL1024, AL1224, and many others that provide 12VDC or 24VDC output. It is designed to distribute power to multiple devices that require individual fused protection, such as various IP cameras (e.g., Axis P32-series domes, Hikvision DS-2CD series bullets), access control panels, and intercom systems. Ensure the total current draw of connected devices does not exceed the capacity of the primary power supply or the individual fuse ratings.

Installation Notes

The AL400ULPD4R requires a single 12VDC or 24VDC input from a compatible power supply. Each of the four outputs can be individually fused using the included fuse holders and a selection of fuses (1A, 2A, 3A, 5A). The module features screw terminals for power input and output connections, facilitating secure wiring. It is designed for mounting within standard equipment racks or enclosures. Proper ventilation should be maintained around the module and its associated power supply to prevent overheating.

What's in the Box

• 1x AL400ULPD4R Power Distribution Module
• 4x Fuse Holders
• 1x Set of Fuses (1A, 2A, 3A, 5A)
