Altronix 12/24VDC@4A/16 FUSE/FAI 115VAC - EFLOW4NX16

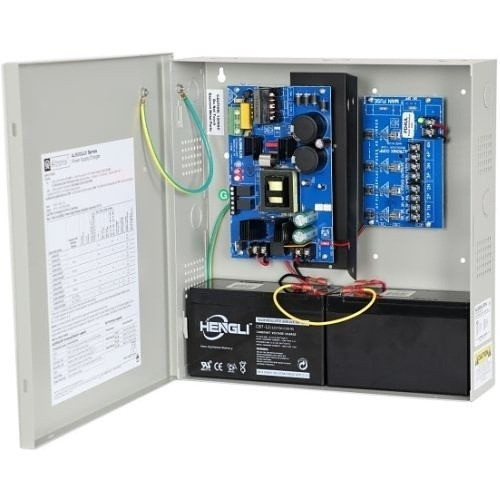

Altronix EFLOW4NX16 12/24VDC@4A/16 FUSE/FAI 115VAC

Overview

The Altronix EFLOW4NX16 is a versatile power distribution module designed to provide regulated 12VDC or 24VDC output from a 115VAC input. It features 16 fused outputs, each individually protected, making it suitable for powering multiple surveillance devices like cameras, access control readers, or network equipment in a centralized location. This unit is ideal for installations where a single AC input needs to be distributed efficiently and safely to numerous low-voltage components, ensuring each device receives stable power and protection against overcurrent conditions.

Compatibility

This power distribution unit is designed to work with a wide range of low-voltage surveillance and security devices that require either 12VDC or 24VDC input. It is compatible with systems utilizing standard 115VAC power input. Specific compatibility extends to devices such as IP cameras, PTZ cameras, access control panels, door strikes, and network switches that operate within the specified voltage and current limits. The fused outputs allow for granular protection, making it suitable for mixed loads where different devices may have varying current draw requirements.

Installation Notes

Installation requires a qualified technician familiar with electrical wiring. The unit accepts a standard 115VAC input and provides 12VDC or 24VDC output, selectable via a jumper. Each of the 16 outputs is protected by a 4A fuse, which can be replaced with fuses of lower amperage if required by specific devices. Ensure that the total current draw from all 16 outputs does not exceed the unit's 4A total output capacity. Proper ventilation should be maintained around the unit to prevent overheating. Wiring should adhere to local electrical codes.

What's in the Box

• 1x Altronix EFLOW4NX16 Power Distribution Module
• 16x 4A Fuses (pre-installed)
• 1x Installation Manual
