Description

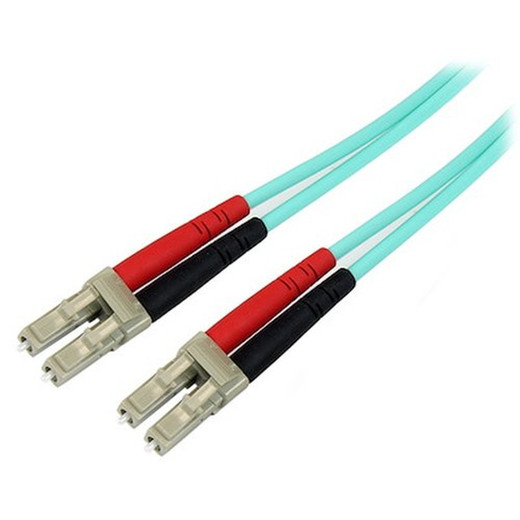

StarTech A50FBLCLC10 10M OM3 Multimode Fiber Optic Cable

Overview

The StarTech A50FBLCLC10 is a 10-meter (33 ft) OM3 multimode fiber optic patch cable designed for high-speed network connections. It features LC/LC-UPC duplex connectors on both ends, making it suitable for direct connections between network devices like switches, servers, or transceivers in data centers, enterprise networks, or telecommunications infrastructure. The aqua-colored, 3mm OD jacket is Low Smoke Zero Halogen (LSZH) rated, providing enhanced safety in environments where fire safety is critical. This cable supports full-duplex data transfer rates up to 100 Gbps, ensuring high bandwidth for demanding applications.

Compatibility

This cable is compatible with any network equipment utilizing LC duplex connectors and requiring OM3 multimode fiber. This includes, but is not limited to, 1Gbps, 10Gbps, 40Gbps, and 100Gbps Ethernet connections, SFP, SFP+, QSFP+, and QSFP28 transceivers. It is designed for use with devices that specify 50/125 micron fiber core and 125 micron cladding.

Installation Notes

The cable operates within a temperature range of -20°C to 60°C (-4°F to 140°F) and can be stored within the same range. It is designed for environments with up to 90% relative humidity (non-condensing). The LSZH rating ensures it meets safety standards for plenum spaces or areas with strict fire codes. Ensure connectors are clean before insertion to maintain signal integrity.

What's in the Box

  • 1x 10m OM3 LC/LC-UPC Duplex Multimode Fiber Optic Cable
Specifications
Cable Length: 10 m
Fiber Size: 50/125
Cable Jacket Material: Low Smoke Zero Halogen
Fire Rating: LSZH Rated
Fiber Classification: OM3
Maximum Data Transfer Rate: 100Gbps
Cable Rating: 1Gbps / 10Gbps / 40Gbps / 100Gbps
Type: Multi Mode
Wavelength: 850nm
Connector A: Fiber Optic LC Duplex
Connector B: Fiber Optic LC Duplex
Operating Temperature: -20C to 60C
Storage Temperature: -20C to 60C
Humidity: 0~90% RH
Color: Aqua
Cable OD: 3 mm
Product Length: 10.0 m
Weight of Product: 139.0 g
Warranty: Lifetime
Brand: StarTech
MPN: A50FBLCLC10
Connectivity: Ethernet
Q&A
Reviews
Have Questions?

StarTech 10M (33FT) OM3 Multimode Lc/lc-upc Fiber - A50FBLCLC10

$43.04
$34.99
