Description

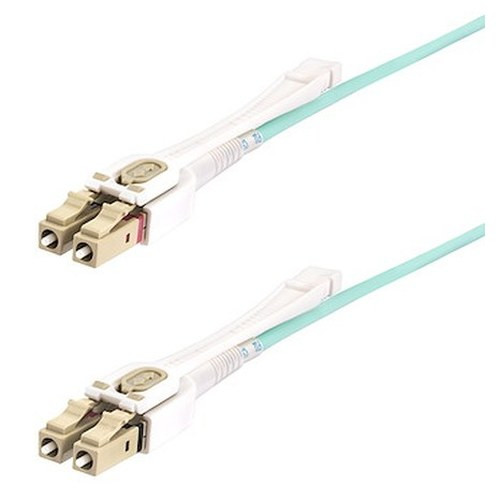

StarTech 450FBLCLC10PP 10M LC OM4 Multimode Fiber Optic Cable

Overview

This 10-meter (32.8 ft) StarTech 450FBLCLC10PP is an OM4 multimode fiber optic patch cable designed for high-speed data transmission in demanding network environments. Featuring LC duplex connectors on both ends and a 50/125µm fiber core, it's engineered to support data rates up to 100Gbps, making it suitable for backbone connections, data centers, and high-bandwidth surveillance systems. The aqua-colored, Low Smoke Zero Halogen (LSZH) jacket ensures safety in plenum spaces and reduces the risk of toxic fumes in case of fire.

Compatibility

This cable is compatible with any network device or transceiver utilizing LC duplex multimode fiber connectors. It is suitable for use with 1Gbps, 10Gbps, 40Gbps, and 100Gbps Ethernet connections. Specific applications include connecting network switches, routers, servers, and storage devices that require OM4 performance. It is ideal for extending network reach where copper cabling is insufficient or impractical, particularly in enterprise and data center deployments.

Installation Notes

The cable has a minimum bend radius of 3cm (unloaded) and 6cm (loaded) to prevent signal degradation. Operating and storage temperatures range from -20°C to 60°C, with humidity tolerance from 0% to 90% RH. The LSZH jacket material is critical for installations in plenum-rated areas, adhering to fire safety codes.

What's in the Box

  • 1x 10m LC Duplex OM4 Multimode Fiber Optic Cable
Specifications
Cable Length: 10 m (32.8 ft)
Fiber Size: 50/125
Cable Jacket Material: Low Smoke Zero Halogen
Fire Rating: LSZH
Fiber Classification: OM4
Maximum Data Transfer Rate: 100Gbps
Cable Rating: 1Gbps / 10Gbps / 40Gbps / 100Gbps
Maximum Cable Length: 32.8 ft [10 m]
Type: Multi Mode
Wavelength: 850nm / 1300nm
Connector A: Fiber Optic LC Duplex
Connector B: Fiber Optic LC Duplex
Operating Temperature: -20C to 60C
Storage Temperature: -20C to 60C
Humidity: 0~90% RH
Color: Aqua
Product Length: 10.0 m
Product Width: 1.2 cm
Product Height: 0.0 mm
Weight of Product: 68.5 g
Modal Bandwidth: 4700MHz/km
Attenuation: 2.4dB/km (850nm), 0.6dB/km (1300nm)
Cable OD: 2.9mm
Bend Radius Loaded: 6cm
Bend Radius Unloaded: 3cm
Warranty: Lifetime
Brand: StarTech
MPN: 450FBLCLC10PP
Connectivity: Ethernet
Connectivity: Ethernet
