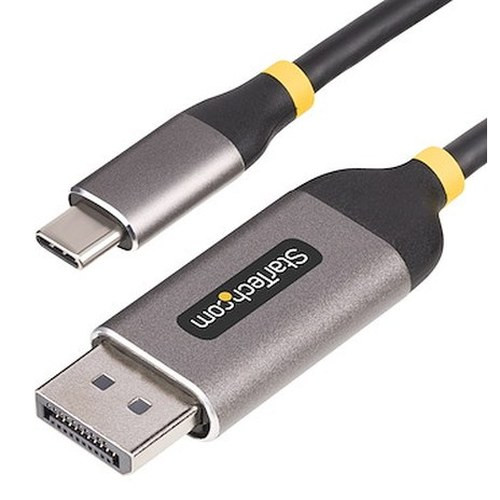

StarTech 142-USBC-DP-8K-10F USB-C to DisplayPort 1.4 8K Cable — 10ft (3m)

Overview

The StarTech 142-USBC-DP-8K-10F is a 10ft (3m) USB-C to DisplayPort 1.4 cable built for workstations, control rooms, and AV-over-IP installations where 8K 60Hz output is required without a converter box in the signal chain. Running 32.4Gbps of bandwidth across the full 3-meter run, it connects USB-C source devices directly to DisplayPort monitors, projectors, or video walls — no adapter, no active converter, no extra power supply. If you're deploying USB-C workstations alongside DisplayPort displays and need a cable that actually handles the bandwidth modern 8K panels demand, this is the spec to evaluate.

At 3.2 oz (92g), it's light enough to not add pull stress to laptop or mini-PC USB-C ports — a real consideration in control room setups where cables stay plugged in permanently. Operating tolerance runs from -20°C to 70°C, so it holds spec in unconditioned equipment rooms and mobile command environments, not just climate-controlled server closets.

Key Features

• 8K 60Hz Maximum Resolution: DisplayPort 1.4 at 32.4Gbps delivers the full 7680×4320 signal without compression artifacts — meaningful for video walls and forensic review monitors where sub-8K panels are being replaced with 8K displays. No need to step down to 4K just because of cable limitation.
• 32.4Gbps Bandwidth: This is the full HBR3 (High Bit Rate 3) allocation for DisplayPort 1.4, which also means 4K 144Hz or 5K 60Hz are within spec on compatible displays — useful if your monitoring station mixes refresh-rate-sensitive applications alongside surveillance feeds.
• DisplayPort 1.4 Protocol: Native DP 1.4 support means the cable passes DSC (Display Stream Compression) signaling when the source and sink support it, enabling higher-resolution output over a single cable without signal degradation in the cable itself.
• USB-C Input Connector: Connects to any USB-C port with DisplayPort Alt Mode support — laptops, workstations, and compact PCs that output video over USB-C. No driver install required; signal negotiation happens at the port level.
• 10ft (3m) Run Length: Long enough to route from a wall-mounted mini PC or NUC-style device to a display across a desk or control console without a signal repeater. Passive cables at this bandwidth spec are distance-limited, so 3m is a practical ceiling — plan accordingly for longer runs.
• 2-Channel Audio Pass-Through: Stereo audio rides the same cable as video, eliminating a separate audio cable run to the display. Useful when monitors with built-in speakers handle intercom or alert audio in control room environments.
• -20°C to 70°C Operating Range: Handles unconditioned spaces — vehicle-mounted displays, outdoor command trailers, or warehouse control stations that aren't always air-conditioned. Storage tolerance extends to -40°C, so it ships and stores through cold-chain environments without cable jacket degradation.
• 3-Year Manufacturer Warranty: StarTech backs the 142-USBC-DP-8K-10F with a 3-year warranty — longer than the typical 1-year coverage on commodity AV cables, which matters for installations where cable replacement means pulling finished walls or conduit.

Integration and Compatibility

The 142-USBC-DP-8K-10F (often searched as 142 USBC DP 8K 10F) works with any host device that supports DisplayPort Alt Mode over USB-C — including Thunderbolt 3 and Thunderbolt 4 ports, which are backward-compatible with DP Alt Mode signaling. On the display side, any DisplayPort 1.4 input accepts the cable directly. If your display has an older DP 1.2 input, the cable will still connect and signal, but maximum throughput will step down to DP 1.2 spec (21.6Gbps, capping resolution at 4K 60Hz). Verify your display's DP version before assuming 8K output.

For control room builds pairing USB-C workstations with large-format video surveillance monitors, this cable eliminates the USB-C to DP adapter that typically becomes a failure point in long-term installations. It also integrates cleanly with AV distribution hardware that accepts DP 1.4 inputs for matrix switching or video wall controllers.

If your runs exceed 3 meters, evaluate active optical or fiber-based USB-C to DisplayPort extenders — passive copper at HBR3 speeds does not reliably extend beyond this distance without signal degradation. For shorter desktop runs under 6ft, a shorter USB-C display cable in the same family reduces cable clutter.

Frequently Asked Questions

Q: Does the StarTech 142-USBC-DP-8K-10F support 4K at higher refresh rates, or only 8K 60Hz?

A: Yes. The 32.4Gbps bandwidth (DisplayPort 1.4 HBR3) supports 4K at up to 144Hz and 5K at 60Hz on compatible source and display combinations. The 8K 60Hz rating is the maximum ceiling — lower resolutions at higher refresh rates are within spec.

Q: Will this cable work with a Thunderbolt 3 or Thunderbolt 4 port?

A: Yes. Thunderbolt 3 and 4 ports support DisplayPort Alt Mode over USB-C, so the 142-USBC-DP-8K-10F will work as a video output cable. Thunderbolt data functions are not passed through — this is a display signal cable only.

Q: What is the warranty on the 142-USBC-DP-8K-10F?

A: StarTech provides a 3-year manufacturer warranty on this cable.

Q: Can this cable handle runs longer than 10 feet at 8K?

A: No. At 32.4Gbps (HBR3), passive copper cables are physically limited in reliable run length. The 142-USBC-DP-8K-10F is rated for 3 meters (9.8ft). For longer distances at 8K, an active fiber optic USB-C to DisplayPort solution is required.

Q: Does this cable carry audio as well as video?

A: Yes. The cable supports 2-channel stereo audio pass-through alongside the video signal. A separate audio cable is not required when the display accepts audio over DisplayPort.

Q: Is the 142-USBC-DP-8K-10F compatible with older DisplayPort 1.2 monitors?

A: The cable will physically connect and negotiate a signal with DP 1.2 displays, but bandwidth will step down to DP 1.2 spec (21.6Gbps maximum). This caps output at 4K 60Hz — 8K output requires a DP 1.4 input on the display.

Marty Allison

The spec that actually matters on the 142-USBC-DP-8K-10F is the 32.4Gbps bandwidth figure — that's full HBR3, and it's what separates this cable from the pile of USB-C to DP cables that top out at DP 1.2 speeds and quietly cap your output at 4K. If you're provisioning control room workstations where operators will drive 8K forensic review monitors or high-refresh 4K displays from USB-C laptop docking positions, the DP 1.4 spec on this cable is the non-negotiable baseline.

Technical Highlights:

• 32.4Gbps (HBR3) Bandwidth: Full DisplayPort 1.4 allocation — supports 8K 60Hz, 4K 144Hz, or 5K 60Hz depending on display capability. No active components means no additional failure points in the signal path.
• 3-Meter Passive Copper Run: At HBR3 speeds, 3 meters is the practical engineering limit for passive cable. This cable is spec'd and built for exactly that distance — don't try to extend it with a coupler at these bandwidth levels.
• -20°C to 70°C Operating Range: Tested for environments outside conditioned server rooms. Vehicle integration, portable command posts, and warehouse display stations all fall within this operating window.

Deployment Considerations:

• Verify DisplayPort Alt Mode is active on the USB-C port at the source device — not all USB-C ports output video even if they accept the connector. Check the host device spec sheet before deployment.
• DP 1.2 displays will limit output to 21.6Gbps regardless of what the cable can carry — if 8K is the requirement, the display input version is equally critical to confirm.

This cable is the right fit for fixed control room workstations where an operator drives a single 8K or high-refresh 4K forensic display from a USB-C equipped workstation or docking station — a clean, no-converter signal path at the correct distance for that application.
