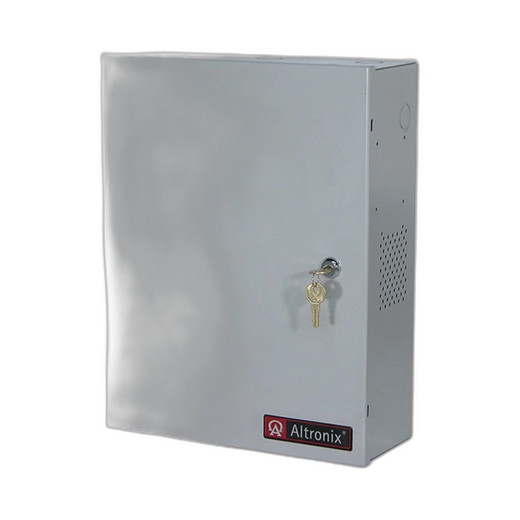

Altronix 10A@24VDC LED CABLE BD 120V - AL1024RLB

Altronix AL1024RLB 10A@24VDC LED CABLE BD 120V

Overview

The Altronix AL1024RLB is a 24VDC power distribution module designed to provide 10 amps of total current for multiple surveillance devices. It simplifies wiring by consolidating power delivery for cameras, encoders, or other low-voltage equipment, reducing installation complexity and potential points of failure. This unit is ideal for installations where a single, reliable power source needs to be distributed efficiently to a group of devices, such as in a control room or a central equipment rack.

Compatibility

This module is designed to work with standard 24VDC powered surveillance equipment. It is compatible with a wide range of IP cameras, analog cameras, encoders, and other low-voltage devices that draw a combined current not exceeding 10 amps. It is commonly integrated into systems utilizing Altronix power distribution chassis or as a standalone power distribution point for various security and automation devices.

Installation Notes

The AL1024RLB requires a 120VAC input to its associated power supply (sold separately) to generate the 24VDC output. The module itself provides 10 fused outputs, each rated for 3A maximum. It is recommended to distribute the load evenly across outputs to avoid exceeding individual fuse limits or the total 10A capacity. Ensure proper ventilation around the power supply and distribution module to prevent overheating. Wiring should adhere to local electrical codes and best practices for low-voltage systems.

What's in the Box

• 1x AL1024RLB 10A@24VDC LED Cable Board
• 1x Installation Manual
