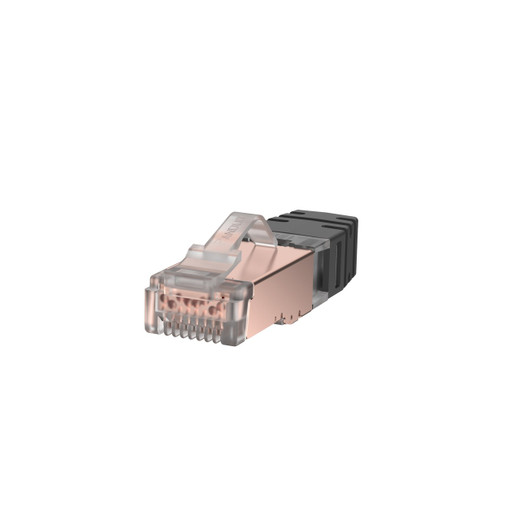

Panduit SPS688-C Cat 6 Shielded Modular Plug 100-Pack

Panduit SPS688-C Pan-Plug® Category 6 Shielded Modular Plug

The Panduit SPS688-C is a Category 6 shielded modular plug engineered for field termination of 4-pair, 24-26 AWG solid or stranded shielded twisted pair cable in commercial data networks, access control installations, and structured cabling deployments. Designed to terminate cables with conductor insulation up to 0.040" (1.02mm) and jacket diameters up to 0.250" (6.35mm), this 100-pack delivers consistent performance across enterprise LAN, IP surveillance, and building automation systems where shielded connections are required for EMI/RFI immunity. The Pan-Plug® platform combines a robust contact design rated to 2500 mating cycles with Panduit's patented tangle-free latch, reducing snag-related failures during moves, adds, and changes.

Key Features

• Category 6 performance for 1000BASE-T and PoE/PoE+ applications up to 100 meters
• Shielded construction for installations requiring EMI/RFI protection or compliance with screened cable standards
• Accepts 24-26 AWG solid or stranded conductors with insulation diameters up to 0.040" (1.02mm)
• 2500 mating cycle rating—5× the industry-standard 500-cycle minimum—for high-turnover patch environments
• Patented tangle-free latch prevents snags during cable pulls and provides tool-free release in congested patch panels
• Clear housing enables visual verification of conductor seating and wire map before crimping
• UL 94 V-0 flammability rating for plenum and riser cable terminations
• 100-pack carton quantity reduces per-plug cost on mid-size deployments (10–50 drops)

The SPS688-C employs a two-piece contact design where the cable jacket, drain wire, and foil shield terminate under a separate crimp point from the conductor contacts. This architecture maintains 360° shield continuity to the plug body, critical for shielded Cat 6 channels operating near VFDs, elevator controls, or high-power PoE++ devices where coupled noise can degrade link margins. The plug's staggered-load-bar geometry guides all eight conductors into their respective IDC slots without pre-sorting, and the clear polycarbonate body allows installers to verify correct wire map (T568A/B) and full conductor insertion before applying the crimp tool. Maximum jacket diameter of 0.250" (6.35mm) accommodates both standard 23 AWG installation cable and thicker 24 AWG stranded patch cord—a flexibility that's essential when field-fabricating custom-length jumpers for cabinet interconnects or equipment racks where pre-made lengths create service loops.

Integrators terminating IP cameras, access readers, and intercom endpoints in industrial or transit environments will appreciate the 2500-cycle contact durability specification, which translates to roughly 5 years of monthly reconnections or 10+ system reconfigurations without measurable contact degradation. The patented tangle-free latch uses a low-profile release tab that sits flush with the plug body and pivots on an over-center hinge, eliminating the hook-and-snag failures common to traditional RJ45 latches when cables are pulled through crowded ceiling grids or conduit. This design also enables one-handed disconnect in tight spaces—a real advantage when swapping PoE injectors or troubleshooting link faults in equipment cabinets where adjacent cables obscure the latch. Clear housing provides immediate visual feedback on seating depth, a non-negotiable requirement for security integrators who need to verify termination quality before sealing access panels or handing off to commissioning teams.

Compliant with FCC Part 68 dimensional requirements and IEC 60603-7 performance standards, the SPS688-C meets the mechanical and electrical specifications for Cat 6 channels tested to TIA-568.2-D. UL 94 V-0 flammability rating qualifies the plug for use with plenum-rated (CMP) and riser-rated (CMR) cable assemblies in air-handling spaces and vertical pathways, closing the compliance gap that emerges when non-rated plugs are field-installed on rated cable. RoHS compliance ensures compatibility with procurement requirements for federal, state, and municipal projects subject to environmental directives. The 100-pack format strikes a practical middle ground for integrators running 10–50 drops per site: enough volume to avoid mid-job reorders, compact enough to stock in service vehicles without tying up capital in bulk inventory.
