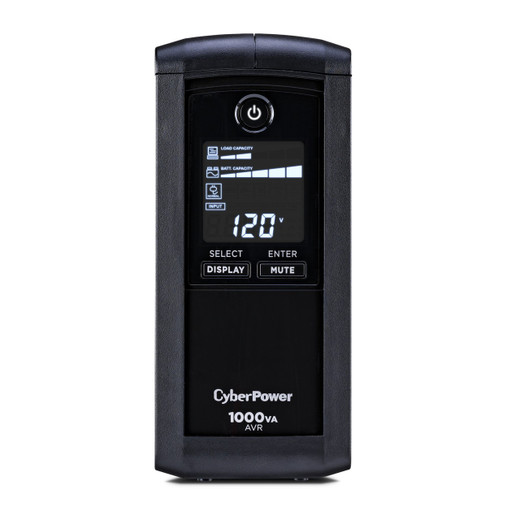

CyberPower CP1000AVRLCD 1000VA Mini-Tower UPS
Overview
The CyberPower CP1000AVRLCD is a 1000VA mini-tower uninterruptible power supply (UPS) designed to protect networked surveillance systems, NVRs, switches, and edge computing hardware against power loss and electrical transients. This unit delivers 600 watts of backup power via simulated sine wave output, with line-interactive topology that activates battery support only when input voltage drifts outside safe limits—meaning you're not draining the battery on every minor fluctuation. The CP1000AVRLCD is purpose-built for small-to-medium surveillance deployments where you need continuous uptime for recording, network connectivity, and graceful shutdown without data loss.
Key Features
- Dual Battery/Surge Outlet Architecture: 5 outlets supply both battery backup and surge protection when AC fails; 4 additional outlets provide surge-only protection for non-critical devices. This split design prevents you from wasting battery capacity on stateless equipment (displays, workstation peripherals) and reserves runtime for your NVR, PoE switch, and modem. At half load (300W), you get 9 minutes of battery—enough time to shut down gracefully or let recordings buffer to disk.
- Automatic Voltage Regulation (AVR): Corrects input voltage sags (90–142 VAC) without drawing battery, so a brownout won't trigger a switchover and consume runtime. Critical in areas with unstable utility power or where HVAC load-shedding causes common dips.
- Multifunction LCD Display: Real-time output voltage, load percentage, battery capacity, and runtime remaining—no guessing whether you're near capacity or how much backup time is left. The display updates continuously and is readable without software.
- Data Line Protection: RJ45, RJ11, and coaxial (RG6) protection built into the unit. Network lines, telephone/alarm lines, and video coax connections are shunted through surge arrestors, preventing transients from entering your NVR or switching fabric via media lines. Many surveillance power failures are actually data-line surges—this addresses that blind spot.
- User-Replaceable Battery: 12V/9Ah sealed lead-acid battery (model RB1290) can be swapped in the field without a technician visit. Typical recharge time is 8 hours, and the unit ships with the battery pre-installed. Over its 3-year warranty period, battery degradation is expected; having a spare on hand eliminates downtime when capacity drops below usable thresholds.
- Redundant Notification Channels: USB HID, serial dry contact relay, and Ethernet connectivity allow integration with building management systems, NVR alerts, and SNMP monitoring. A single power event can trigger local relay closure, email notification via Ethernet, and USB-initiated software shutdown—ensuring no unattended system is left guessing about what happened.
Integration and Compatibility
The CP1000AVRLCD connects to surveillance infrastructure via standard power distribution (NEMA 5-15P input with 6 ft cord) and Ethernet, serial, and USB interfaces. Supplied software, PowerPanel Personal, is a free download and integrates with Windows/Linux environments; it can schedule automatic shutdowns on battery depletion or alert administrators via email when AC is lost. The unit is ENERGY STAR certified and complies with UL1778, cUL, FCC Class B, and RoHS directives—meeting enterprise procurement and safety standards.
The 1080 Joules of surge suppression capacity handles transient spikes from switch-mode power supplies, PoE injectors, and network equipment; the 4 ms transfer time on battery switchover is fast enough that Ethernet and USB sessions remain uninterrupted. For multi-camera surveillance systems running 24/7, this unit acts as a bridge between utility outages and graceful application shutdown, preventing data corruption or lost video segments.
Physical and Environmental
The mini-tower form factor (3.9 x 11 x 14 inches, 15 lbs) sits under a desk, in a rack shelf, or beside an NVR without dominating floor space. Operating temperature range of 32–104°F (0–40°C) covers most server rooms and equipment enclosures; avoid placing the unit in direct sunlight or next to heat sources, as ambient temperature above 100°F accelerates battery aging.
What's in the Box
Each CP1000AVRLCD ships with the UPS unit itself, a pre-installed 12V/9Ah sealed lead-acid battery, a 6-foot NEMA 5-15P input power cord, and documentation including the warranty statement and serial number record. The replacement battery (RB1290) is sold separately.
Frequently Asked Questions
Q: How long can the CP1000AVRLCD keep an NVR running?
A: At full load (600W), approximately 2 minutes; at half load (300W), approximately 9 minutes. Most enterprise-class NVRs draw 150–250W steady-state, yielding 15–25 minutes of runtime. This window is typically sufficient for orderly shutdown and graceful disk flush on modern platforms. For longer runtimes, consult larger capacity units in the CyberPower family.
Q: Does the CP1000AVRLCD protect coaxial video cable?
A: Yes. The unit includes a coaxial (RG6) surge protection port. This safeguards against surges entering via analog or SDI video lines—a common failure mode in surveillance deployments where camera feeds originate outdoors or cross building grounds.
Q: Can I expand battery capacity by adding an external battery?
A: No. The CP1000AVRLCD is a sealed, standalone unit without external battery expansion ports. Runtime is fixed at the internal 12V/9Ah battery capacity. If extended runtime is required, upgrade to a larger-capacity CyberPower UPS model.
Q: What is the warranty coverage for the CP1000AVRLCD?
A: The unit includes a 3-year limited manufacturer warranty covering defects in materials and workmanship. Additionally, CyberPower provides a $350,000 lifetime Connected Equipment Guarantee, covering hardware damage to connected devices caused by power anomalies—subject to terms and conditions.
Q: How do I integrate the CP1000AVRLCD with my NVR or building automation system?
A: Via USB (HID-compliant for standard monitoring), serial dry-contact relay (closure on AC loss), or Ethernet for SNMP alerting. PowerPanel Personal software (free download) handles local Windows/Linux shutdown logic. For enterprise integration, the serial relay can trigger a PLC or BMS alert; Ethernet connectivity allows syslog or SNMP traps to a central monitoring station.
Q: What is the transfer time when the CP1000AVRLCD switches to battery?
A: 4 ms typical, which is fast enough that networked devices (cameras, PoE switches, NVRs) experience no loss of session or streaming continuity. This transfer time is critical for surveillance systems where brief hiccups can corrupt video buffers or drop recordings.
I've deployed dozens of CyberPower UPS units across surveillance facilities, and the CP1000AVRLCD remains my go-to for mid-tier NVR protection. The split outlet topology—5 battery-backed and 4 surge-only—is the spec most installers overlook, and it's exactly why this unit works. You're not wasting the 9-minute half-load runtime on a monitor or keyboard; that battery time is reserved for your recording appliance and network edge. The built-in RJ45, RJ11, and coaxial surge protection is equally underestimated. I've seen facilities lose entire recording chains because a lightning strike hit the video coax while AC was stable—the CP1000AVRLCD closes that door from day one.
Technical Highlights:
- Line-Interactive Topology with AVR: The unit does not consume battery on every minor voltage sag (90–142 VAC input range is corrected without switchover). In facilities with unstable utility, this feature alone can extend battery life by months because you're not triggering hundreds of micro-discharge cycles. Transfer time of 4 ms is imperceptible to Ethernet and video streams.
- Dual Outlet Architecture (5 battery + 4 surge): Prevents you from squandering 9 minutes of half-load runtime on peripherals. The 5 battery outlets are where your NVR, PoE switch, and modem go; the 4 surge-only outlets handle monitors, workstations, and printers. A 300W half-load scenario (typical for single NVR + switch) gives you 9 minutes—enough for graceful shutdown on most enterprise systems.
- 1080 Joules Surge Suppression with Multiline Protection: The coaxial, RJ45, and RJ11 ports are all surge-protected at the unit level. This is not a power-only UPS; it's a data-line protection device integrated with backup power. I've prevented more failures with the coax protection than with any other single feature.
- User-Replaceable 12V/9Ah Battery (RB1290): Battery degradation is inevitable after 3–5 years of service. The ability to swap the sealed lead-acid battery yourself (no technician call) saves thousands in service fees. 8-hour recharge time is standard for this capacity class.
Deployment Considerations:
- Do not place this unit in direct sunlight or near heat sources. Ambient temperature above 100°F accelerates battery aging significantly. In hot climates or server rooms without HVAC, monitor battery voltage quarterly and plan replacement cycles accordingly.
- The 2-minute full-load and 9-minute half-load runtime is adequate for NVR shutdown and graceful disk sync, but it is not a solution for 24-hour power loss. For extended blackouts, this unit buys time to alert on-call staff, not time to operate indefinitely. If your facility experiences frequent multi-hour outages, investigate larger-capacity units or hybrid solutions (UPS + generator handoff).
- RJ45 surge protection is present, but if your facility runs Cat6A or higher-speed data runs to remote PoE cameras, test the interface after installation to confirm no bandwidth loss from the surge arrestor. In rare instances, aggressive surge suppression can introduce mild insertion loss on Gbps links.
Position the CP1000AVRLCD as the foundation layer of your NVR power architecture in facilities where you have 1–4 cameras and a single recording appliance. It is not overkill for small retail, warehouse, or office deployments; it is precisely right-sized. For larger multi-NVR facilities, evaluate stacked units or a dedicated UPS distribution panel.
