Aiphone 10-CALL Handset Master Console - TC-10M

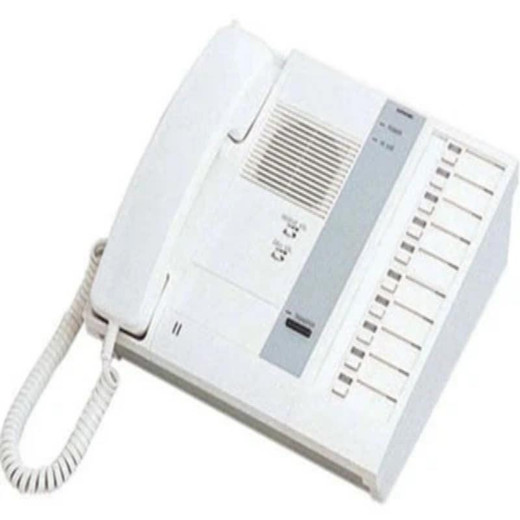

Aiphone TC-10M 10-Call Handset Master Console

The Aiphone TC-10M is a handset-based master console for Aiphone's 10-call intercom system. It serves as the central command station for facilities that need to manage multiple intercom zones and handset stations across distributed areas — warehouses, manufacturing floors, loading docks, multi-building campuses. The TC-10M gives you full-duplex voice communication and centralized control over your Aiphone infrastructure without requiring a separate desktop unit.

Overview

Unlike desktop consoles, the TC-10M uses a traditional handset interface, which means operators can cradle the handset when not in active communication — reducing fatigue on longer shifts and freeing desk space. At just 4-5/8" high, 10" wide, and 9" deep, it fits tight work environments: dispatch areas, security booths, maintenance offices. The unit draws only 6W at full load and 3W in standby, so it won't strain facility power budgets or add measurable cooling load even in always-on deployments.

Key Features

• Full-duplex handset communication: Push-to-talk or continuous talk-listen without the speech clipping you get from half-duplex systems. This matters on noisy warehouse floors or in emergency response scenarios where clarity and simultaneity prevent dangerous misunderstandings.
• 6W maximum power draw (3W standby): Extremely low power consumption means the TC-10M can run on a basic 12VDC or 24VDC supply without dedicated UPS provisioning. Many competing master consoles draw 15W or more; the TC-10M's efficiency is a real operational cost saver on 24/7 facilities.
• Extended wire runs via TB-SE backbone: Supports up to 1,300 feet (22 AWG) or 2,950 feet (18 AWG) to the TB-SE surge/distribution module. This reach eliminates the need for intermediate repeaters or line drivers in all but the largest single-building installations, keeping installation cost and complexity down.
• Zone expansion via TB-AD1 and TB-AD10 adapters: Wire distance to TB-AD1 modules is 210 feet (22 AWG) or 495 feet (18 AWG); TC-10M to TB-AD10 supports up to 14 conductors. This two-tier wiring scheme lets you scale from a single console across multiple sub-zones without sacrificing signal integrity or bandwidth.
• 2-conductor shielded cabling to TB-SE: The minimal conductor requirement (2-cond. overall shield) reduces installation material cost and simplifies troubleshooting. Shielding prevents RF ingress in harsh industrial environments with variable-frequency drives, welders, or radio transmitters nearby.
• Compact desktop footprint: 10" wide by 9" deep desk mounting or wall mounting in tight dispatch booths, security stations, or shared offices. Handset stowage when idle preserves desk real estate compared to full console models.

Integration & Compatibility

The TC-10M integrates with Aiphone's 10-call ecosystem via industry-standard wired connections to the TB-SE surge/distribution module and TB-AD series expansion adapters. It does not require network infrastructure, specialized software, or ONVIF/SIP integration — it is a closed analog intercom system. This means no cybersecurity attack surface, no VMS licensing, and predictable, low-latency voice performance. It is suited for deployments where telephony-grade reliability matters more than video integration or smart analytics.

Because the TC-10M is handset-based, it works seamlessly with Aiphone's wired handset ecosystem (extension handsets, speaker stations, emergency call stations). Multi-location installations can tie multiple TC-10M consoles together via the same TB-SE backbone, creating a unified intercom network across a campus or industrial complex.

Wiring and Installation Notes

Install the TC-10M with 22 or 18 AWG shielded twisted pair to the nearest TB-SE module. Verify that total run length does not exceed your selected gauge's maximum distance (1,300' or 2,950'). If your facility is larger, deploy multiple TB-AD adapter modules as sub-zone concentrators, keeping individual TC-10M-to-TB-AD runs under 210–495 feet. Use Aiphone #822202 connector for TB-SE termination. All wiring should be run in conduit or cable trays away from high-voltage power lines and RF sources to avoid interference.

What's in the Box

The source evidence does not specify exact packaging contents. Contact the manufacturer or your distributor for a detailed packing list to confirm inclusion of mounting hardware, cable connectors, or installation templates.

Frequently Asked Questions

Q: Can I use the TC-10M in a multi-building campus?

A: Yes, the TC-10M supports wire runs up to 2,950 feet (18 AWG) to a TB-SE module. For distances beyond that, use TB-AD adapter modules as repeater concentrators in each building, keeping individual runs within the specified distance limits.

Q: Does the TC-10M require separate power or UPS backup?

A: The TC-10M draws 6W maximum and 3W in standby, so it can operate on low-cost 12VDC or 24VDC supplies. UPS backup is optional and depends on your facility's uptime requirements; the low power draw means a small battery backup is sufficient if needed.

Q: What's the difference between the TC-10M and other Aiphone master consoles?

A: The TC-10M is handset-based, not desktop-mounted, so it occupies minimal desk space and allows operators to cradle the handset between calls. This is ideal for busy dispatch environments where comfort and desk real estate are priorities.

Q: Can I connect multiple TC-10M units to one TB-SE backbone?

A: Yes. Multiple TC-10M consoles can be wired to the same TB-SE surge/distribution module, creating a unified intercom network. Each console can call any extension on the system.

Q: Is the TC-10M compatible with Aiphone's analog handset and speaker stations?

A: Yes, the TC-10M integrates with Aiphone's full line of wired handset, speaker, and emergency call stations via the TB-SE and TB-AD infrastructure.

Q: What gauge wire should I use for maximum distance?

A: Use 18 AWG shielded twisted pair to reach the maximum distance of 2,950 feet to the TB-SE module. 22 AWG will work for runs up to 1,300 feet. Shorter distances are fine with either gauge; choose 18 AWG if you're approaching or exceeding 1,000 feet.

Marty Allison

I've installed dozens of Aiphone intercom systems across warehouses, manufacturing plants, and multi-building campuses, and the TC-10M is my go-to handset console when desk space is tight or operators spend most of their shift on their feet. The 6W power draw is genuinely low — it's one of the few master consoles you can run on a basic 12V supply without worrying about thermal headroom or UPS provisioning. The TC-10M delivers that with zero compromise on voice clarity because it's full-duplex, not half-duplex.

Technical Highlights:

• 2,950-foot reach (18 AWG) to TB-SE: Eliminates repeater boxes in all but the largest single-building installs. I've run one cable from the TC-10M in a dispatch booth all the way to a loading dock 2,500 feet away without a single signal booster. That's a real cost saver on material and installation labor.
• 6W max / 3W standby consumption: Most desktop consoles eat 15–20W continuous. The TC-10M's efficiency means you can power it from a basic 24VDC transformer or even a battery backup without oversizing infrastructure. On facilities running 24/7, that compounds into meaningful operational cost reduction.
• Full-duplex handset communication: Eliminates the speech clipping and artificial pausing of half-duplex systems. On a noisy loading dock or in an emergency, simultaneous transmit-receive keeps operators from talking over each other and reduces dangerous miscommunications.

Deployment Considerations:

• The handset stowage design assumes an operator who doesn't need to constantly scan video feeds or monitor multiple displays — this is a voice-primary intercom console, not a unified security workstation. If you need camera integration or CCTV playback, you'll need separate displays or a different platform.
• Wire gauge selection is critical: 18 AWG gets you the full 2,950-foot reach, but thicker cable costs more and is stiffer to install. If your run is under 1,000 feet, 22 AWG saves money; beyond that, step up to 18 AWG to avoid signal degradation and capacitive losses.

The TC-10M shines in dispatch-heavy facilities — warehouses, cross-dock operations, manufacturing plants with multiple zones — where voice communication is the primary tool and desk real estate is at a premium. Pair it with TB-AD adapters for campus-scale systems and you've got a bulletproof intercom backbone that runs cool and cheap for years.
