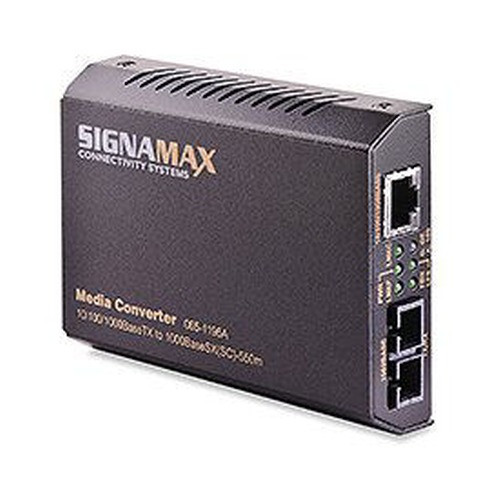

Signamax 065-1196AED 1000Base-SXED Media Converter

Overview

The Signamax 065-1196AED is a managed media converter designed to bridge the gap between copper Ethernet networks and fiber optic infrastructure. It supports 10/100/1000BaseT/TX copper connections and converts them to 1000BaseSXED multimode fiber, extending network reach up to 2 kilometers. This unit is ideal for extending network segments in industrial environments, large campuses, or connecting disparate network closets where copper limitations are a factor. The 065-1196AED utilizes SC connectors for its fiber interface.

Compatibility

This media converter is designed to interface with standard 10/100/1000BaseT/TX Ethernet ports found on switches, servers, and workstations. On the fiber side, it is compatible with 1000BaseSXED multimode fiber optic transceivers and cabling terminated with SC connectors. It functions as a transparent bridge, meaning it does not require specific software or driver installation on connected devices, ensuring broad compatibility with most network equipment supporting IEEE 802.3ab (Gigabit Ethernet over twisted pair) and IEEE 802.3z (Gigabit Ethernet over fiber) standards.

Installation Notes

The unit requires a 110V AC power source. Ensure the fiber optic cables are clean and free of debris before connecting to the SC ports to prevent signal degradation or damage. The maximum transmission distance over multimode fiber is rated at 2 kilometers, which is suitable for campus backbones or large facility interconnections. Verify that the connected copper port is auto-negotiating to Gigabit speeds for optimal performance.
